Description
This 10B heavy-duty connector housing is widely used in HE, HK, and other series of ferrules. The housing is made of die-cast aluminum with a painted finish. The overall color is gray, making it suitable for applications in engineering machinery, grinding machines, and hot runner machinery.
technical Specifications
Size
10B
Cable Entry
Cable to cable
Material
Aluminium die-cast
Colour
Grey
Lever Type
1 Lever
Material
Metal galvanized
Seal
NBR
Rated Temperature
-40...+125℃
Flammablity acc. To UL 94
V0
Protection Grade
IP65
Part Number
Thread Size
19300100756
M25
19300100757
M32
09300100752
PG21
09300100753
PG29
Material Adavantage
Die casting provides excellent forming accuracy and allows manufacturers to produce housings with complex shapes and precise dimensions. This helps ensure reliable sealing and makes the products easier to install while maintaining compatibility with different industrial connector systems.
Products overview
The housing is the high construction , which provides additional internal space for wiring and allows thicker cables or more complex insert combinations to be installed more conveniently. The top cable entry design with M25 thread enables vertical cable routing, making it suitable for control cabinets and industrial equipment where cables are guided from the top.
Material: Aluminium
Surface: Powder-coated
Color: Grey
Limited Temperature Range: -40°C to +125°C
Thread Type: M / PG
Products Description
Material and Protection
The housing is typically manufactured from die-cast aluminum with a powder-coated surface, offering excellent mechanical strength and resistance to vibration and impact. It is equipped with sealing components that help achieve IP65 protection, effectively preventing dust and water ingress in industrial environments.
Connection and Locking
This model is designed for 10B size heavy-duty connector systems and uses a single locking lever mechanism, which ensures a firm and reliable connection between the hood and the base housing while allowing quick installation and removal during maintenance.
Typical Applications
Heavy-duty connectors are widely used in industrial automation equipment, control cabinets and power distribution systems, as well as machine tools and automated production lines. They are also commonly found in sectors such as transportation equipment and energy systems. Due to their solid structure and reliable protection, these connectors can operate steadily even in industrial environments where vibration, dust, and moisture are common.
Excellent
service
efficient
team
quality
Assurance
Our warehouse & equipment
We are truly welcome your visiting!

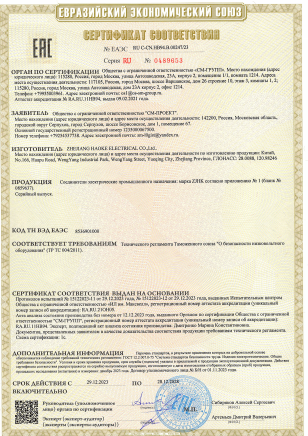

Our Certificate
