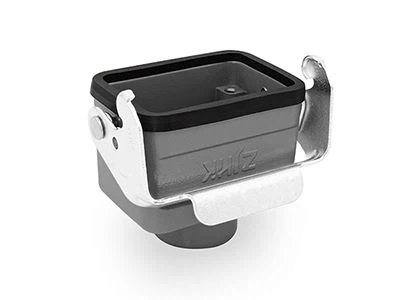

Cable to Cable 10B Heavy Duty Connector Housings
introduction
The Cable to Cable 10B heavy-duty connector housing is designed to create a secure connection between two cable assemblies in industrial electrical systems. This type of housing allows heavy-duty connectors to be used for direct cable-to-cable connections without the need for panel mounting, providing a flexible and efficient wiring solution.
Parameters
Cable to Cable Housing
Size
10B
Cable Entry
Cable to cable
Material
Aluminium
Colour
Grey
Lever Type
1 Lever
Material
Mental galvanized
Seal
NBR
Rated Temperature
-40...+125℃
Flammablity acc. To UL 94
V0
Protection Grade
IP65
Part Number
Thread Size
19300101750
M20
09300101751
PG16
Products Description
Key Characteristics
Direct cable-to-cable connection The housing enables two cable ends to be connected through the heavy-duty connector interface, making it suitable for applications where equipment or modules need to be linked directly. Robust construction for industrial environments Manufactured with durable materials, the housing offers strong mechanical protection and can withstand vibration, impact, and other demanding conditions typically found in industrial settings.
Technical Specifications
Material: Aluminium
Surface: Powder-coated
Colour: Grey
Limiting Temperature Range: -40°C to +125°C
Protection Rating: IP65 (according to IEC 60529, when connector is properly coupled)
Thread Type: M / PG
Packing and shipping
Packing
Before shipment, every product undergoes strict quality inspection. Approved items are packed individually to ensure proper protection during handling and transport. Each unit is labeled for identification, sealed in protective packaging, and finally arranged in cartons to keep the products safe and organized throughout the shipping process.
high quality
To meet different logistics requirements, we offer several shipping methods. Customers may choose international courier services such as FedEx or DHL, as well as dedicated transportation solutions by sea, land, or air. In most cases, orders are dispatched within one week after confirmation, allowing customers to receive their goods in a timely manner.
Our Warehouse & quipment
adapt inserts
HE-010-M
Attribute:Male
Rated Current:16A
Pins:10
Termination:Screw
HE-010-F
Attribute:Female
Rated Current:16A
Pins:10
Termination:Screw
HE-010-MC
Attribute:Male
Rated Current:16A
Pins:10
Termination:Crimping
HE-010-FC
Attribute:Female
Rated Current:16A
Pins:10
Termination:Crimping
application Scenarios
In integrated designs, transformers often exist as independently installable or replaceable modules. Heavy-duty connectors can be used to achieve this. Power connection between transformer module and main control cabinet Unified interface for auxiliary control and monitoring signals By integrating power and signal into the same connector, the number of interfaces can be effectively reduced, thereby improving the overall reliability of the system.
laser machine tools
During processing, laser machine tools require precise signal transmission and stable power supply between multiple modules, including the laser generator, CNC system, motion axes, cooling system, and auxiliary gas supply system. These operating environments often present adverse factors such as vibration, shock, dust, and oil contamination. Furthermore, some laser machine tools require rapid module replacement or maintenance based on processing needs.
