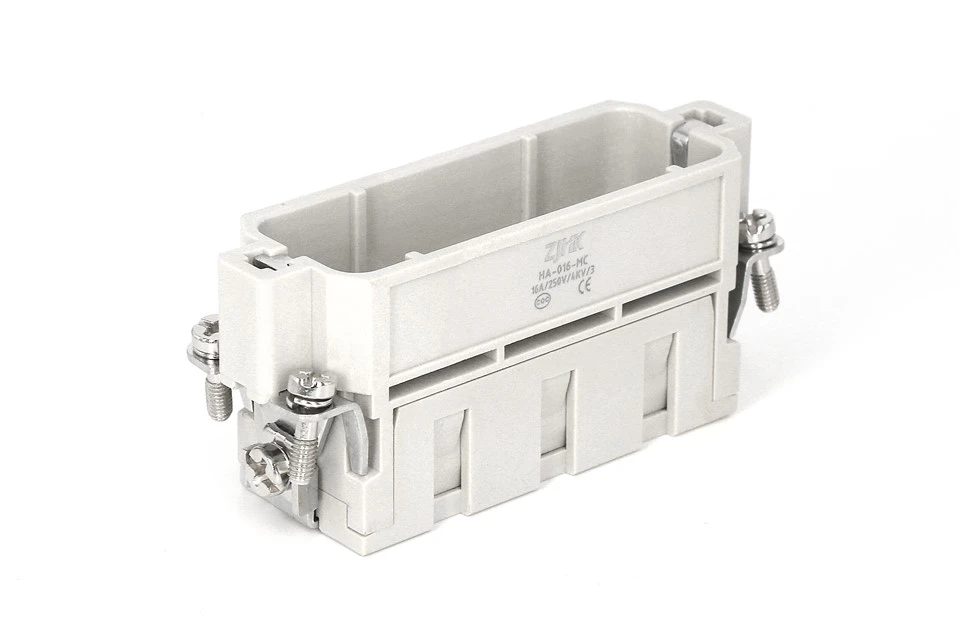

HA-016-MC
HA-016-MC is a kind of the HA heavy-duty connector series featuring crimp terminal termination that delivers stable electrical performance without heating. The joint is robust and withstands severe vibration, shock, elevated temperature and corrosion, making it ideal for harsh industrial environments. Rated at 16 A, it serves packaging, textile, automation and wind-power applications.
technical specification
Specifications
DIN EN 60 664/DIN EN 61 984
Number of contacts
16
Rated Current
16A
Rated Voltage
250V
Rated Impulse Voltage
4kV
Pollution Degree
3
Pollution Degree2 Also
16A 230/400V 4kV 2
Rated Voltage Acc.to UL Csa
600V
Insulation Resistance
≥1010Ω
Material
Polycarbonate
Limiting Temperature
-40℃...+125℃
Flammability Acc.to UL94
V0
Mechanical Working Life-mating Cycles
≥500
Contacts
Material
Copper Alloy
Surface
Hard-silver/Hard-gold Plated
Contact Resistance
≤1mΩ
Screw Terminal
Wire Gauge
0.14-4.0mm²
AWG
26-12
productive process
Our precision inserts are manufactured through a fully automated production system, featuring a streamlined three-stage assembly process: (1) Core Pin Insertion - utilizing high-precision robotic positioning to install conductive pins with ±0.01mm accuracy; (2) Wire Connection Assembly - employing a dual-row screw matrix for secure electrical connections;(3) Housing Encapsulation - implementing torque-controlled fastening to structurally bond components. This automated process ensures consistent quality and precision in every unit produced.
RATED CURRENT
The figure on the right provides the current rating specifications for our HA-016-MC series. A comparison with equivalent models shows that the HA-016-MC maintains a moderate current capacity under identical operating conditions, positioning it as a balanced solution for standard applications.
COMPREHENSIVE DISPLAY
Side of 16 pins series
The product features numerically sequenced termination chambers for precise pin assignment. The mating male crimp pins are securely locked in place by an integrated internal retention mechanism. Additionally, the side metal components and their screws are assembled through a combination of in-house automated machinery and manual processes.
Male & female inserts of HA-016-MC
The image shows a matching pair of male and female inserts. Both require the use of separate crimp pins. The offset protruding structure on the side serves as a polarizing feature to prevent mismating. Compared to other connection methods, the crimp termination offers superior mechanical stability and reliability.
THE MATCHING CRIMP CONTACTS
silver plated 16A male contact
silver plated 16A female
gold plated 16A male contact
gold plated 16A female
TEST EQUIPMENT & PRODUCTION
DC Temperature Rise Test
This test monitors conductor temperature under load to determine safe current capacity. As current increases, resistive heating causes temperature rise, reducing ampacity. The evaluation considers conductor size, ambient conditions, and thermal properties to establish safe operating limits and prevent overheating in electrical systems.
Precision Automation for Superior Quality
The production of these screw-lock inserts is conducted on a fully automated line, which ensures exceptional consistency. Key steps include: the precise insertion of conductive pins into the plastic component with ±0.01 mm accuracy; the automated fastening of screws on both core rows to guarantee reliable connections; and the final assembly of the metal shell and side plate. This integrated process guarantees precise dimensions and uniform high quality.
APPLICATION SCENARIOS
Our heavy-duty connectors are built to withstand the extreme conditions of hot runner molds and extrusion systems. Designed to resist high temperatures, high currents, and continuous vibration, they maintain stable operation through a robust seal and corrosion-resistant materials that prevent the ingress of contaminants. Their precision engineering ensures full compatibility with industry-standard components from Harting, ILME, and TE, delivering dependable power and signal transmission to maximize durability and operational efficiency in critical processes.
in the hot runner industries >>
Heavy-duty connectors act as the neural hub of modern printing lines: one standardized interface links feeders, stackers, die-cutters and inspection units regardless of brand, while shielded contacts transmit power, servo signals and Industrial-Ethernet over 100 m with <10 ms delay. Next-generation inserts embed micro-sensors that stream temperature and resistance data via OPC UA for predictive maintenance; high-density hybrid layouts pack power, pneumatics and fiber optics into a 30 % smaller frame to serve compact presses. Halogen-free housings and silver-based plating extend service life beyond 5 000 cycles, cutting downtime and carbon footprint in compliance with twin-carbon targets.
in the textile machinery >>
HIGH PERFORMACE
Modular Series for Signal Transmission
Heavy duty connectors feature a modular design that integrates power, signal, and data transmission in one housing. This simplifies wiring, supports flexible configuration, and enables easy system expansion for industrial automation and printing machinery.
view more
Enhancing Cabinet Efficiency with Modular Connectors
The application of heavy-duty connectors in cabinets leverages their modular design to optimize efficiency and flexibility. This allows for customized layouts that combine various contact types, speeding up wiring, enabling easy reconfiguration, and simplifying maintenance procedures.
view more
Customized Protection Levels
Heavy-duty connectors feature a modular structure that enables customized protection levels for harsh environments. This design allows the same connector frame to be equipped with different seals, locks, and shells, ensuring reliable performance in applications exposed to moisture, dust, and chemical corrosion.
view more
