Products Description
Introduction

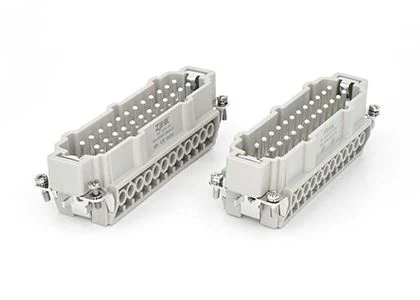

This type of connector can connect 48 cables in the same time and this can be appliance with 48B hoods and housings. Also it has wide application scenarios, such as temperature controller,HE series connectors connector use highly conductive metal for contact points, enhanced with a special plating layer for enhanced oxidation and corrosion resistance.
production specification
Terminal method
Screwing terminal
Gender
Male
Number of contacts
24*2
Model
HE-024-M(1-24)
HE-024-M(25-48)
Rated Current
16A
Rated Voltage
500V
Rated Impulse Voltage
6kV
Pollution Degree
Ⅲ
Rated Voltage Acc.to UL Csa
600V
Insulation Resistance
≥1010Ω
Material
Polycarbonate
Flammability Acc.to UL94
V0
Life Cycle Times
≥500
Material of Contacts
Copper Alloy
Contact Resistance
≤1mΩ
Wire Gauge
0.14-2.5mm²
AWG
26-12
WORKING TEMPERATURE
-40 degree celsius~ +125 degree celsius
Products overview

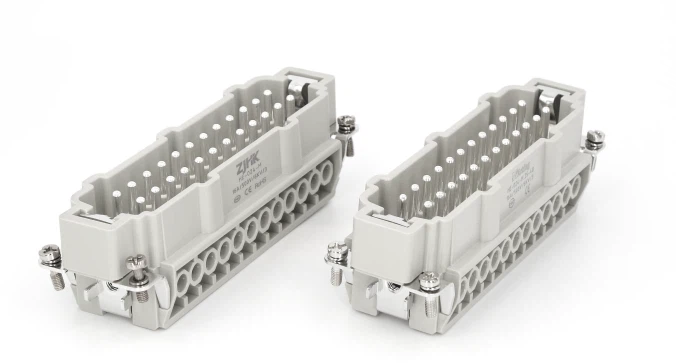

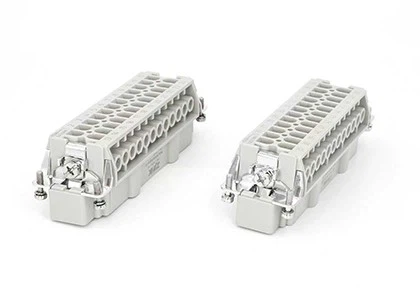

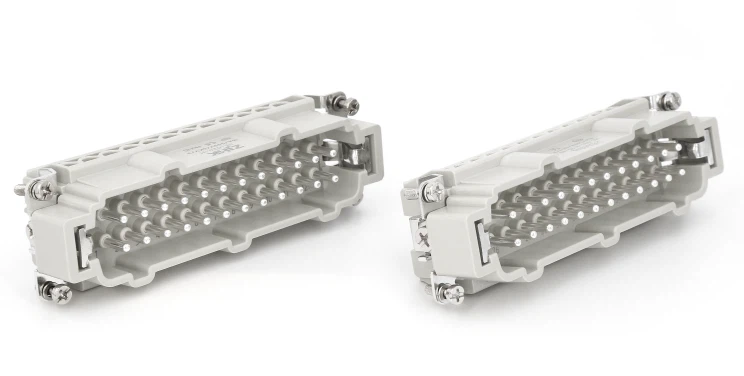

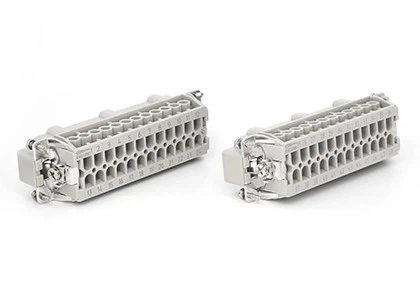

A 48 pins heavy duty connector are assembled by two 24 pins inserts.The contacts are made of copper alloy which has good conductivity. Its main body are made of polycabonatetaht has excellent insulation performance.
Scewing Termination

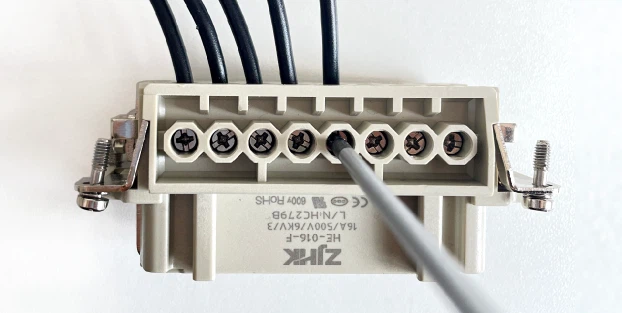

When screwing, be aware of the following issues: inconsistent tightening force between manual and electric screwdrivers, which can cause the screws to not tighten properly. Furthermore, vibration can cause the screws to loosen. Inconsistent tightening force and improper tooling can easily cause the screw head to slip, significantly increasing the difficulty of the work.
accessories
Choose the plan that suits you best.
h48B-SE-2B
Position: Hood, side entry
Degree of protection:IP65
Tread: M32/M40/M50/PG29/PG36/PG42
H48B-TE-2B
Position: Hood, top entry
Degree of protection:IP65
Tread: M32/M40/M50/PG29/PG36/PG42
H48B-BK-1L
Position: Housing, bulkhead mounting
Degree of protection:IP65
Characterastic: one lever
H48B-SF-1L
Postion:Housing, surface mounting
Degree of protection:IP65
Characteristic: one lever
Our Warehouse & quipment
apllication scenarios

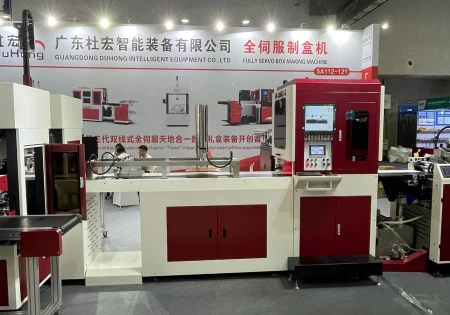

Printing Machines
To meet the "dual carbon" goals, printing companies are placing higher demands on equipment energy consumption and lifespan. Heavy-duty connectors will utilize environmentally friendly materials (such as halogen-free flame-retardant plastics and recyclable metals) to reduce environmental pollution. Furthermore, optimized contact structures (such as the use of wear-resistant alloys) will reduce replacement frequency and lower equipment operation and maintenance costs.
CNC machine tools
In modern manufacturing, CNC machine tools, as high-precision, high-efficiency processing equipment, have a stable operation that directly determines production quality and efficiency. Heavy-duty connectors play a crucial role as a bridge within the complex electrical connection systems of CNC machine tools. They not only ensure the reliable transmission of power, signals, and data, but also withstand the harsh environments encountered during machining, becoming a key component in ensuring the continuous and stable operation of CNC machine tools.
