Description
Product Introduction

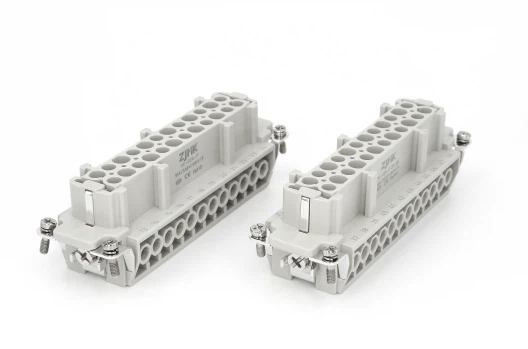

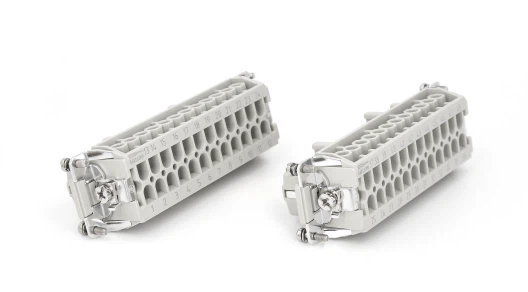

HE-048-F are made of two 24 pins female inserts. This series is the most common insert among other series. It has passed ISO9001 Management System and UL,CE,CQC and ect. Certifications. It is widely used in hot runner industry and it is equiped with 48B hoods and housings. It can operate steadily under strong environment.
Product Parameter (specification)
Specifications
DIN EN 60 664
Specifications
DIN EN 61 984
Termination method
Screwing termination
Gender
Female
Number of contacts
24*2
Model
HE-024-F(1-24)
HE-024-F(25-48)
Rated Current
16A
Rated Voltage
500V
Rated Impulse Voltage
6kV
Pollution Degree
Ⅲ
Rated Voltage Acc.to UL Csa
600V
Insulation Resistance
≥1010Ω
Material
Polycarbonate
Flammability Acc.to UL94
V0
Life Cycle Times
≥500
Material of Contacts
Copper Alloy
Contact Resistance
≤1mΩ
Wire Gauge
0.14-2.5mm²
AWG
26-14
Product Material
We use the world's most advanced nano-materials and ultra-high-standard metal materials to make our products,which are properly used to ensure the high quality of our products,as well as to improve the resistance,durability and waterproofness of our products.
Production process
Multiple protection devices,can ensure the safety of the sample,more effective protection of equipment components overloaded operation,greatly reducing the incidence of equipment failure,so that the operation of the equipment more stable and reliable.
Precautions for use
Limiting temperature: -40~+125℃
product overview
Appearance

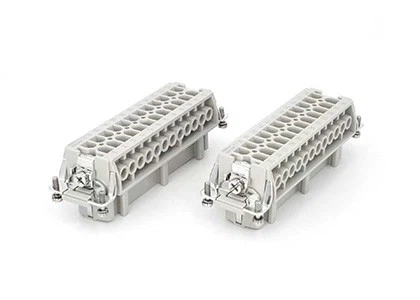

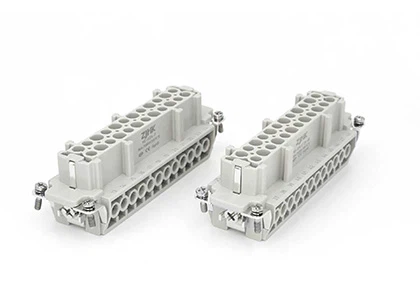

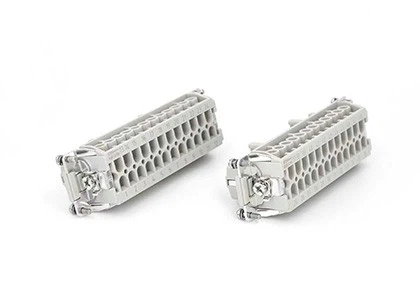

This 48-pin heavy-duty connector consists of two 24-pin inserts joined together. The connector's main housing, meanwhile, is constructed using polycarbonate-an option selected for its outstanding insulating properties.The manufacturing process of this 48-pin heavy-duty connector is a systematic, multi-stage workflow that integrates precision machining, material forming, and quality verification-all designed to ensure its mechanical durability, electrical conductivity, and insulation performance.
termination

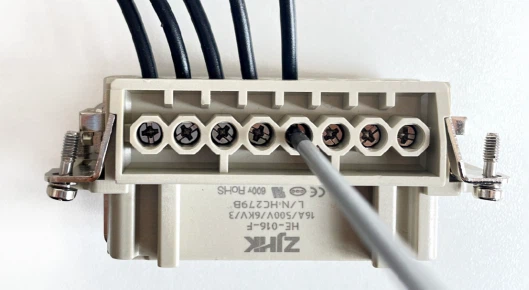

Screw connection is a common termination method in heavy-duty connectors. It uses screwsto clamp wires onto contact terminals. First, strip wire insulation, insert the wire into the terminal's clamping area, then tighten the screw with a torque tool to secure the wire. This design ensures stable electrical contact, resists vibration-induced loosening, and allows easy wire replacement. It's widely used in industrial, automotive, and machinery applications requiring reliable, maintainable connections.
accrssories
h48B-SE-2B
Position: Hood, side entry
Degree of protection:IP65
Tread: M32/M40/M50/PG29/PG36/PG42
H48B-TE-2B
Position: Hood, top entry
Degree of protection:IP65
Tread: M32/M40/M50/PG29/PG36/PG42
H48B-BK-1L
Position: Housing, bulkhead mounting
Degree of protection:IP65
Characterastic: one lever
H48B-SF-1L
Postion:Housing, surface mounting
Degree of protection:IP65
Characteristic: one lever
application scenarios

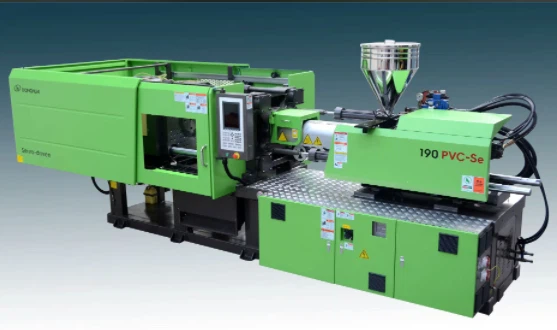

In the plastics molding industry, injection molding machines, as core equipment, undertake the crucial task of transforming plastic raw materials into various plastic products. Their stable and efficient operation plays a decisive role in the quality and production efficiency of plastic products. Heavy-duty connectors play an indispensable role in the operation system of injection molding machines, providing a solid guarantee for their reliable operation.
laser machine tools

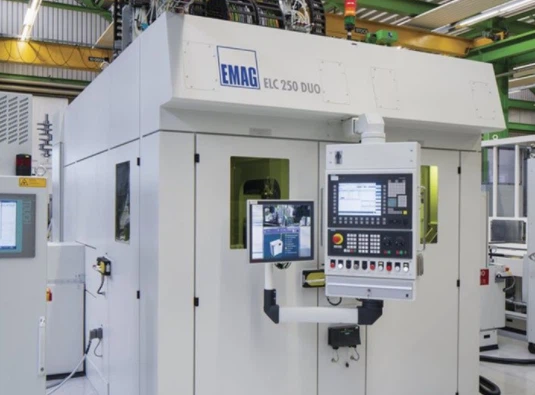

In modern manufacturing, laser machine tools, with their high precision, high speed, and high flexibility, have become indispensable core equipment in aerospace, automotive, electronics, and other fields. However, ensuring the coordinated operation of the complex systems of laser machine tools requires heavy-duty connectors , a core component of the connection system .
