Products Description

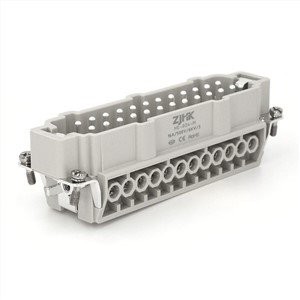

The HE-024-F standard connector is widely applicable to the hoods and housings of 24B size. Its screw terminals can be easily installed without professional tools and are particularly suitable for simple working environments.
Product Parameter (specification)
Termination method
Screw terminal
Gender
Female
Number of contacts
24
Model
HE-024-F
Rated Current
16A
Rated Voltage
500V
Rated Impulse Voltage
6kV
Pollution Degree
Ⅲ
Rated Voltage Acc.to UL Csa
600V
Insulation Resistance
≥1010Ω
Material
Polycarbonate
Flammability Acc.to UL94
V0
Mechanical Working Life-mating Cycles
≥500
Contacts
Copper Alloy
Contact Resistance
≤1mΩ
Wire Gauge
0.14-2.5mm²
AWG
26-14
Product Material
The functions of the light grey plastic casing include insulation protection, compatibility guarantee and installation fixation. The metal screws on the side are used for the assembly and fastening of components.
Limiting Temperature
ZJHK heavy duty connectors can work between -40℃ and +125℃.
Protection
The dust and water protection reach IP65 to IP68.
These 24B hoods and housings which are suitable for HE-024-M/F have different materials and structures. You can choose hoods and housings by your using scenarios.
Products Expand
The HE series is one of the common series in our company. In addition, we have multiple series such as HA, HQ, HM, etc., to meet your needs in different application fields. We also provide a series of products such as hoods and housings, cable glands, tools, etc. Welcome to consult and order!
Detection Device
We have professional testing equipment for heavy-duty connectors. These devices covered the entire life cycle from material performance to electrical safety, mechanical strength, and environmental adaptability, building a scientific defense line for product quality precision parts processing.
Application Scenarios
Hot runner industry
Heavy duty connectors with 4pins, 16pins, and 24pins configurations are widely used in hot runner industry, temperature control boxes, and some extrusion equipment.
Construction machinery
In response to the future requirements of the construction industry for reliability, diversification, high-rise construction, and high environmental standards, as well as the overarching trend of energy conservation and environmental protection.
Automation industry
To make the wiring of automated equipment more rational and enable efficient execution of engineering applications.Heavy duty connectors enable the transmission of both power and signals within a single connector.
Mechanical manufacturing
In the field of mechanical manufacturing, due to the diversity of equipment and spatial requirements, some scenarios require the transmission of not only strong and weak electrical currents but also media such as light and gases.
Certifications
UL
CE
UKCA
EAC
REACH
RoHS
About us
Zhejiang Haoke Electric Co., Ltd. is a private enterprise dedicated to the research, design, manufacturing, sales, and after-sales service of【heavy-duty connectors】.
Abundant industry experience and product knowledge reserves enable the provision of innovative application solutions for clients across various industries, as well as customized designs. Haoke's in-house mold team also lays a solid foundation for ensuring the timely and high-quality delivery of solutions.
vision of the future
Building a world-class industrial connector brand and becoming a global pioneer in industrial connectors.
mission
Dedicated to reducing the overall cost of connectors for industrial equipment and ensuring stable operation throughout the entire lifecycle of the equipment.
system of values
Reliable, Dedicate, Win-win
company goal
By 2028, become the industry benchmark in heavy-duty connectors and a calling card of "Made in China" that goes global.
