Products Description
Product Introduction
HE-024 standard connectors which are suitable for 24B hoods and housings are widely used and screw terminal doesn't need professional tools and easy to install, especially suitable for easy work environment.
Product Parameter (specification)
Termination method
Screw terminal
Certification
Gender
Number of contacts
24
Model
HE-024-M
Rated Current
16A
Rated Voltage
500V
Rated Impulse Voltage
6kV
Pollution Degree
Ⅲ
Rated Voltage Acc.to UL Csa
600V
Insulation Resistance
≥1010Ω
Material
Polycarbonate
Limiting Temperature
-40℃...+125℃
Flammability Acc.to UL94
V0
Mechanical Working Life-mating Cycles
≥500
Contacts
Copper Alloy
Contact Resistance
≤1mΩ
Wire Gauge
0.14-2.5mm²
AWG
26-14
Key Performance
Insertion and extraction force (insertion force, extraction force data) Service life (durability)
Heat resistance Moisture resistance Salt fog resistance Vibration and shock Others (sealing, liquid immersion, low pressure, environmental protection)
Contact resistance Insulation resistance Dielectric strength (withstand voltage or dielectric withstand) Electromagnetic interference
Products Overview
It can be seen that there are 24 plug-in cores made of copper alloy. The light gray plastic shell serves as insulation protection, adaptation, and installation fixation, while the metal screws on the side are used for assembly and
fastening.
How to connect with wires?
Its connection method is to lock the bottom inserted wire with the screw on the side of the ferrule, which is the most traditional connection method. Connect the cable at the bottom.
Products Expand
The HE series is one of the common series in our company. In addition, we have multiple series in different application fields. We also provide a series of products such as hoods and housings, cable glands, tools, etc. Welcome to consult and order!
product patents
Certified by the ISO9001 Management System.
Department owned
Complete range of departments The company possesses departments such as Production, Technology, Quality, Procurement, and Marketing, demonstrating strong cohesion that enables professional client interfacing and lays a solid foundation for Haoke's future development.
Product Series
It has covered series such as HA, HE, HEE, HD, HDD, HSB, HK, HQ, etc., with various combinations totaling thousands.
Process workshop
The company possesses injection molding workshops, assembly workshops, hood precision workshops, and pin insertion workshops, which essentially cover the entire production chain of heavy-duty connectors, enabling effective quality control and delivery assurance.

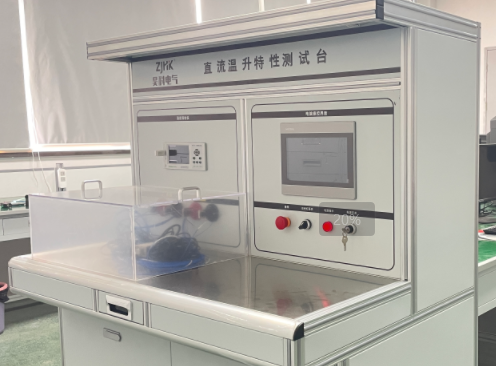

Laboratory & quipment
Advanced, professional and precise.
Application Scenarios
Why Do You Choose Us?
In the fierce competition in the heavy-load connector industry, Zhejiang Haoke Electric Co., Ltd. has built its expertise with focus, and with its full-chain industrial layout and ultimate pursuit of quality, it has firmly established itself in the leading echelon of the industry and has become synonymous with "stability".
"For heavy-duty connectors, Haoke is more stable!" This is not only a promise, but also a true reflection of Haoke Electric's years of hard work in the field of heavy-duty connectors, driven by technological innovation and guaranteed by quality management. In the future, ZJHK will continue to focus on customer needs and become a trusted choice in the field of global industrial connections with richer products and more reliable performance.
01
Full category coverage to meet diverse needs
The company's product matrix has covered multiple series such as HA, HE, HEE, HD, HDD, HSB, HK, HQ, etc. Through flexible combination, thousands of solutions can be formed, covering the connection needs of industrial automation, engineering machinery, logistics warehousing, new energy and other fields. Whether it is power transmission in high-current scenarios or signal interaction in complex environments, ZJHK can provide precisely adapted products.
02
Quality as the basis, certification as the support
"Stable quality" is the core competitiveness of Haoke Electric. The company has not only passed the ISO9001 quality management system certification, but also strictly follows the standardized process in every link from R&D design to production and manufacturing, and polishes products according to international standards - UL, CQC, CE, RoHS and other authoritative certifications are a strong proof of the safety and reliability of Haoke Electric products.
03
Professional Team,cover the entire production chain
The company possesses injection molding workshops, assembly workshops, hood precision workshops, and pin insertion workshops, which essentially cover the entire production chain of heavy-duty connectors, enabling effective quality control and delivery assurance.
04
Steady growth, proven by word of mouth
With the advantages of full categories and stable quality, ZJHK sales performance continues to grow steadily, which is backed by the high recognition of the market and customers. In different application fields, Haoke heavy-duty connectors always aim at "zero failure" and use stable performance to protect customers' production efficiency.
We are always at your service when you need
Zhejiang Haoke Electric Co., Ltd. is a private enterprise dedicated to the research, design, manufacturing, sales, and after-sales service of【heavy-duty connectors】.
staffs
years of experience
Exproting Countries
Satisfied
feedback From Clients
Frequently Asked Questions
Do you have your own factory, or do you source them from suppliers?
+
-
Yes, of course. We have our own factory nearly 10000 square meters in Wenzhou City, Zhejiang Province, China.
Do you support OEM service?
+
-
Sure.Our products can be printed with different logo.And the package also can be designed by your will.
What is common payment term for orders?
+
-
We accept terms of T/T in advance, Western Union. It accords to your requirement.
How about the warranty time?
+
-
12 month. Any problem of the quality is changed by your next order free.
What's your advantage compare with Harting,ILME,TE(SIBAS)?
+
-
Our HDC can replace Harting,ILME,TE(SIBAS)perfectly,most of clients who use those brand before,After the test ,they choose us.Also our price is more cost-effective than Harting.
