Application of heavy-duty connectors in the robotics industry

Driven by the wave of industrial automation, robotics technology is developing at an unprecedented speed. From precision assembly robots in automobile manufacturing production lines, to AGV (automatic guided vehicles) that flexibly shuttle in logistics warehouses, to robots that assist surgery in the medical field, robots have been widely infiltrated into various industries. Behind the efficient operation of robots, heavy-duty connectors play an indispensable role, ensuring the stable transmission of power and signals. Zhejiang Haoke Electric Co., Ltd. focuses on the research and development, design, manufacturing, sales and after-sales of heavy-duty connectors. It has basically achieved the goal of a full range of products (covering HA, HE, HEE, HD, HDD, HSB, HK, HQ and HM series, with thousands of combinations), stable quality, and steadily growing sales performance, and is in the leading echelon of this type of connector in the industry. Through our continuous efforts, we have obtained UL, CQC, CE, RoHS and other certifications, and passed the ISO9001 management system certification. In short, when it comes to heavy-duty connectors, Haoke is more stable! Next, we will explore in depth the application of heavy-duty connectors in the robotics industry.

Characteristics of heavy-duty connectors

Heavy-Duty Connector (HDC) is mainly used for high-reliability electrical and signal connections, especially in harsh environments, to ensure stable and reliable transmission of power and data. It has a series of features suitable for the complex working environment of robots. It is used to connect various modules of the robot, such as arms, bases, control boxes, etc., to achieve power and signal transmission between various parts, and ensure reliable connection during movement.

High protection level

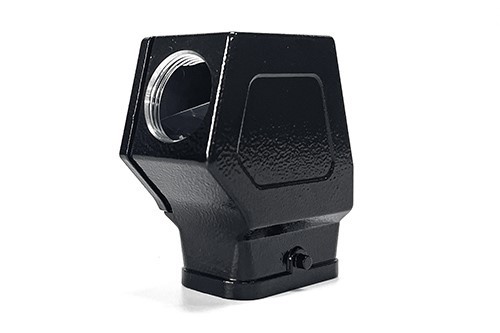

The working environment of robots is often complex and may be exposed to pollution such as dust, water vapor, and oil. Therefore, our company has launched a high protection level housing (Figure 1), which has a waterproof and dust protection level of IP65 and IP68, and can effectively prevent dust and water intrusion.

info-355-237

High current transmission capability

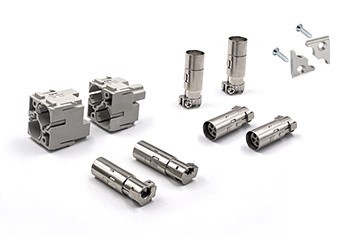

Modern robots integrate a large number of motors, sensors and actuators, which require strong power support. Our HSB and HK series plugs (Figure 2) can achieve stable transmission of high currents and meet the power needs of robots.

Stable signal transmission

In addition to power transmission, robots also need to accurately transmit control signals and sensor feedback signals. The H2M-002 module (Figure 3) launched by our company can effectively shield electromagnetic interference and ensure the accuracy and stability of signal transmission.

Modular design

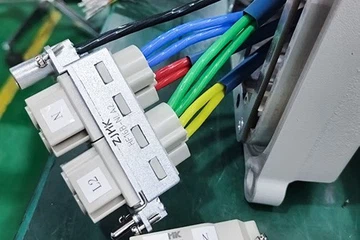

ZJHK HM series inserts (Figure 4) adopt a modular structure design , which can transmit power, signals and gas at the same time. Users can freely combine modules with different functions according to actual needs, such as power modules, signal modules, data modules, etc. This design is not only convenient for installation and maintenance, but also can be quickly configured when the robot function is expanded .

Specific application scenarios of heavy-duty connectors in the robotics industry

Industrial manufacturing

In the automobile manufacturing production line, spot welding robots, spraying robots, assembly robots, etc. work together to form a highly automated production system. Heavy-duty connectors are widely used to connect these robots with control cabinets, power systems, and other equipment. In the application of spot welding robots, heavy-duty connectors must not only transmit large currents to drive spot welding equipment, but also accurately transmit control signals to ensure that the position and quality of the welds meet the standards. Even when the automobile production line runs 24 hours a day, heavy-duty connectors can effectively ensure the stable operation of the robot, reduce downtime caused by connection problems, and thus improve production efficiency. Figure 5 shows the application scenario of heavy-duty connectors in robots in automobile manufacturing production lines.

Logistics and warehousing

AGV (Automated Guided Vehicle) is becoming more and more popular in the field of logistics and warehousing. They are connected to charging stations, dispatching systems and shelf identification equipment through heavy-duty connectors. AGV needs to be charged frequently during operation. The quick plug-in and pull-out function of the heavy-duty connector (the life cycle of the ZJHK heavy-duty connector is more than 500 times) enables it to complete the charging connection in a short time, improving the use efficiency of the AGV. At the same time, the AGV needs to receive instructions from the dispatching system in real time and feedback its own status. The stable signal transmission performance of the heavy-duty connector ensures the timeliness and accuracy of information interaction, enabling the AGV to operate efficiently and safely in the warehouse. Figure 6 shows the application scenario of heavy-duty connectors in robots in the logistics and warehousing fields.

Medical field

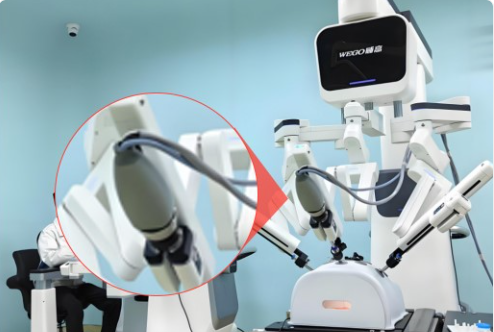

In the medical field, surgical robots, rehabilitation robots, etc. have extremely high requirements for the reliability and safety of connectors. The application of heavy-duty connectors in medical robots needs to meet strict hygiene standards and electrical safety specifications. For example, when a surgical robot is performing precision surgery, the heavy-duty connector must ensure zero-delay transmission of the control signal so that the doctor's operation can be accurately transmitted to the robot's execution end. At the same time, its high protection performance can prevent liquid infiltration during surgery and ensure the safety of equipment and patients. In addition, medical robots need to be strictly disinfected after use, and the material and structural design of heavy-duty connectors can adapt to various disinfection methods, such as high-temperature and high-pressure disinfection, ultraviolet disinfection, etc. Figure 7 shows the application scenario of heavy-duty connectors in medical robots.

Future development trends

As robotics technology continues to mature, higher requirements are placed on heavy-duty connectors.

In the future, heavy-duty connectors will develop towards smaller size, higher density integration, higher speed data transmission, and stronger adaptability. For example, driven by 5G technology and the Internet of Things, heavy-duty connectors need to support higher speed data transmission to achieve real-time communication between robots and between robots and the cloud.

As a key component in the robot system, the performance of the heavy-duty connector directly affects the operating efficiency and reliability of the robot. As the robot industry continues to develop, heavy-duty connectors are also continuously innovating and optimizing, providing solid support for the advancement of robot technology. With the continuous expansion of application scenarios and the increasing technical requirements, heavy-duty connectors will play a more important role in the robot industry. Of course, Haoke is also constantly working hard to build a world-class industrial connector brand, becoming a benchmark in the heavy-duty connector industry and a "Made in China" business card to the world. If you are interested in our products, please feel free to consult us through the following methods!
