h10B-SFH-4B

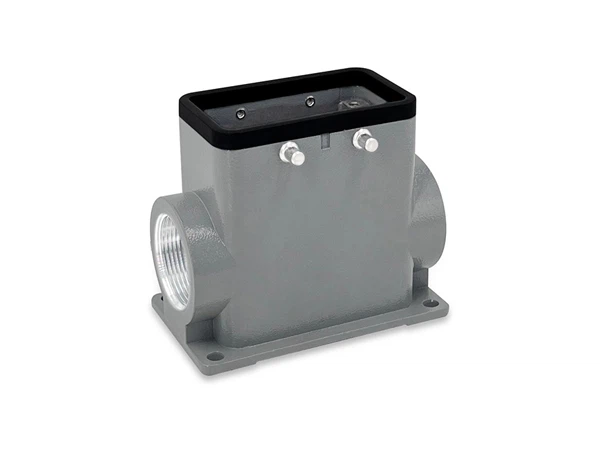

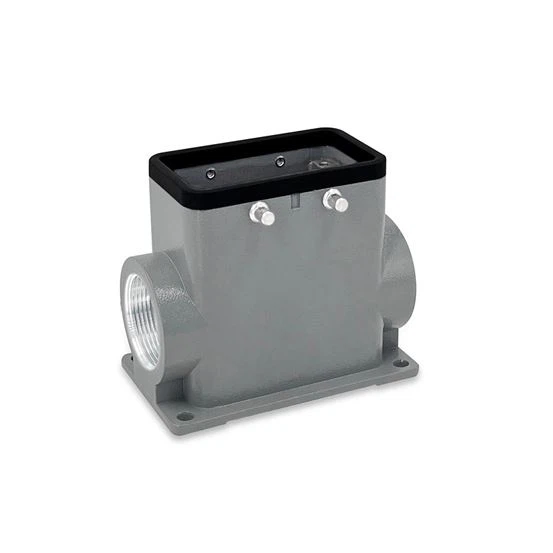

This is a heavy-duty connector housing. It's a 10B high-profile base with four bolts. It can have cable exits on one or both sides. Its tall design allows for more internal space, accommodating multiple cables simultaneously, making it suitable for devices requiring extensive wiring.
Parameters
High Structural
Size
10B
Cable Entry
Bottom Entry
Material
Aluminium Die-cast
Colour
Grey
Bolts Number
4
Material
Metal galvanized
Seal
NBR
Rated Temperature
-40 to +125℃
Protection Grade
IP65
Products Overview
Details
This casing features a gray metal base made of die-cast aluminum alloy. While lightweight, it maintains its rigidity. Furthermore, the painted finish enhances its corrosion resistance. A dense oxide film easily forms on the aluminum surface, and with further coating or anodizing, it can withstand humid, dusty, or mildly corrosive environments for extended periods without easily rusting.

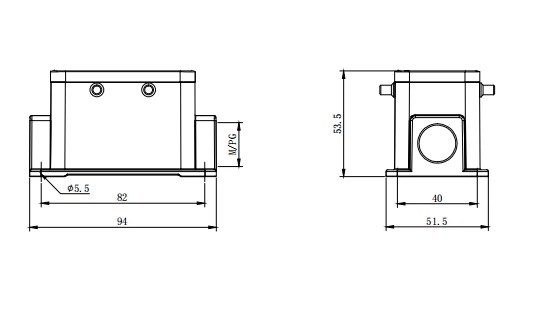

Technical Specifications
Surface: Powder-coated
Cable Entry: Bottom Entry
Colour: Grey
Limiting Temperature Range: -40°C to +125°C
Protection Rating: IP65
Thread Type: M / PG
Products Extension
No Cover
M25 19300100126
2M25 19300100166
M32 19300100127
2M32 19300100167
PG21 09300100122
2PG21 09300100123
PG29 09300100123
2PG29 09300100163

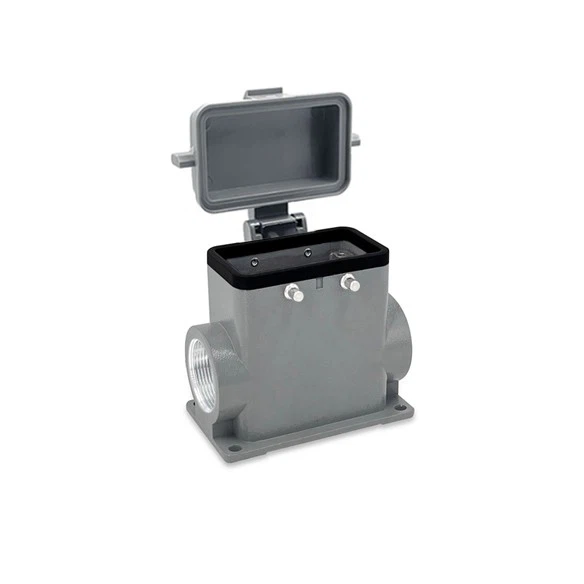

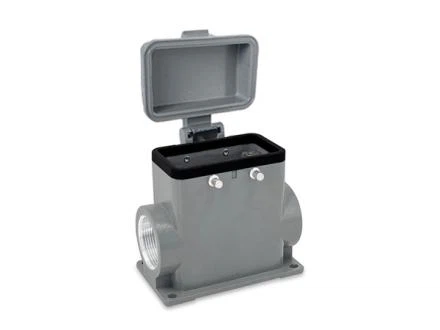

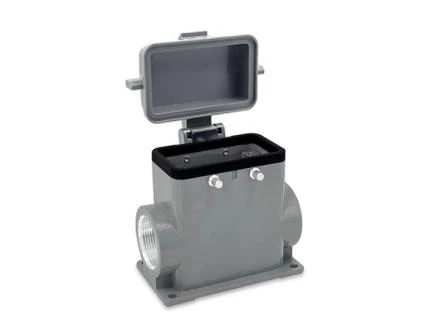

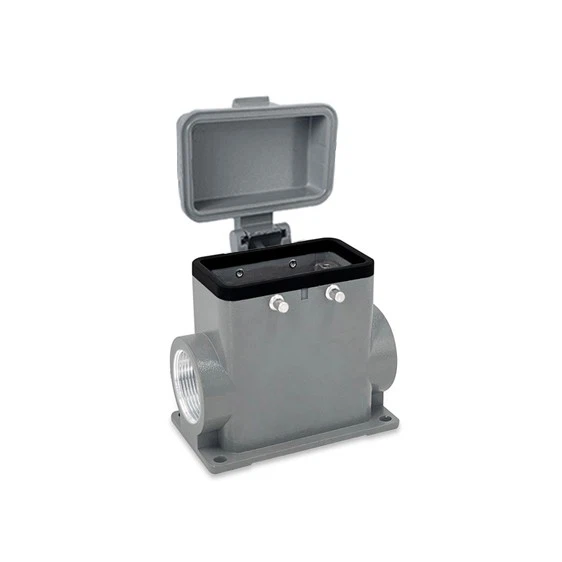

Metal Cover
M25 19300102226
2M25 19300102266
M32 19300102227
2M32 19300102267
PG21 09300102222
2PG21 09300102262
PG29 09300102223
2PG29 09300102263
Plastic Cover
M25 19300100226
2M25 19300100266
M32 19300100227
2M32 19300100267
PG21 09300100222
2PG21 09300100262
PG29 09300100223
2PG29 09300100263
application Scenarios
In rail transit applications, the modular heavy-duty connectors provided by ZJHK can meet the diverse needs of mixed power and signal transmission. Through modular design, they can be flexibly configured according to different equipment structures, reducing the number of interfaces and improving system integration.Meanwhile, Haoke products prioritize mechanical strength and locking reliability in their structural design , making them suitable for the vibration environments commonly encountered in rail transit. Combined with a sealed structure, they also meet certain protection requirements.
Smarter Agricultural Machinery
Heavy-duty connectors offer high IP protection levels such as IP65, IP67, or IP69K, effectively resisting dust, mud, water washdown, and corrosion from fertilizers or chemicals in agricultural settings.Featuring durable housings and reliable locking mechanisms, these connectors withstand strong vibrations and shocks to prevent disconnection. Their modular plug-and-play design also simplifies installation and maintenance, allowing for quick replacement to minimize downtime.
warehouse & equipment

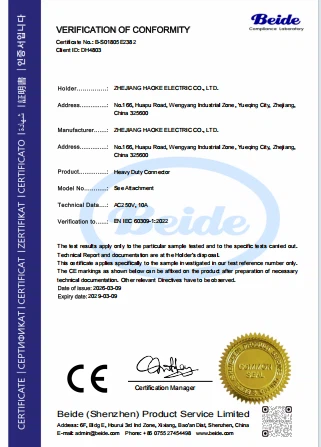

Company Certificates
frequent Ask Questions
It refers to a taller structure compared to standard housings, providing more internal space for wiring, especially when using thicker cables or more complex insert combinations.
The 4-bolt structure offers a more stable and secure installation on panels or equipment, which is helpful in applications with vibration or long-term operation.
It is usually mounted on control cabinets, electrical panels, or machinery surfaces where a fixed and reliable connection point is needed.
