Description
This is a high-structure, top-mounted housing. It has four pegs for accommodating double-buckle housings. Thanks to its high-structure features, it can accommodate larger thread openings, offering greater flexibility in thread selection. Furthermore, the double-buckle design enhances the stability of the electrical connection.
Parameters
SeriesB Metal Hoods
Size
10B
Construction
High Construction
Bolts
4
Cable Entry
Top Entry
Material
Aluminium die-cast
Colour
Grey
Locking Element
Lever Type
Double Levers
Material
Nickel plating
Hoods Seal
NBR
Limiting Temperature
-40...+125℃
Degree of Protection
IP65
Part Number
Thread Size
19300100426
M25
19300100427
M32
19300100465
2M20
09300100421
PG16
09300100422
PG21
09300100423
PG29
Products Details
The top shell of this model is 10B in size and made of die-cast aluminum. Excellent corrosion resistance is a major characteristic of die-cast aluminum. Through surface coating, powder coating, or anodizing, the shell can effectively resist complex environments such as moisture, dust, oil, and salt spray, extending the product's service life.
Material: Aluminium die-cast/powder-coated
Colour: grey
Temperature range:-40°C - +125°C
Degree of Protection: IP65(acc.to IEC 60529 for coupled connector)
Thread size: M/PG
company Production Line
Advanced Equipment
Zhejiang Haoke Electric Co. Ltd. has equipped its production line with a series of automated equipment to improve product consistency and production efficiency. The factory focuses on processes such as die casting, machining, injection molding, and assembly, using a combination of automation and manual labor in production.In the initial manufacturing stage, die casting equipment is used to form the aluminum alloy shell, ensuring structural strength and dimensional stability; subsequent CNC machining equipment performs precision machining to improve product accuracy. In the assembly stage, automated assembly and inspection equipment has been introduced to control key dimensions and assembly status, reducing human error.
Quality Inspection
For quality inspection, basic testing and inspection equipment is also available for daily dimensional checks and performance verification, ensuring that products meet stable standards before leaving the factory. Some processes are also completed using semi-automatic or automated equipment, such as pressing and locking assembly, improving efficiency and enhancing the consistency of batch products.Application Scenarios

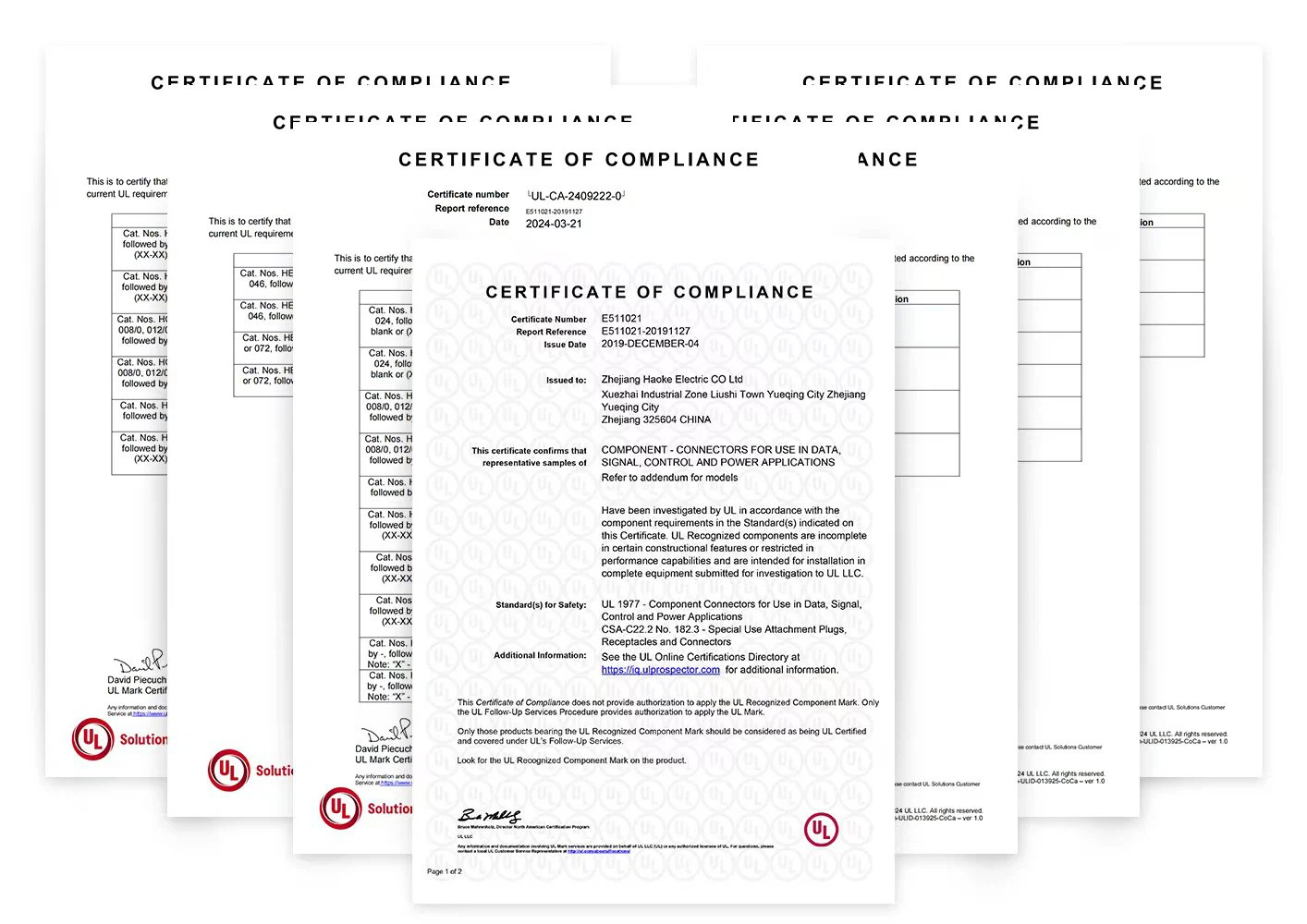

certificate
address
No.166, Huapu Road, Wengyang Industrial Park.Yueqing City, Zhejiang Province, China 325600
Phone Number
+86 18067786591
Hot Tags: 4pegs top entry 10b industrial connector hoods, China, manufacturers, suppliers, factory
