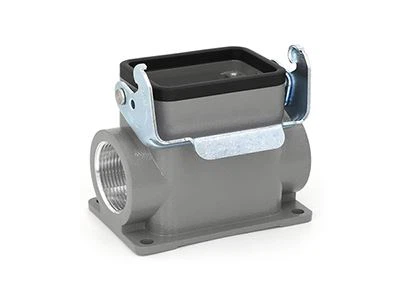

High Construction 10B Heavy Duty Connector Housings

High Construction 10B Heavy Duty Connector Housings
Details:
This is a 10B high-structure base with two cable outlets. It features a single-buckle design and is made of aluminum. The base has a painted finish and is available in various thread diameters. With an IP65 protection rating, it is ideal for use in harsh environments.
Send Inquiry
Download
Description
Technical Parameters

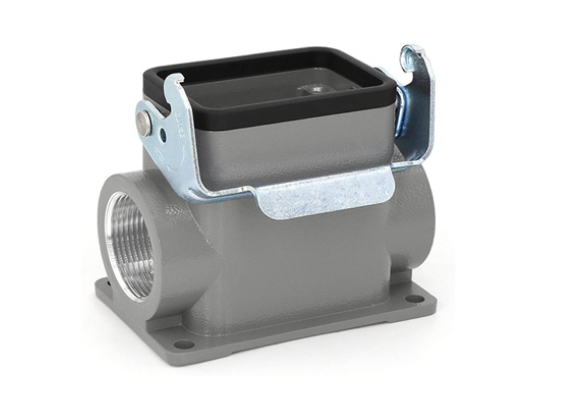

product-563-413
 Introduction

This is a 10B high-structure base with two cable outlets. It features a single-buckle design and is made of aluminum. The base has a painted finish and is available in various thread diameters. With an IP65 protection rating, it is ideal for use in harsh environments.

product-700-52

Relevant Data

High Struncture Mounting



Size

10B

Material

Aluminium

Colour

Grey

Lever Type

1 Lever

Material

Metal galvanized

Seal

NBR

Cover

Plastic,Metal

Rated Temperature

-40...+125℃

Protection Grade

IP65

Part Number

Model

19300100291

H10B-SFH-1L-M25

19300100391

H10B-SFH-1L-2M25

19300100292

H10B-SFH-1L-M32

09300100192

H10B-SFH-1L-2M32

09300100292

H10B-SFH-1L-PG21

09300100292

H10B-SFH-1L-2PG21

09300100193

H10B-SFH-1L-PG29

09300100293

H10B-SFH-1L-2PG29

Product Material-Mental galvanized



Press-locked zinc buckles offer several advantages in heavy-duty connector housings. First, zinc alloy provides good mechanical strength, allowing the buckle to maintain a firm locking force and ensure a stable connection between the hood and base. This helps prevent accidental loosening caused by vibration or movement during equipment operation.

Details

Thread             Plastic Cover                      Metal Cover

M25                  19300101255                       19300107295

2M25                19300101295                       19300107296

M32                  19300101056                       19300107297

2M32                19300101296                       19300107298

PG21                19300101256                       09300102197

2PG21              09300101296                       09300102297

PG29                09300100198                       09300102198

2PG29              09300100298                       09300120298

product-598-419

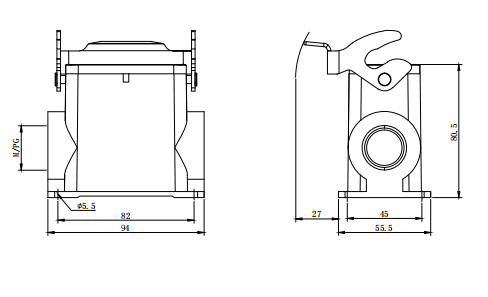

product-488-297



Related Parameters

Material:                                          Aluminlum die-cast

cover:                                             metal/Plastic

Surface:                                          powder-coated

Colour:                                           grey

Limited Temperature:                   -40°C - +125°C

Degree of Protection:                   IP65

Sealing:                                           NBR

Delivery&Package

product-789-410

Delivery



To accommodate different transportation needs, we provide a range of shipping options. Customers can choose international courier services such as FedEx or UPS, or arrange dedicated logistics solutions by sea, land, or air. Under normal circumstances, orders are shipped within one week after confirmation so that customers can receive their products without unnecessary delay.

Packaging



All products are carefully inspected before shipment to ensure they meet quality standards. After passing inspection, each item is packed separately to provide adequate protection during handling and transportation. Every unit is clearly labeled for easy identification, sealed with protective packaging materials, and then placed into cartons to keep the goods secure and well arranged during transit.

product-789-410
 Compatible Hoods
product-600-450

Structure: Conventional

Installation: Cable to cable

Lever: 1

Thread Size :M20/PG16



product-600-450

Structure: High Construction

Installation: Cable to cable

Lever: 1

Thread Size:M25/M32/PG21/PG29

High StructureTop Entry 10B Heavy Duty Connector Hoods

Structure: High Construction

Installation:Top Entry

Bolts:2

Thread Size:M25//M32/PG21/PG29

Top Entry 10B Rectangular Connector Hoods

Structure: Conventional

Installation:Top Entry

Bolts:2

Thread Size:M20/M25/PG16
