H10B-SF-1L

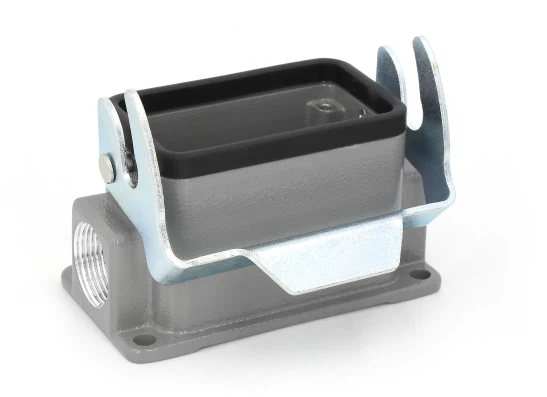

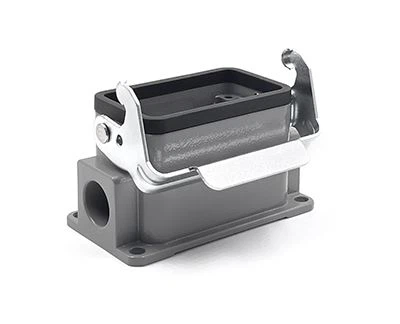

This is a housing base for heavy-duty connectors. Measuring 10B, it accommodates various connector types. The base is sealed at the bottom, allowing cables to be routed from either the left or right. It offers high protection and is suitable for harsh industrial environments.
Parameters
Surface Mounting
Size
10B
Material
Alluminium
Colour
Grey
Lever Type
1 Lever
Material
Mental galvanized
Seal
NBR
Cover
Material
Rated Temperature
-40...+125℃
Flammablity acc. To UL 94
V0
Protection Grade
IP65
Part Number
Model
19300101250
H10B-SF-1L-M20
19300101290
H10B-SF-1L-2M20
19300101251
H10B-SF-1L-M25
19300101291
H10B-SF-1L-2M25
09300101251
H10B-SF-1L-PG16
09300101291
H10B-SF-1L-2PG16
different Aspects
with Plastic cover
Thread Part number
M20 19300101255
2M20 19300101295
M25 19300101056
2M25 19300101296
PG16 19300101256
2PG16 09300101296
with metal cover
Thread Part number:
M20 19300102255
2M20 19300102295
M25 19300102256
2M25 19300102296
PG16 09300102256
2PG16 09300102296
Products Drawing
Material: Aluminlum die-cast
cover: Aluminium die-cast
Surface: powder-coated
Colour: grey
Temperature range: -40°C - +125°C
Degree of Protection: iP65
Products Description
Blow molding machines require extremely high stability from their heating systems. Heavy-duty connectors can be used in:
Electrical connection between heating unit and control system
Integrated transmission of temperature monitoring and control signals
Stable contact performance helps ensure the long-term reliable operation of the heating system, thereby improving the consistency of product molding quality.
electric engineering machinery
Heavy-duty connectors are commonly used to connect motor drive systems, battery management systems, control cabinets, and various sensing and control modules . Stable and reliable connection solutions ensure continuous operation of equipment under complex working conditions, providing crucial support for the development of electric construction machinery.
warehouse & equipment
certificate
Company Introduction
Zhejiang Haoke Electric Co. Ltd. has gradually established itself in the heavy-duty connector industry through continuous development and market expansion. ZJHK has built a comprehensive product range and steadily strengthened its position in the heavy-duty connector sector. By 2024, annual sales exceeded 50 million RMB, reflecting the company's growing competitiveness in the industry.
fAQ
ZJHK products are manufactured under a strict quality management system and have obtained certifications such as UL, CE, and RoHS, ensuring compliance with international market requirements.
Most ZJHK connector housings are made of die-cast aluminum alloy, which offers high mechanical strength, good corrosion resistance, and reliable protection in demanding industrial environments.
Under normal circumstances, orders can be shipped within one week after confirmation, depending on the product type and order quantity. We also provide multiple shipping options including international express and freight services.
Yes. ZJHK can support customers with customized configurations, including different insert combinations, cable entry options, and application-based solutions to meet specific project requirements.
