h10B-bK-1L

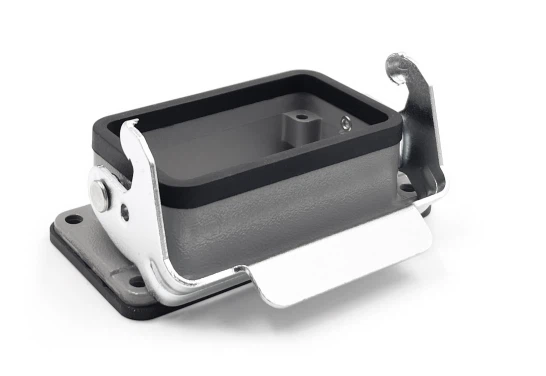

This base features an open-bottom design without a closed base plate, allowing cables or wires to easily enter the connector from within the equipment. This improves wiring flexibility and is particularly suitable for applications such as control cabinets, internal connections of electrical equipment, and installation of automated equipment.
Parameters
Bulkhead
Size
10B
Material
Alluminium
Colour
Grey
Lever Type
1 Lever
Material
Mental galvanized
Seal
NBR
Cover
Material
1
plastic
2
metal
Rated Temperature
-40...+125℃
Flammablity acc. To UL 94
V0
Protection Grade
IP65
Part Number
Model
09300100305
H10B-BK-1L
09300100303
H10B-BK-1L-CV
09300100318
H10B-BK-1L-MCV
Details

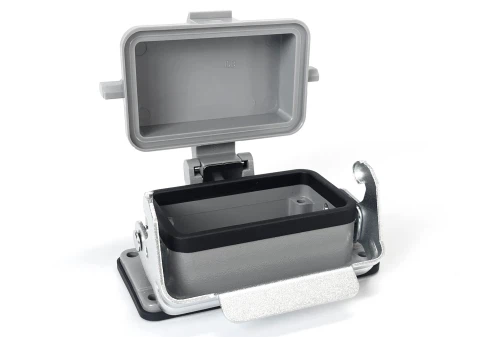

Plastic Cover Type
The housing is made of die-cast metal with a sandblasted or powder-coated surface, giving it a refined texture and providing good corrosion resistance. The top cover connects to the base via a hinge, making opening and closing convenient. A metal latch on the side ensures the connector remains securely in place during use.The internal space is well-organized with a sealed structure on all sides. When the cover is closed, it provides some dust and water protection, making it suitable for installation in control cabinets, automated equipment, or industrial production lines.
Metal Cover Type
Mounting holes on the bottom allow for direct mounting to equipment or mounting plates.
This type of housing is typically used with corresponding connector pins and plugs. Its main functions are to protect the connector, improve mechanical strength, and ensure stable electrical connections. It is commonly found in industrial automation, machinery, and power control systems.
Products drawing
Material: Aluminlum die-cast
coverl: Aluminium die-cast
Surface: powder-coated
Colour: grey
Degree of Protection: IP65(acc.to IEC 60529 for coupled connector)
Products applications
As the global construction machinery industry moves towards green and intelligent development, electrified construction equipment is gradually becoming an important trend in the industry. Mobile construction machinery comes in a wide variety of types, from common wheel loaders and excavators to large mobile cranes and specialized equipment designed for special working conditions. These machines typically need to operate for extended periods in complex and harsh environments.
servo bending machines
Servo bending machines typically integrate servo motors, drivers, CNC systems, sensors, and safety protection devices. The electrical system simultaneously contains high-power power circuits and multiple control and feedback signals , which sets higher standards for the internal connection system.
Our factory & Equipment
compatible Hoods
Choose your want.
Construction: High
Bolts Number: 2
Size:M25/M32/PG21/PG29
Thread Position:Top Entry
Construction: Normal
Bolts Number: 2
Size:M20/M25/PG16
Thread Position:Top Entry
Construction: High
Bolts Number: 2
Size:M25/M32/PG21/PG29
Thread Position:Side Entry
Construction: Normal
Bolts Number: 2
Size:M20/M25/PG16
Thread Position:Side Entry
