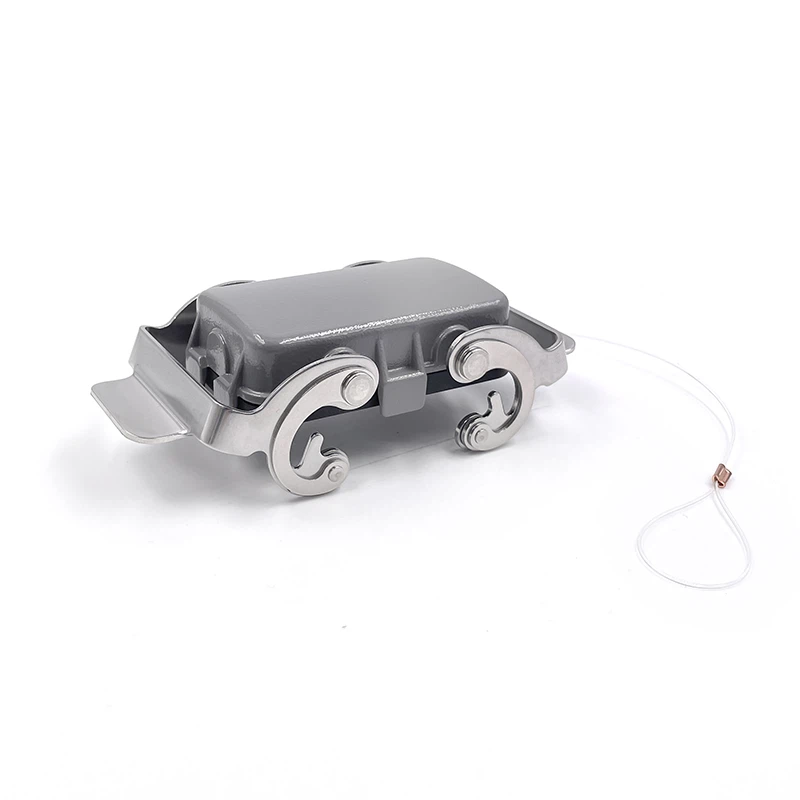

h10B-MCV-2L/S
The 10B Protective Cover (Dual-Latch, Stainless Steel) is primarily designed to safeguard the connector interface when it is not in use, thereby preventing external environmental factors from compromising the internal components.
Typically paired with 10B-series bases or hoods, this protective cover completely shields the interface area when closed. It provides direct and effective protection in environments exposed to dust, moisture, or oil contamination, significantly reducing the risk of the internal contact elements becoming soiled.
Parameters
Metal Cover
Size
10B
Material
Aluminium Die Cast
Colour
Grey
Levers
2
Protection Grade
IP65
Part Number
Model
09300105423
H10B-MCV-2L.1S
09300105424
H10B-MCV-2L.2S

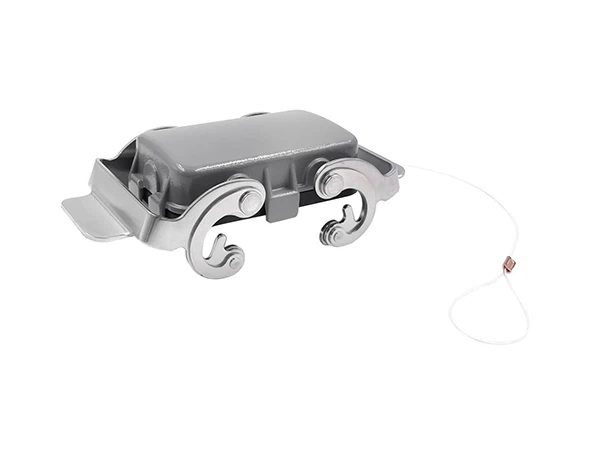

Product Display
Products Description
It features a dual-latch design; when secured on both sides, it offers enhanced stability and ensures a more uniform distribution of force, making it highly resistant to accidental disengagement caused by vibration or external impact. The latches are constructed from stainless steel, offering superior durability and corrosion resistance; they are highly resistant to rusting in humid or corrosive environments, thereby guaranteeing long-term operational stability.
The main body of the cover typically features a robust metal construction capable of withstanding the bumps and external impacts associated with daily use. Furthermore, it is often equipped with an attachment chain or an anti-loss mechanism, enhancing user convenience and minimizing the risk of misplacement.
Overall, this protective cover serves as a simple yet highly practical accessory that plays a significant role in enhancing both the durability and operational reliability of the connector

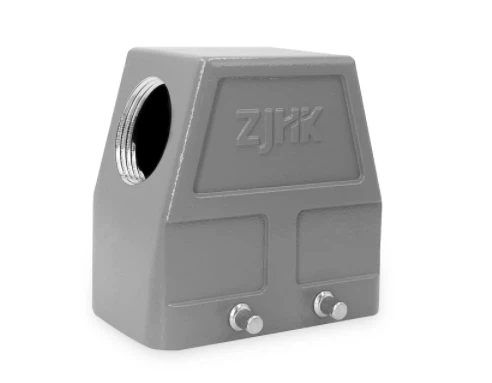

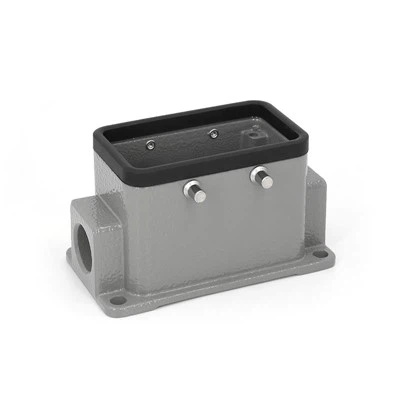

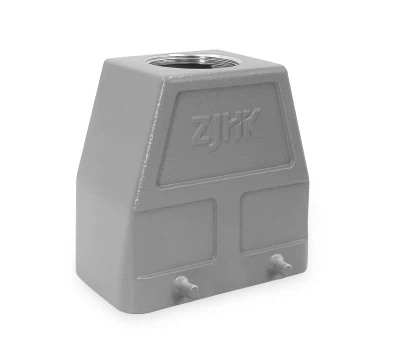

compatible Housings
Choose the plan that suits you best.
Cable Entry: Top
Construction: High
Cable Entry: Top
Construction: Normal
Cable Entry: Top
Construction: High
Cable Entry: Top
Construction: Normal
warehouse & equipment
Company Profile
Zhejiang Haoke Electric Co.Ltd has specialized in heavy duty connector for more than 10 years. In 2019, ZJHK gained UL certification, set up its own testing facilities, and started participating in international exhibitions like Hannover Messe, helping expand its reach in overseas markets. Over time, the company has developed a broad product range and improved performance stability.
By 2024, annual sales exceeded RMB 50 million, showing steady growth and increasing recognition in the heavy-duty connector industry.
active members
years experience
events & challenges
Exported Countries
Our address
No.166, Huapu Road, Wengyang Industrial Park.Yueqing City, Zhejiang Province, China 325600
