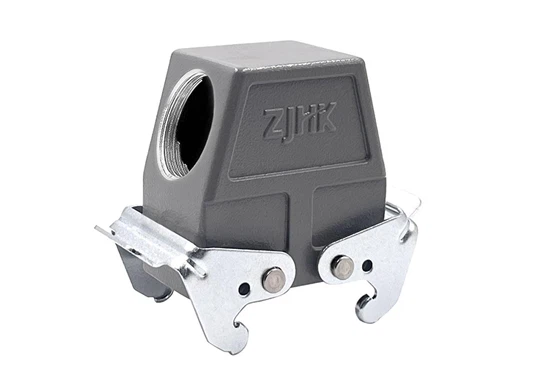

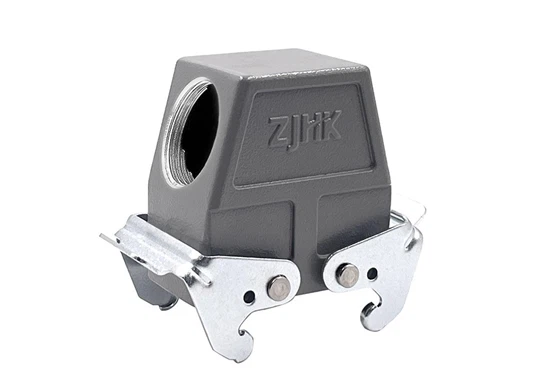

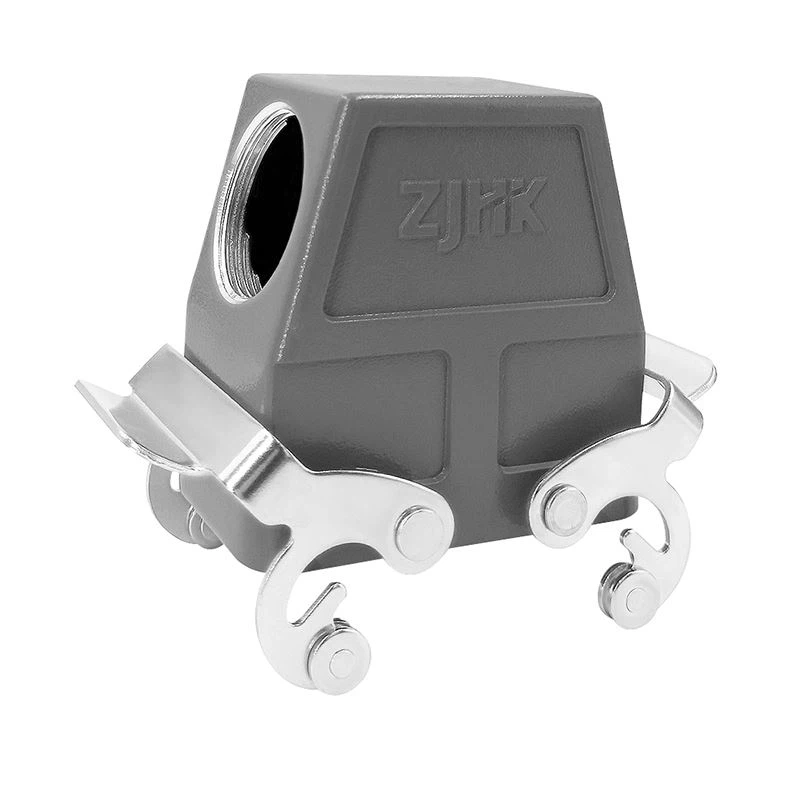

h10B-SEH-2L
This type of hoods is designed for heavy-duty connector systems that require reliable protection and flexible cable routing in industrial environments. It is commonly used together with a 10B base to form a complete connector assembly.
This hood features a side cable entry design, allowing cables to exit from the side of the housing. It is especially suitable for applications where vertical space is limited or where horizontal cable routing is preferred, such as in control cabinets or machine side installations.
Parameters
High Construction
Size
10B
Cable Entry
Side Entry
Material
Aluminium
Colour
Grey
Locking Type
Double Lever
Material
Metal
Seal
NBR
Rated Temperature
-40...+125℃
Protection Grade
IP65
Part Number
Thread Size
19300100536
M25
19300100537
M32
09300100532
PG21
09300100533
PG29
Product Overview
Production Performance
The high construction structure provides extra internal space, making it easier to accommodate thicker cables or more complex wiring arrangements. This design helps reduce cable stress and improves installation convenience.
Equipped with a double lever locking system, the hood ensures a firm and balanced connection with the base, offering better stability under vibration or movement. This is particularly useful in industrial environments where equipment operates continuously.

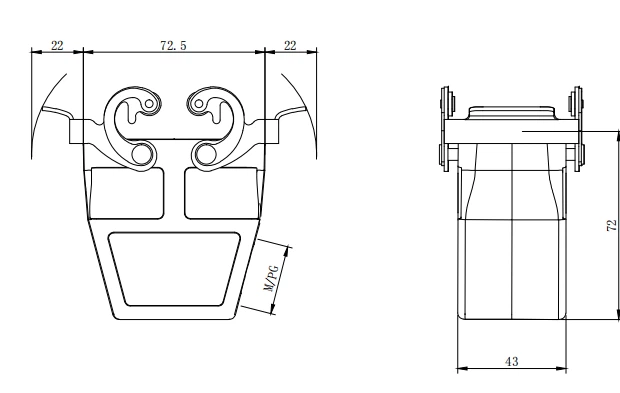

Technical Specifications
Structure: High Construction
Surface: Powder Coated
Colour: Grey
Limited Temperature: -40°C to +125°C
Protection Grade: IP65
Thread Type: M / PG
Zhejiang Haoke Electric Co. Ltd. has equipped itself with a laboratory for quality control, used for routine product testing and performance verification. The laboratory is primarily configured with equipment tailored to the actual operating environments of heavy-duty connectors, focusing on product stability and reliability.
For routine testing, it is equipped with dimensional measuring tools and electrical performance testing equipment to check the product's structural dimensions, performance, and conductivity. These are crucial fundamental indicators for connectors.
The laboratory also conducts environmental tests, such as simple protective performance confirmation , temperature rise testing, and durability testing, to simulate product use in industrial environments.
In daily production, the laboratory is used not only for new product verification but also for batch product sampling inspections, helping to identify problems promptly and ensuring consistency of outgoing products.
Overall, Haoke's laboratory is configured for practicality, focusing on testing the product itself, without pursuing complexity but meeting actual needs, providing a stable guarantee for product quality.
01
Great Quality
02
Advanced Equipment
03
Excellent Team
04
Professional Service

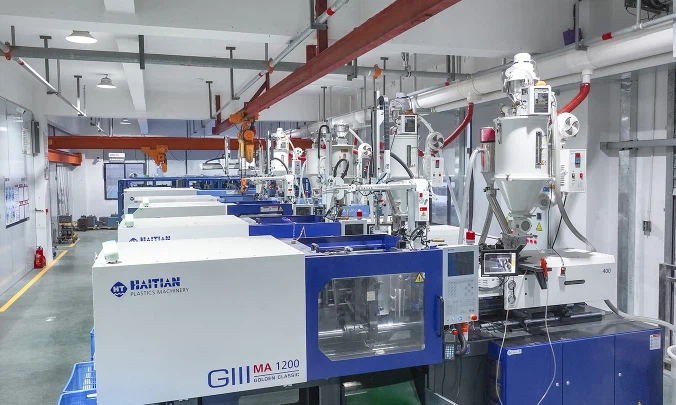

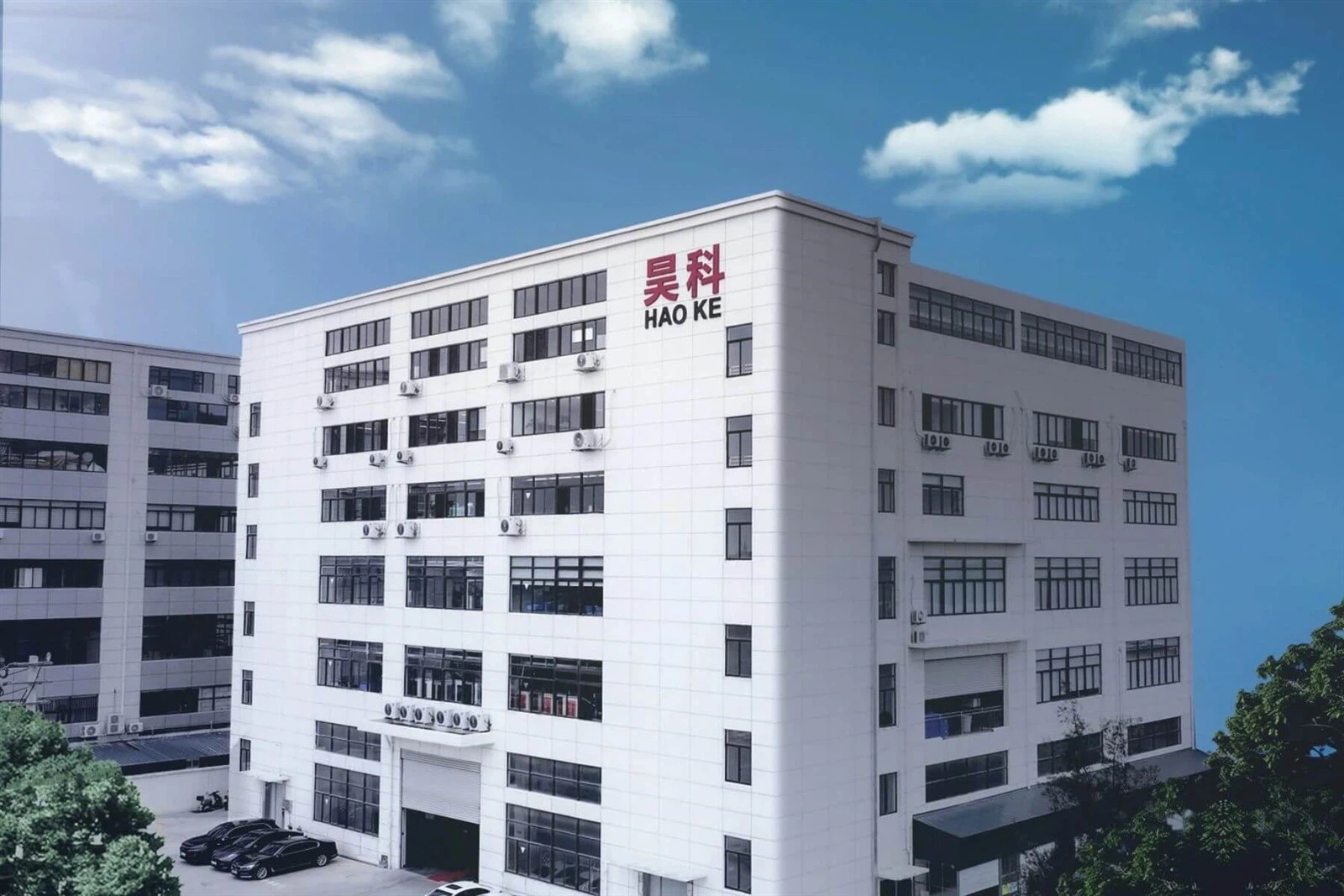

Our factory & Test equipment

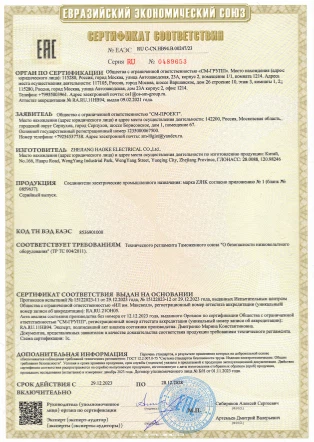

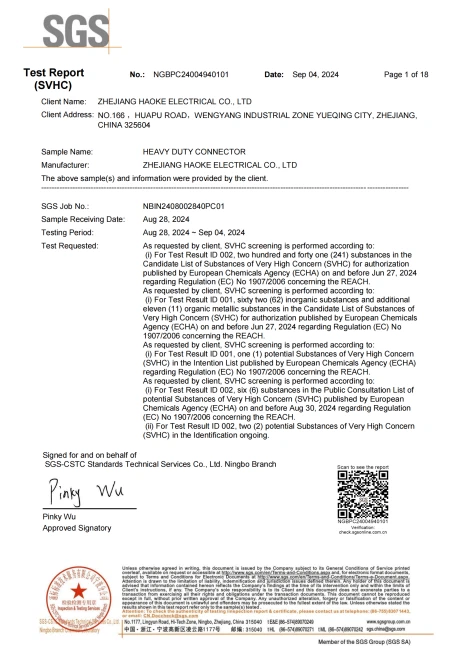

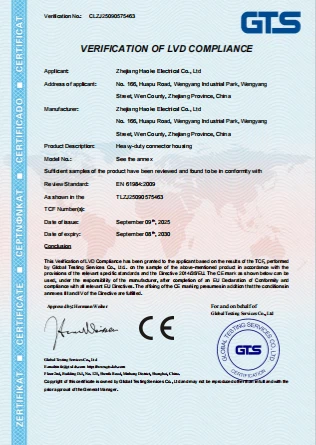

Our Certificates
EAC
CE
REACH
FREQUENT QUESTIONS
Yes, the high construction design provides more internal space, so it's easier to work with larger cable diameters without making installation difficult.
It depends on the setup. Side entry works better when space above the connector is limited or when cables need to run horizontally along the equipment.
The two levers help distribute the locking force more evenly, which makes the connection more stable, especially in applications with vibration.
Overall yes. The structure is straightforward, and the locking mechanism allows quick assembly and disassembly without complicated tools.
It can be used in outdoor or semi-outdoor environments when properly assembled with sealing components, offering protection against dust and water splashes.
