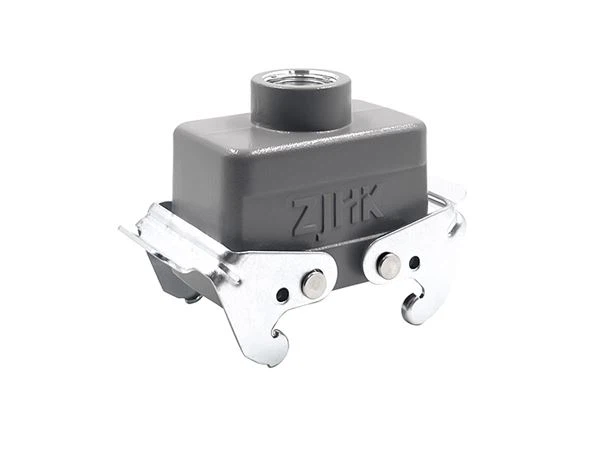

h10B-TE-2L
This is a 10B size metal housing. It is designed for industrial rectangular connectors. The housing has an opening at the top and comes with two clips. The clips can be either metal or stainless steel. It is more robust than a standard 2-bolt housing and is suitable for many high-frequency vibration industrial applications.
technical Parameters
Size
10B
Cable Entry
Top Entry
Material
Aluminium die-cast
Colour
Grey
Lever Type
2Levers
Material
Metal
Hoods Seal
NBR
Limiting Temperature
-40...+125℃
Degree of Protection
IP65
Part Number
Thread Size
19300101430
M20
19300101431
PG16
Product Overview
Details
This metal casing is made primarily of die-cast aluminum. Because it's made of aluminum, the casing is lightweight and highly impact-resistant. Furthermore, the exterior undergoes a powder-coated ring finish, providing excellent resistance to salt spray and water. This casing is widely used in various industrial fields such as wind power generation, power systems, and rail transportation. It's a good choice for stable electrical connections.
Drawing
Levers: Stainless or Iron
Surface Finish: Powder-coated
Colour: Grey
Operating Temperature: -40°C to +125°C
Protection Rating: IP65
Thread Type: M or PG
factory & equipment
Our Certificate
UKCA
CE
EAC
applications
Heavy duty connectors provide reliable connection solutions for hot runner molds, temperature control units, and extrusion equipment, with3 pin,16 pin and 24 pin configurations as industry standards. Designed for high-temperature and high current environments, they ensure stable connections between heaters, thermocouples, and control systems. Compliant with industry standards and built to withstand vibration, our connectors enhance operational stability, minimize downtime, and extend equipment service life in demanding hot runner applications.
servo bending machines
Servo bending machines are gradually replacing traditional hydraulic bending equipment and becoming the mainstream machine type in modern manufacturing workshops. Under this trend, the internal electrical systems of the equipment are also becoming increasingly complex, placing higher demands on the reliability and professionalism of the connection methods. As a result, heavy-duty connectors are being used more and more widely in servo bending machines.By integrating multiple loops into a single connection interface, heavy-duty connectors not only simplify the internal wiring structure of the equipment but also improve the overall reliability and sophistication of the system.
Company Profile
If we compare a factory to a "system," then Zhejiang Haoke Electric is more like a consistently stable industrial piece of equipment.The front end is its perception layer the marketing and sales team, constantly active at trade shows, customer sites, and overseas communications, bringing back demands from different countries and industries.For customers, the feeling is more direct: it's not about doing well once or twice, but about every batch of goods and every delivery being within the expected range.
Professional Team
The middle is the "core control unit"-the technology and R&D team, translating these demands into structural designs, mold solutions, and product optimizations.The back end is the execution system production and quality control, from die casting and machining to assembly, transforming designs into deliverable products step by step.The core logic of the entire system is actually quite simple: to transform complex industrial connections into stable, repeatable, and deliverable products.Over the years, Haoke has focused on heavy-duty connectors: from early mold development to the gradual improvement of its HA, HE, HD, and HSB series, and now its ability to cover different application scenarios, it has followed a rather solid path.
Frequent questions
Yes, as long as you choose the right inserts, it can handle both power and signal transmission in one connector.
Very little. Just basic checks to ensure the locking levers and seals are in good condition, especially in harsh environments.
Yes, the structure is designed for repeated use, and the locking system helps maintain consistent performance over time.
