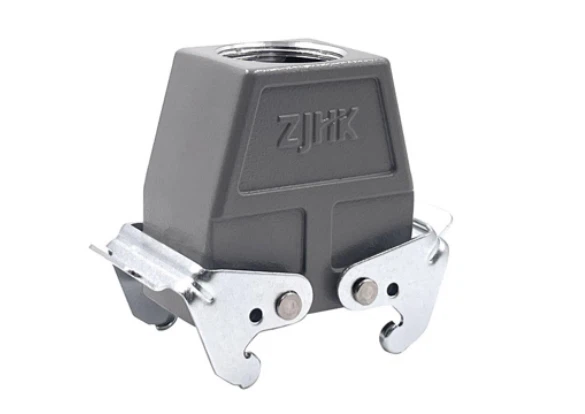

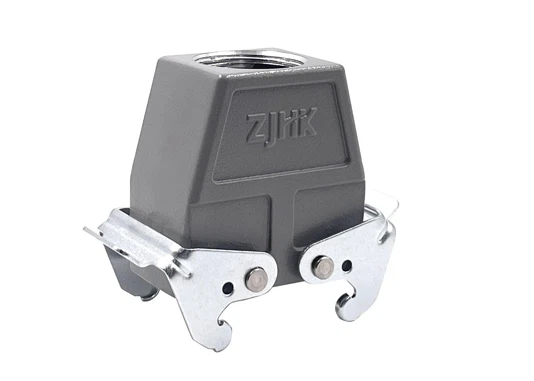

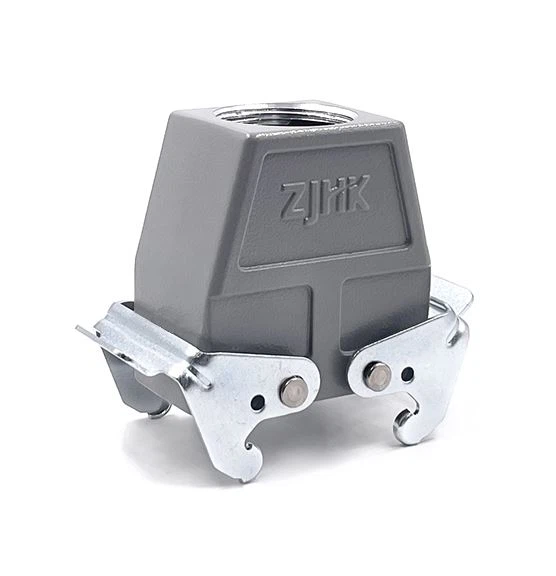

h10B-TEH-2L
This is a 10B industrial rectangular connector housing. The housing features top entry wiring with two latches. It mates with a 4B base to form a strong locking mechanism. What's more, the tall design allows for a larger thread diameter, enabling it to accommodate more wires internally.
technical Specification
High Structural Hoods
Size
10B
Cable Entry
Top Entry
Material
Aluminium
Colour
Grey
Lever Type
2Levers
Material
Metal galvanized
Seal
NBR
Rated Temperature
-40 to +125℃
Protection Grade
IP65
Part Number
Thread Size
19300100436
M25
19300100437
M32
09300100432
PG21
09300100433
PG29
Products Description
Products Performance
This connector features a housing made of aluminum alloy, a lightweight yet highly durable material. The die casting process ensures a high degree of formability. A ring-blasting treatment on the surface enhances its corrosion resistance and water resistance. While aluminum's excellent thermal conductivity helps dissipate heat from the machine.

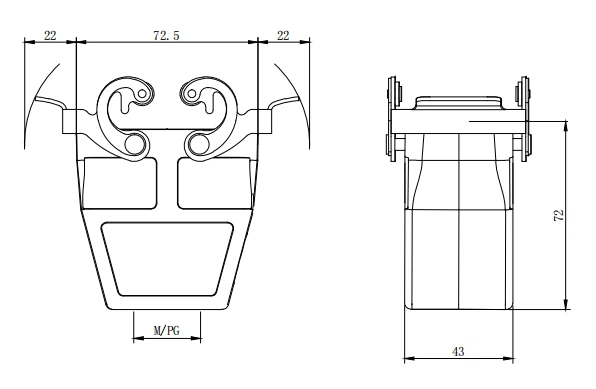

Datasheet
Construction: High Struction
Surface: Powder-coated
Colour: Grey
Limiting Temperature Range: -40°C to +125°C
Protection Rating: IP65
Thread Type: M or PG
package and delivery
package
ZJHK prioritizes practicality and standardization in its packaging. Products undergo a basic inspection before leaving the warehouse to ensure there are no issues before entering the packaging process. Generally, individual protection is applied first, along with corresponding labels for easy identification of model and quantity. Outer cartons are strategically arranged according to product specifications to minimize the risk of compression or misalignment during transport. The overall approach is to protect the products while ensuring customers can easily identify them upon receipt.
delivery
ZJHK offers flexible options for shipping. Small batches or samples are typically shipped via express delivery services such as FedEx and UPS, which are faster. Bulk orders can be arranged by air or sea freight according to customer needs. The company has a relatively stable order scheduling and shipping schedule, and regular orders can usually be shipped shortly after confirmation. For frequently used models, if there is sufficient stock, shipping will be even faster.
Application Scenarios
In the lighting truss, heavy-duty connectors are responsible for connecting various lighting equipment, control systems and power lines, supporting the simultaneous operation of multiple high-power lamps. Through modular connectors, lighting systems can be quickly assembled and disassembled according to different stage requirements. In addition, the power and signals of the lighting equipment are transmitted through a reliable connector system to ensure the accuracy and stability of the lighting effect.
Radio control systems
Radio control systems are commonly found in:
Cranes, overhead cranes
construction machinery
AGV and mobile platform
Special industrial equipment
These devices generally require:
Heavy-duty connectors support pre-wiring and plug-and-play , making them ideal for modular system designs and helping to improve overall equipment operating efficiency.
factory & equipment
Our Certificate

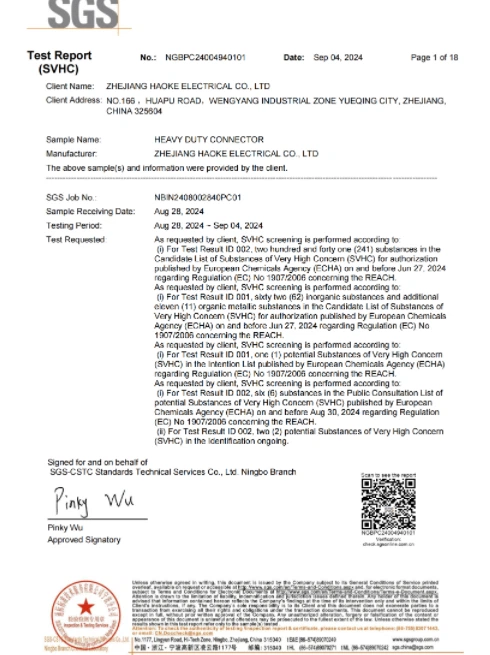

REACH

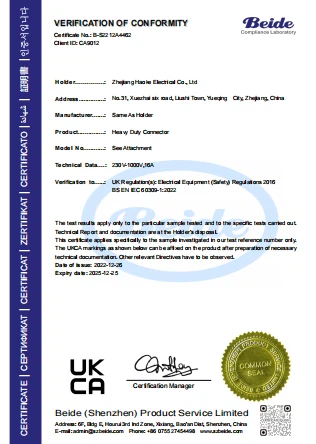

UKCA

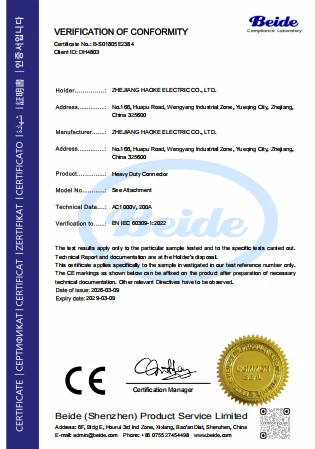

CE
