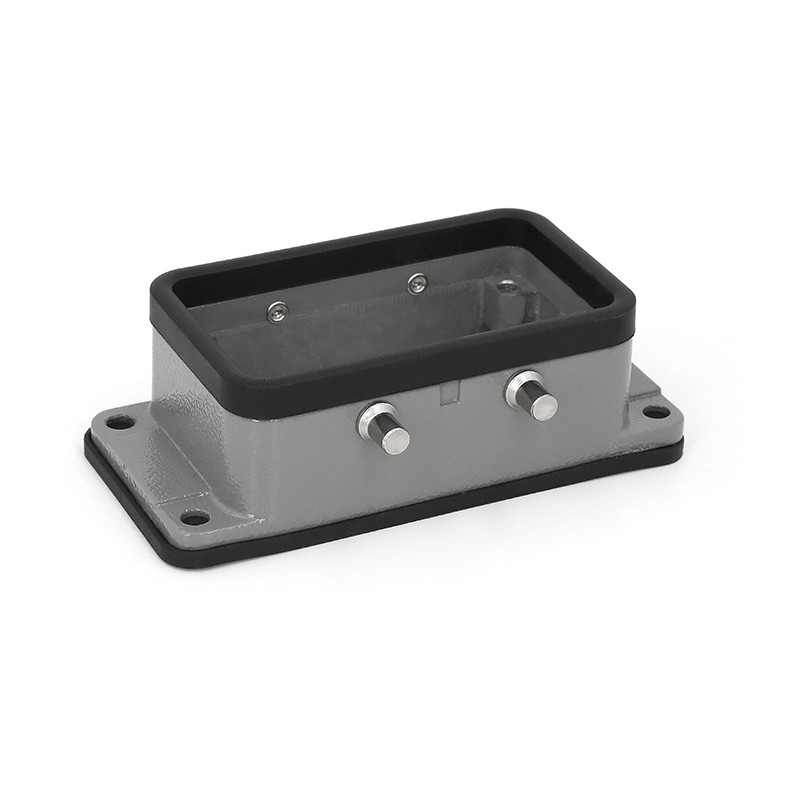

4 Bolts Bulkhead Mounting 10B Housings

4 Bolts Bulkhead Mounting 10B Housings
Details:
This is a 10B unsealed base with four bolt posts. Because it lacks a fixed base plate, cables can be routed from the bottom, offering greater wiring flexibility and making it suitable for devices requiring concealed cable management.
Send Inquiry
Download
Description
Technical Parameters
product-589-409
 introduction

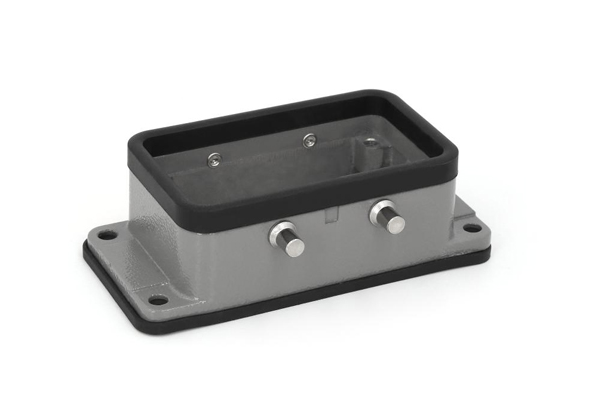

This is a 10B unsealed base with four bolt posts. Because it lacks a fixed base plate, cables can be routed from the bottom, offering greater wiring flexibility and making it suitable for devices requiring concealed cable management. For installation, the four bolts feature a double-locking top cover, providing greater security compared to a single-locking top cover.



Parameters

Bulkhead Mounting



Size

10B

Cable Entry

Bottom Entry

Material

Aluminium

Colour

Grey

Bolts Number

4

Material

Mental galvanized

Seal

NBR

Rated Temperature

-40...+125℃

Protection Grade

IP65

Part Number

Type

09300100300

H10B-BK-4B

09300100302

H10B-BK-4B-CV

09300100317

H10B-BK-4B-MCV

Products Description

product-542-345

Details

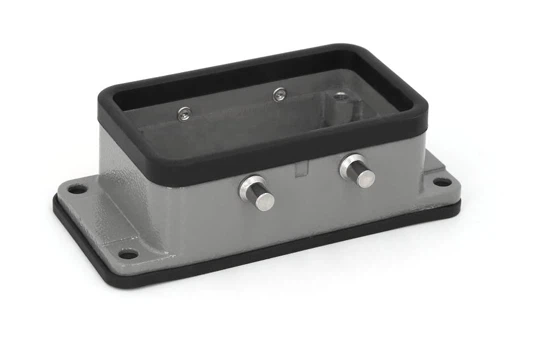

This base is made entirely of die-cast aluminum, which provides excellent hardness. This also enhances its corrosion resistance and waterproofing. When used with a sealing ring and outer shell, this type of base offers superior protection, meeting the needs of challenging industrial environments.

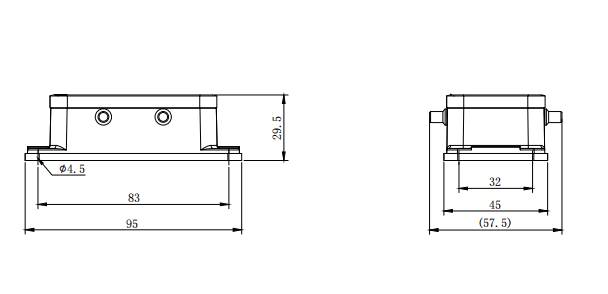

Datasheet



Surface:                                                          Powder-coated

Cable Entry:                                                    Bottom Entry

Colour:                                                                   Grey

Limiting Temperature Range:                  -40°C to +125°C

Protection Rating:                                                IP65

Thread Type:                                                    M or PG

product-608-294

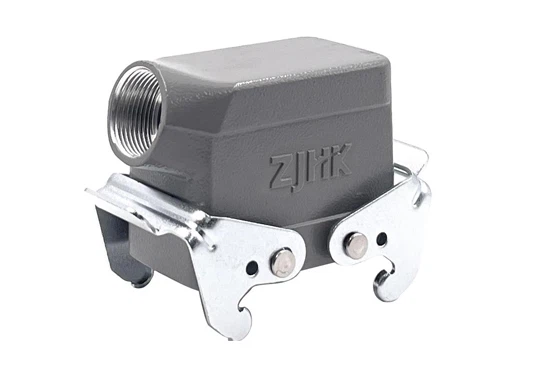

adaptable Hoods
product-585-414

请替换当前内容 Cowers Commercial Cleaning Robot Landing Case:China Mobile Software Park

product-546-363

Cowers Commercial Cleaning Robot Landing Case:China Mobile Software Park

product-556-388

Cowers Commercial Cleaning Robot Landing Case:China Mobile Software Park

product-533-372

Cowers Commercial Cleaning Robot Landing Case:China Mobile Software Park


warehouse factory & Equipment

product-471-340
product-470-345
product-470-344
product-473-344

application scenarios



conveyor systems


Transmitting power supply and control signals

Supports higher current to ensure stable motor operation

PLC, frequency converter, sensor, encoder, etc.

Achieve integrated transmission of power and signals within the same interface

Rapid docking between multiple conveyor sections

Facilitates equipment transportation, installation, and future expansion.

Quick plug-in/plug-out reduces downtime for maintenance.

info-634-411

electric engineering machinery



info-739-394

As the global construction machinery industry moves towards green and intelligent development, electrified construction equipment is gradually becoming an important trend in the industry.Addressing the strong vibration characteristics of construction machinery, ZJHK heavy-duty connectors offer a cold-press connection method that ensures a tight connection between the plug and socket, preventing loosening even under severe vibration . Simultaneously, the internal conductive components utilize highly elastic materials, guaranteeing good electrical contact during vibration and ensuring the continuity and stability of power and signal transmission, providing reliable protection for the safe operation of construction machinery.
