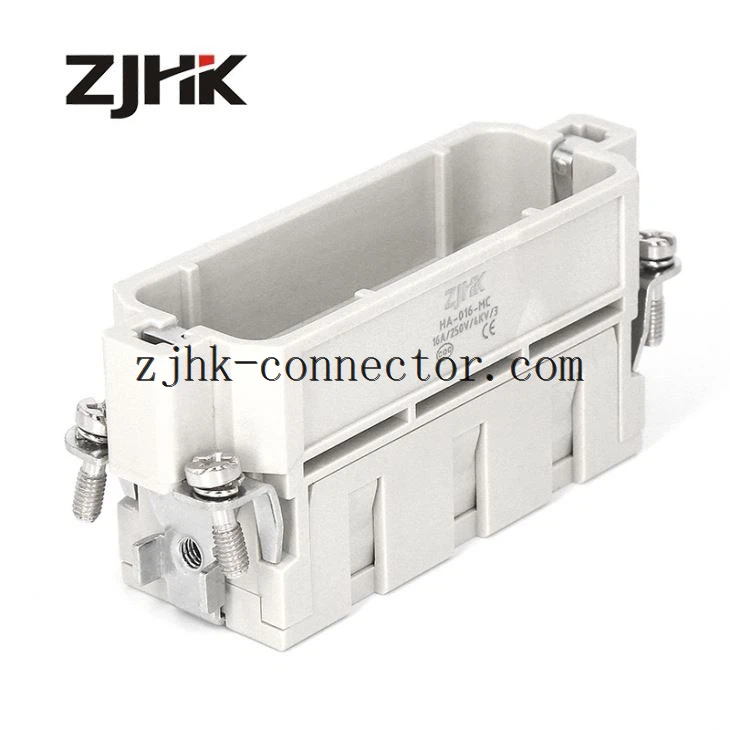

HA-016（Crimp) | |
Order number | 09200163001（Male） |
Type | HA Slim crimp inserts |
Gender | M and F |
Shell size | 10 A |
Limiting temperature | -40℃...+125℃ |
Flammability Acc.To UL94 | V0 |
Number of Pins | 16+PE |
Rated current | 16A |
Rated voltage | 230V /400V (Line Voltage / Phase Voltage) |
Rated Impulse Voltage | 4KV |
Contact Resistance | <= 3mΩ |
Insulation Resistance | >=1010Ω |
Wire Cross Section Range | 0.14 – 4.0 Square millimeter |
Wire Gauge | 26 - 12 AWG |

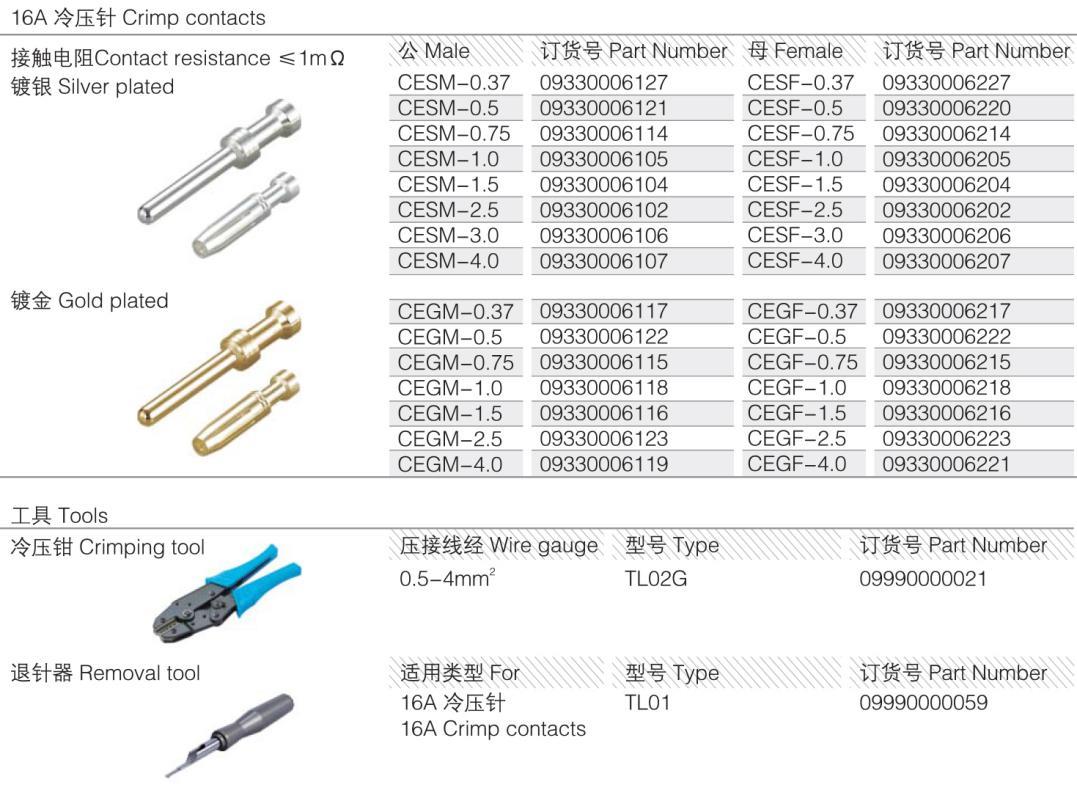

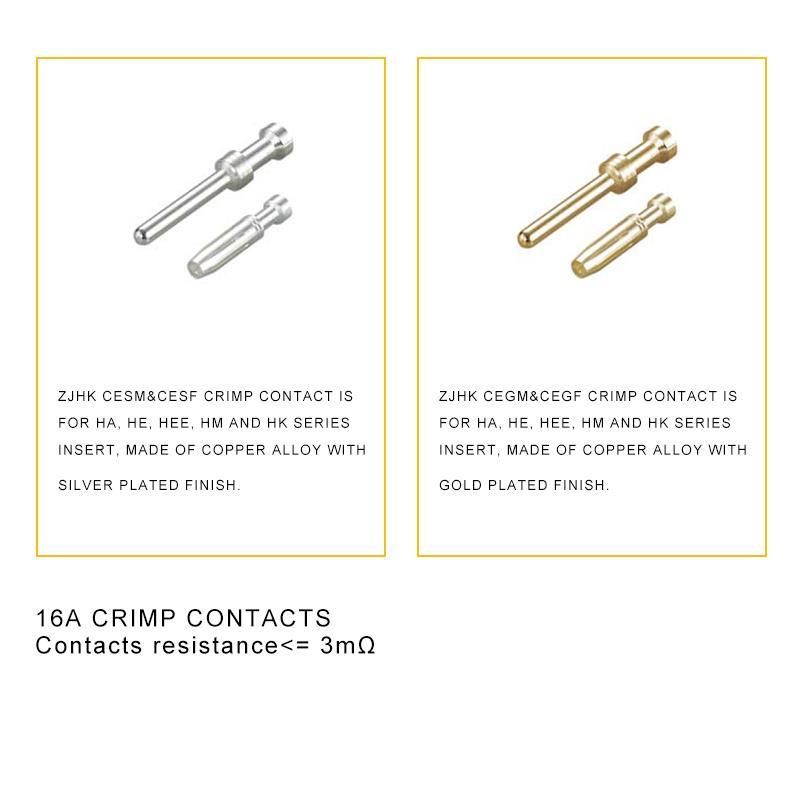

Note：Please Order Crimp Contacts Separately

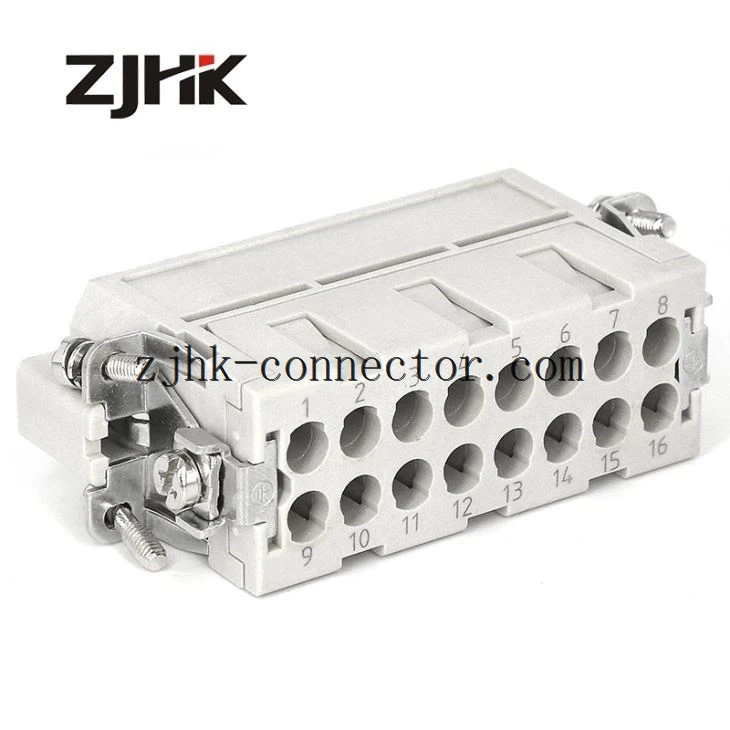

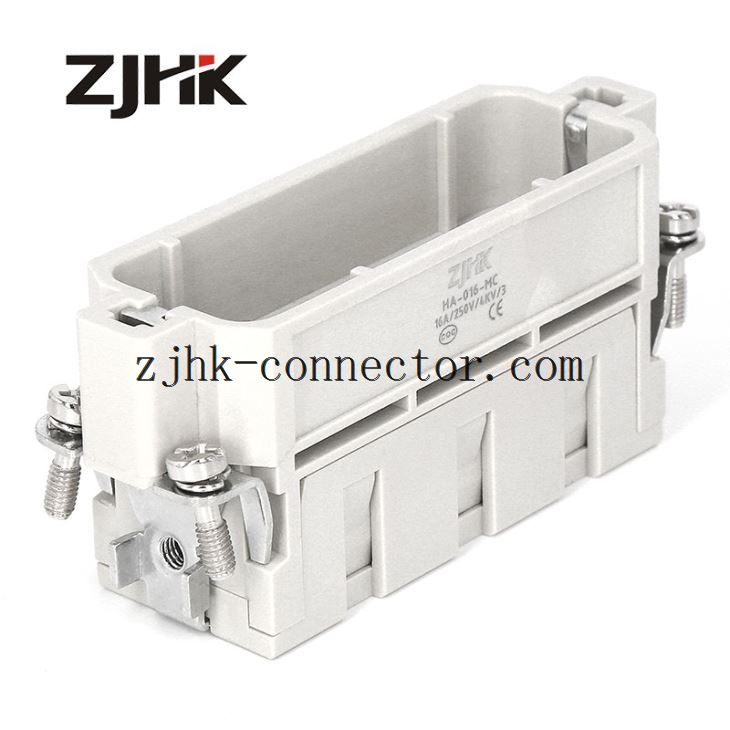

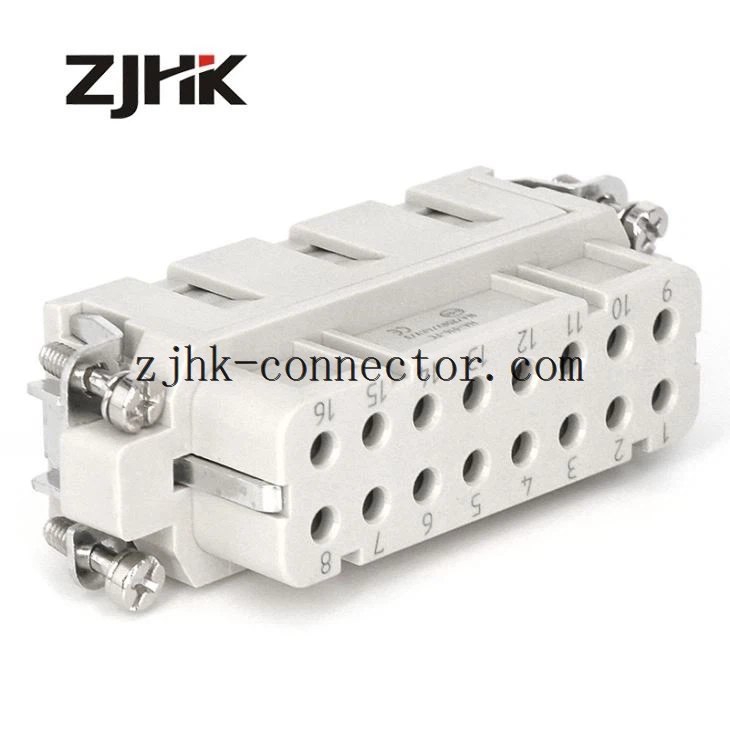

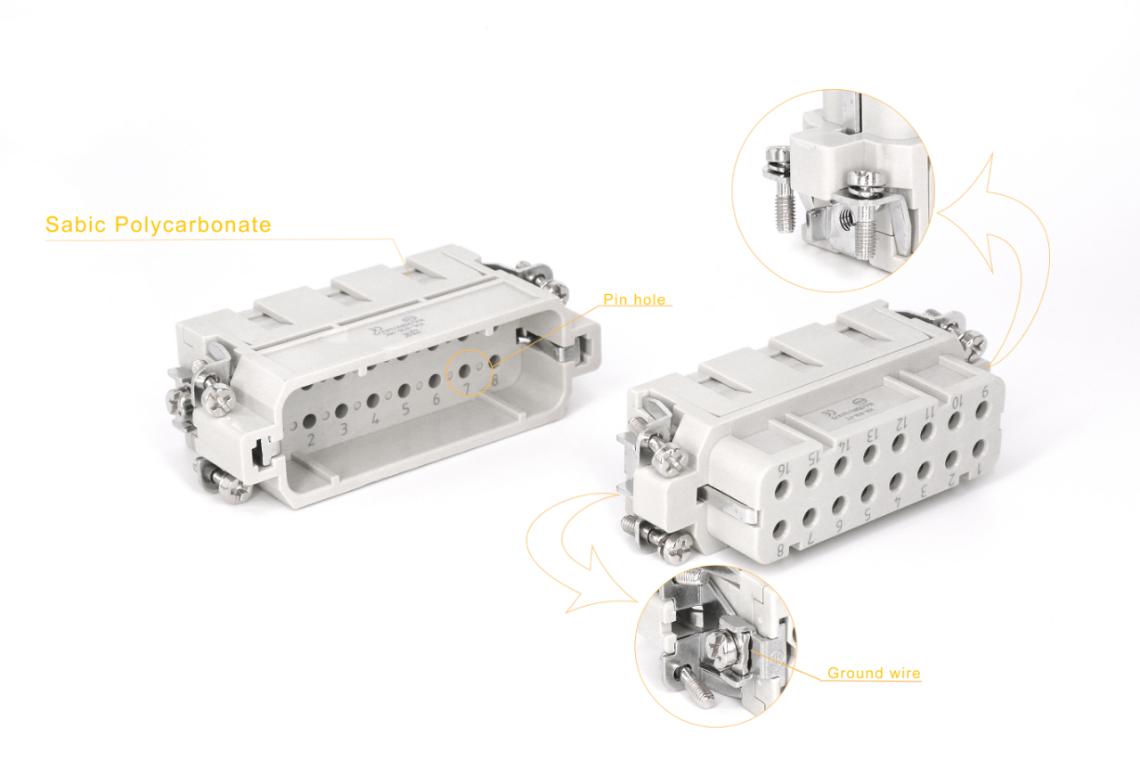

Details view：
Drawing：
Additional content：
