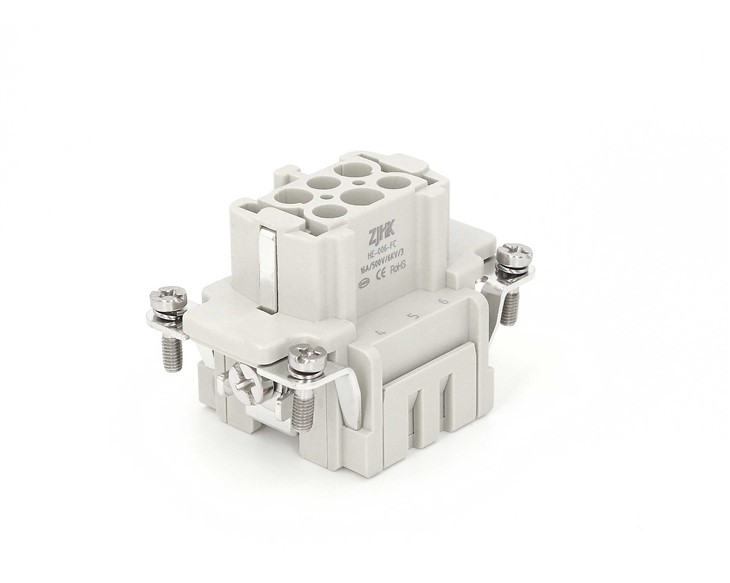

This female connector features a 16A rated current and employs cold-pressing technology, eliminating the need for heating while maintaining stable electrical performance. Its connection is both firm and reliable, demonstrating strong resistance to vibration and shock-making it an ideal solution for demanding industrial environments. Pay attention that crimping contacts should be purchased additionally.

product-700-52

Product Parameter (specification)

Termination method	Crimp Terminal
Gender	Female
Model	HE-006-FC
Rated Current	16A
Rated Voltage	500V
Rated Impulse Voltage	6kV
Pollution Degree	Ⅲ
Rated Voltage Acc.to UL Csa	600V
Insulation Resistance	≥10¹⁰Ω
Material	Polycarbonate
Limiting Temperature	-40℃...+125℃
Flammability Acc.to UL94	V0
Mechanical Working Life-mating Cycles	≥500
Contacts
Material	Copper Alloy
Surface	Hard-gold Plated
Surface	Hard-silver Plated
Contact Resistance	≤1mΩ
Wire Gauge	0.14-4.0mm²
AWG	26-12
Stripping Length	7.5mm

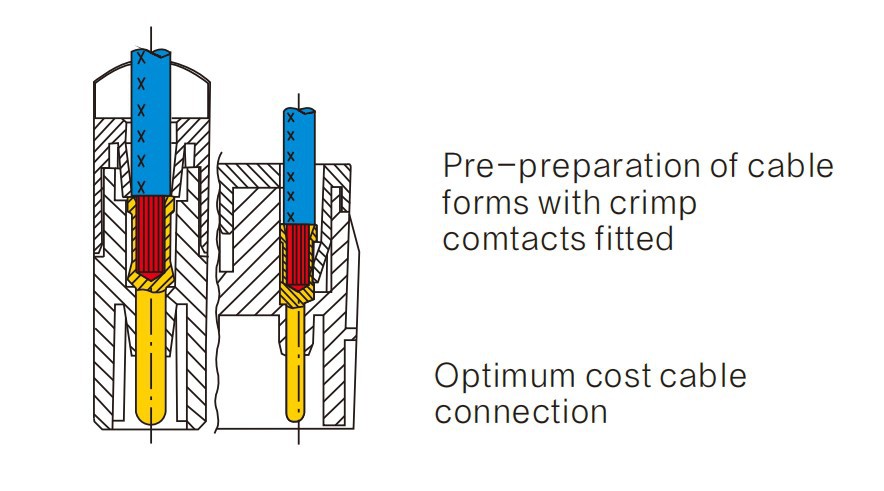

Crimp termination advantage

The cold-pressed clamp applies pressure to tightly bond the contact piece with the wire, ensuring a firm and reliable connection. It has strong anti-vibration and anti-shock capabilities, significantly enhancing the service life of heavy-duty connectors and the reliability of the system.

product details View

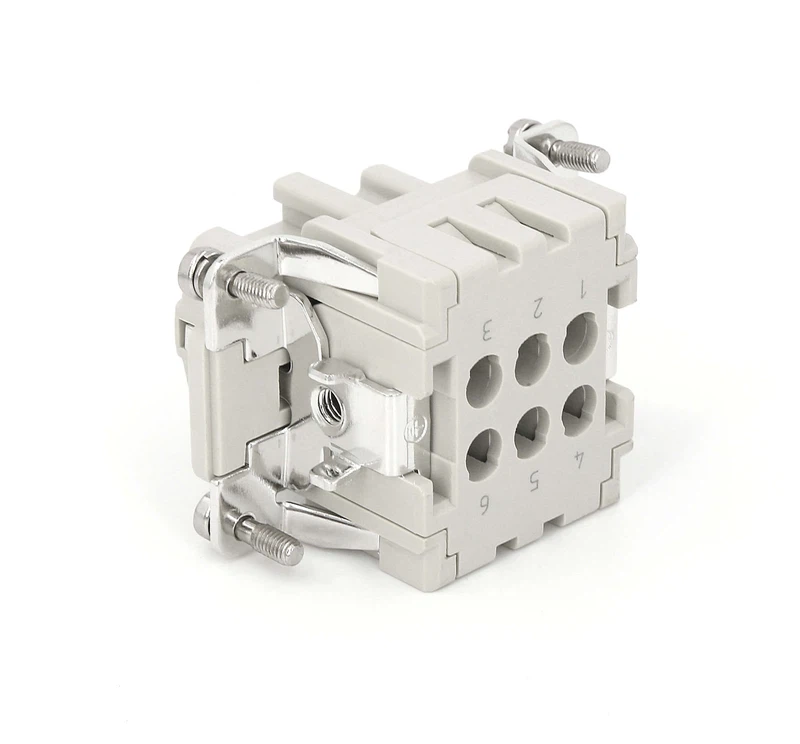

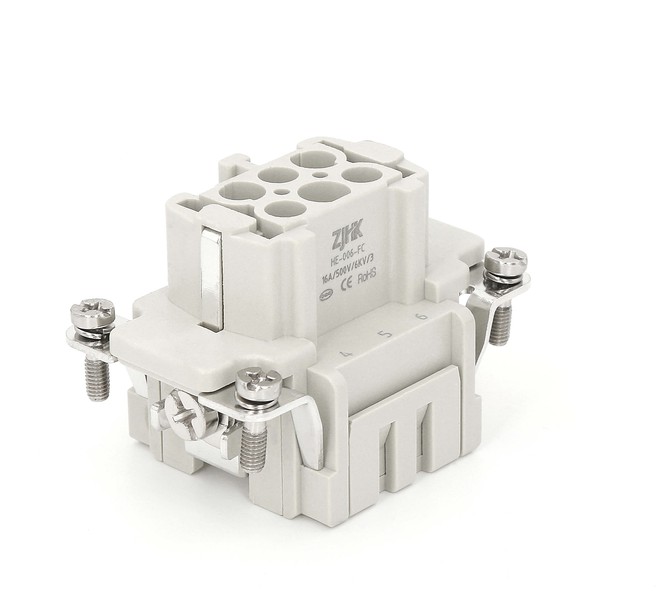

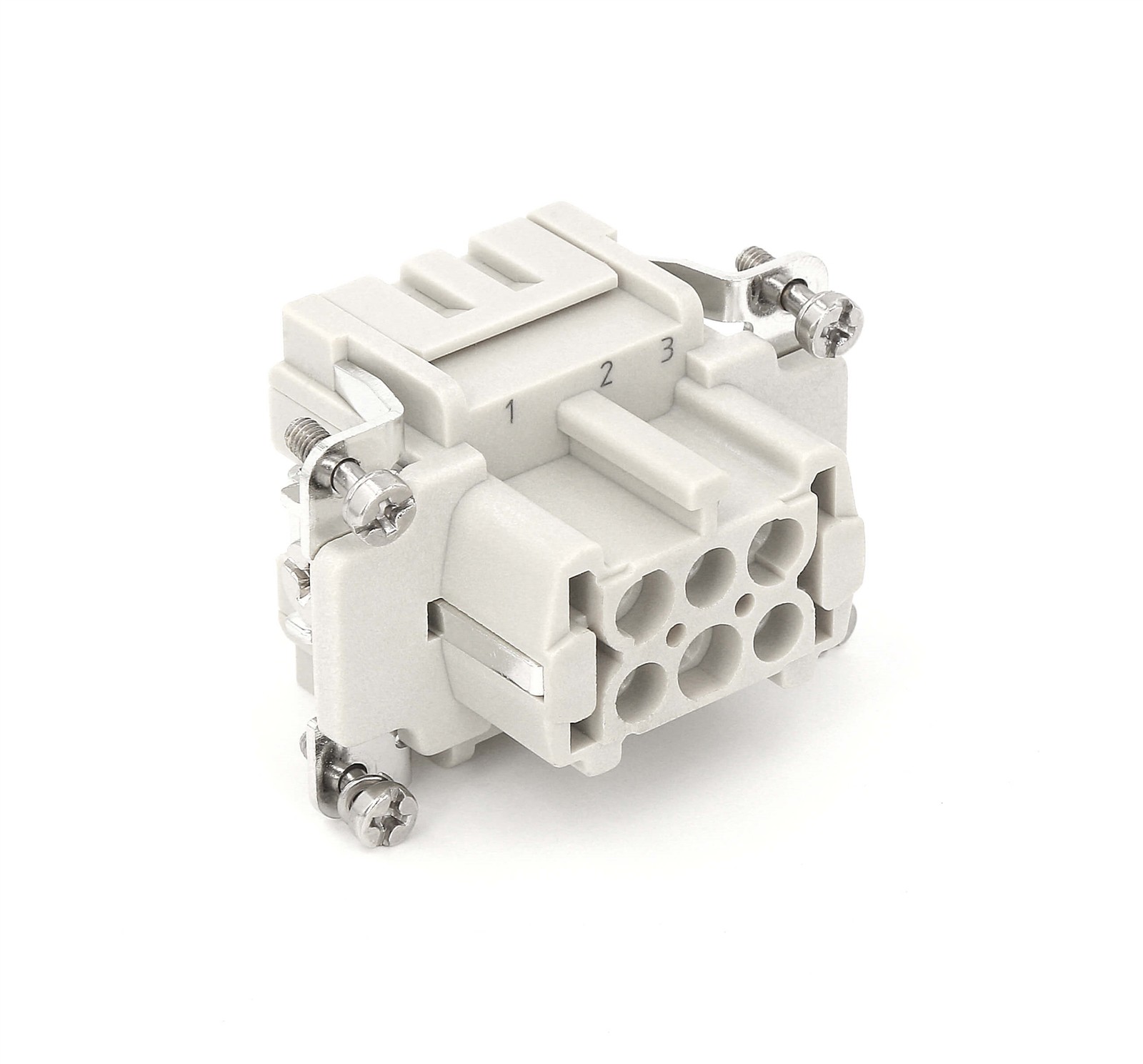

The light gray plastic casing functions as insulation protection, ensures adaptability, and provides installation fixation, whereas the metal screws on the side are utilized for assembly and fastening purposes.

After using the tool to crimp the cable and the pin, insert it directly into the hole at the bottom of the ferrule, and the inside of the ferrule will lock the pin.

Crimping contacts

CESM

Material：Cooper

Surface：Silver plated

Gender：Male

Amp：16A

CESM

Material：Cooper

Surface：Silver plated

Gender：Female

Amp：16A

CEGM

Material：Cooper

Surface：Gold plated

Gender：Male

Amp：16A

CEGF

Material：Cooper

Surface：Gold plated

Gender：Male

Amp：16A

These are 16A female crimping contacts which are suitable for HE-006-FC and its wire gauge is 0.14-4.0mm ²(AWG:26-12).

Precautions for use

Reference temperature environment:30℃
Operating ambient temperature:(average daily temperature -40℃...+125℃
Please pay attention to safety when using.

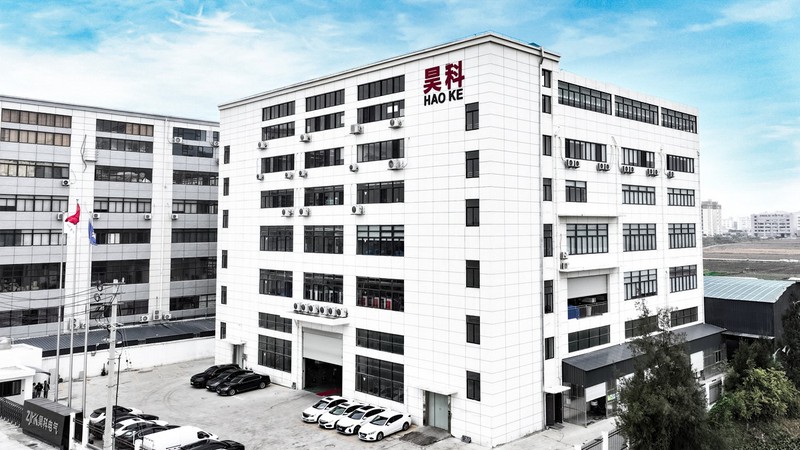

Zhejiang Haoke Electric Co.,Ltd.

We are a private enterprise dedicated to the research and development, design, manufacturing, sales and after-sales service of heavy-duty connectors, with a registered capital of 10 million yuan.

Since its establishment, the company has developed rapidly with its excellent talent team, strong technical force and thoughtful after-sales service. It has successively launched HA, HE, HEE, HD, HDD, HSB, HK, HQ and other series of products, with thousands of combinations to meet the electrical or signal connection needs of different fields and occasions. The products are widely used in industrial automation, hot runner molds, rail transportation, equipment manufacturing, industrial system connections, and information and control fields.

Professional team

We continue to innovate in the research and development of new products, provide customers with high-quality solutions, and ensure the stability of products when customers use them.

7x24 hours inquiry

Complete after-sales department

135+

Staffs

15+

Engineers

Sales

6,000,000 us dollar

Factory Area

10,000mm ²

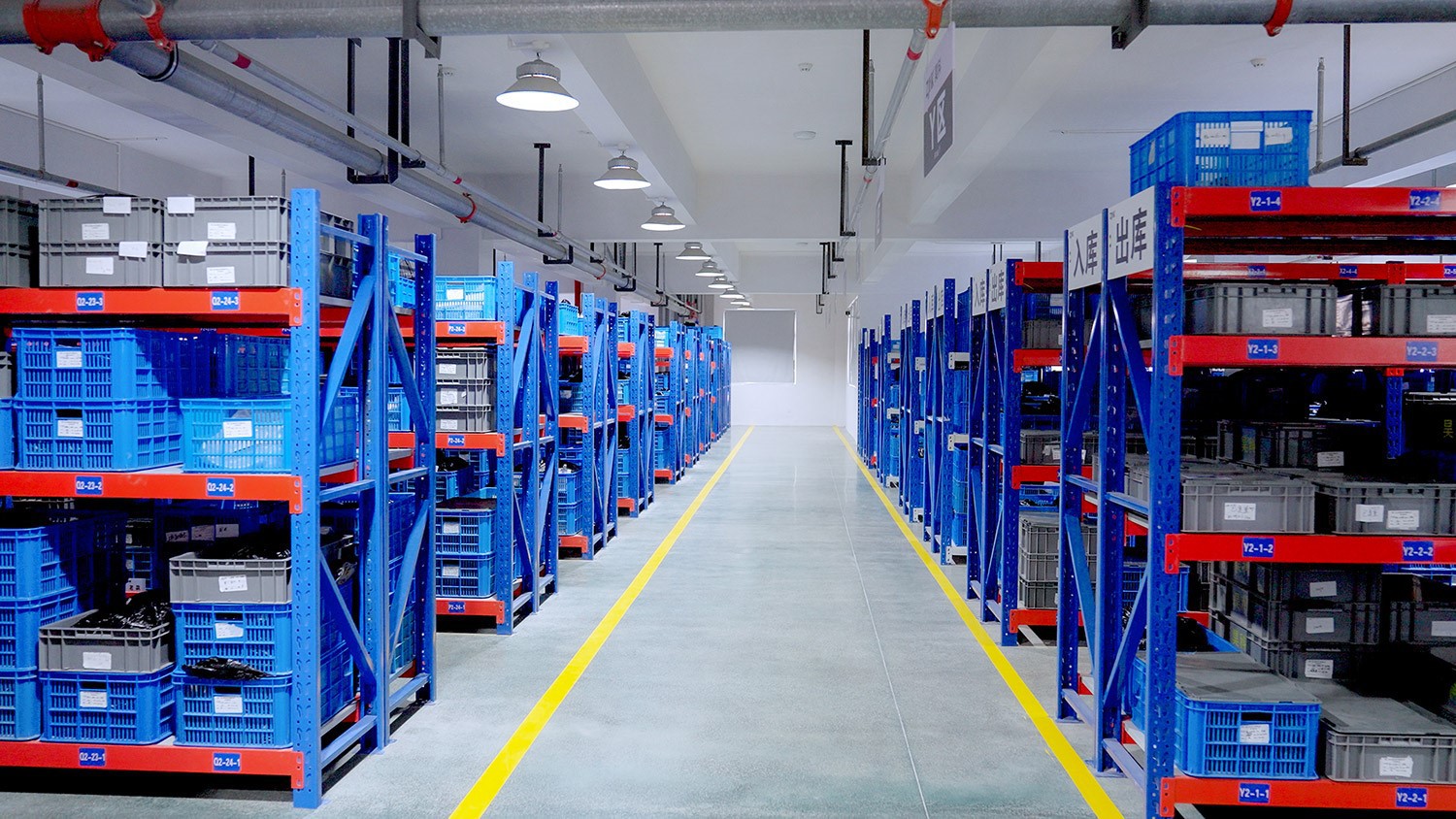

Our Warehouse
