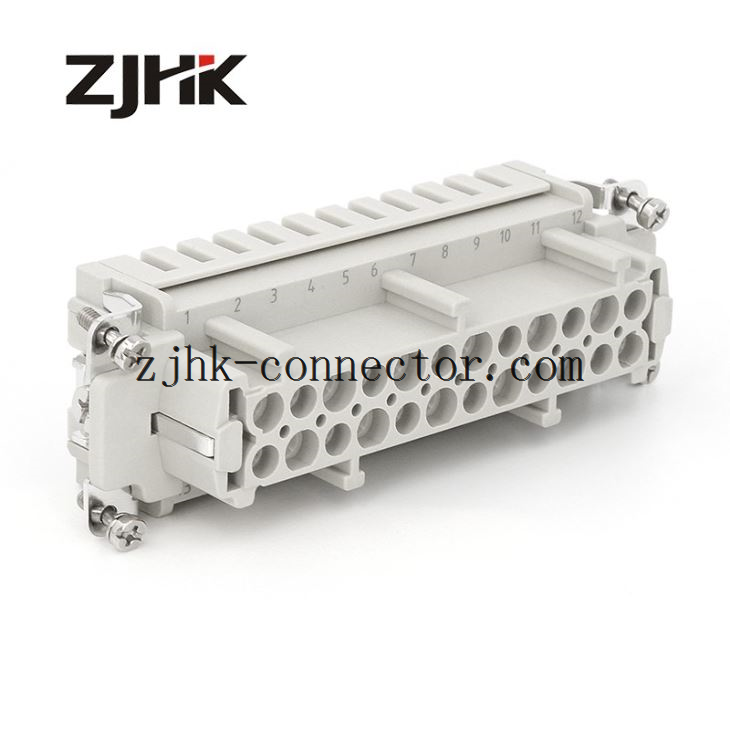

The 09330242616&09330162716 is a 24-contact rectangular HE S Male &Female Cage-clamp Terminal Insert, 24B size, 0.14 to 2.5mm² wire cross section area with cage-clamp terminals. Made of polycarbonate, RAL 7032 (light grey) color insert.
500 Mating cycles
UL94V-0 Flammability rating
Applications
Industrial
Type: | Male&Female Insert |
Contact Connection Type: | Cage-Clamp |
Positions: | 24P |
Rating - Current: | 16A |
Rating - Voltage: | 500V |
Mounting Code-Series Size: | 24B |
Wire Range: | 26-14 AWG |
Number of Contacts: | 24 + Ground |
Position Marking: | 1-24 |
Material, Insert: | Polycarbonate |
Termination Method: | Cage-Clamp Terminal |
Temperature Rating: | -40 to 125 Degree C (-40 to 257 Degree F) |
Material Rating: | UL 94 V-0 |
Manufacturer Model: | HE |
Stripping length | 7-9mm |
Surface of contacts | Silver plated |

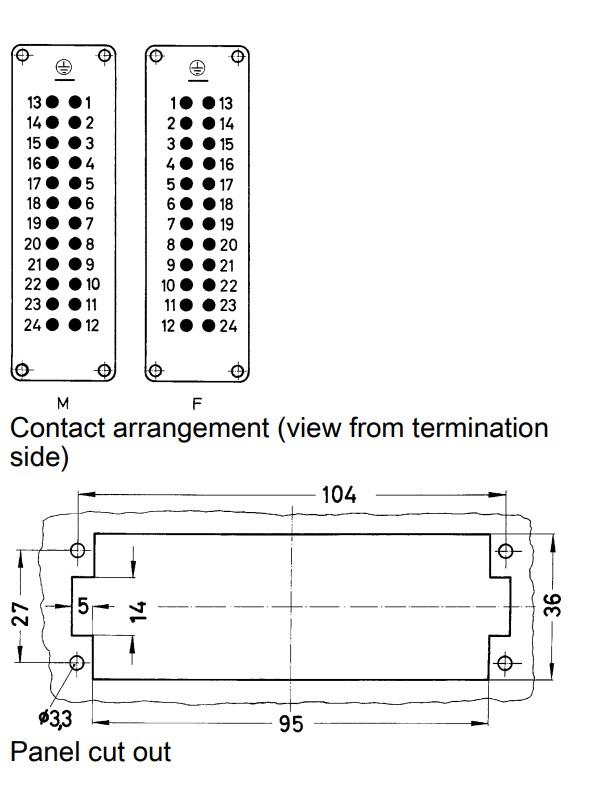

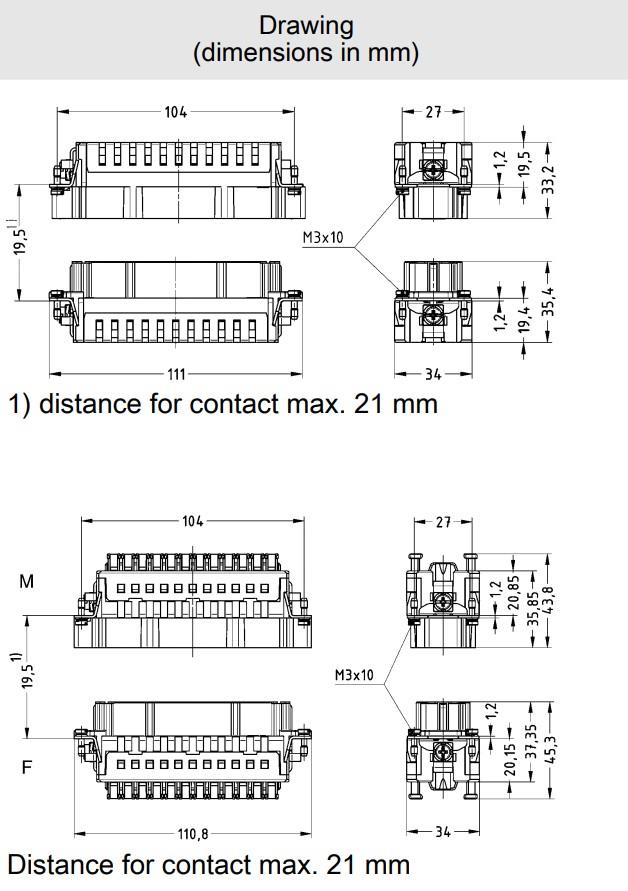

Details of inserts （male&female）
FAQ：
1. what’s your advantage compare with Harting、ILME、TE（SIBAS）?
Our HDC can replace Harting、ILME、TE（SIBAS）perfectly,most of clients who use those brand before,After the test ,they choose us.Also our price is lower than Harting 40-50%.
2. Is your company fully automated?
Yes,Most of our production is fully automated.
3. Q:Your rectangular connector seems perfect but what's the difference between you and other suppliers?Because I find some cheaper price from others
A: Our HDC special for Industrial 4.0 solution are high quality customized.We use the imported material SABIC 3412 for heavy duty connector inserts .Not all the HDC Material are the same !!
4.Q:I were use Harting brand before,can i tell you their order number to help me match ?
A:Of course you can help you.Actually , in order to facilitate the use of harting's customers, we have set the order number to be the same as HARTING, so that customers can match and replace.
