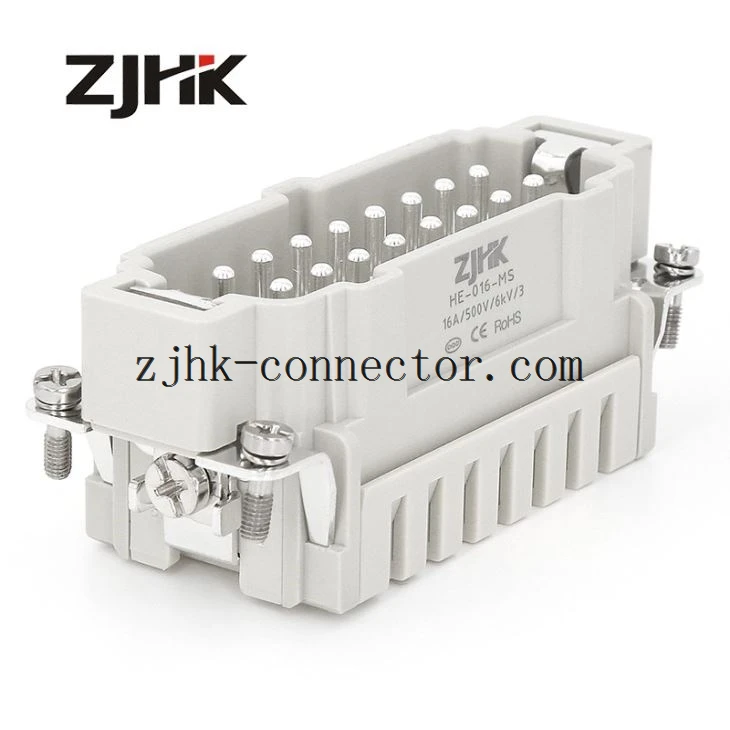

Connector Male&Female Insert 16 Contacts |
|
Product Attribute | Attribute Value |
Series | HE |
Number of Contacts | 16 |
Primary Type | Rectangular |
Termination method | Cage-clamp termination |
Size | 16B |
Number of contacts | 16 |
Conductor cross-section | 0.14 ... 2.5 mm² |
Conductor cross-section | AWG 26 ... AWG 14 |
Rated current | 16A |
Rated voltage acc. to UL | 600V |
Limiting temperature | -40 ... +125 °C |
Contact resistance | ≤ 3 mΩ |
Material (insert) | Polycarbonate |
RoHS | compliant with exemption |
Details view：
Overview
HAOKE Industrial Connectors – HE Series of Industrial Electrical, Optical and Pneumatic Crimp Contact & Inserts:
The Haoke Modular® series is designed for combining different Assembly details transmission media in one connector. The multifaceted system of inserts, contacts, frames, hoods and housings fulfils individual customer requirements. To continuously enable new configurations, the Haoke-Modular® series growths constantly. More than 50 different modules for different transmission media are available. These cover various termination techniques.
The patented Haoke-Modular® hinged frame enables the configuration of all modules in the well-accepted ZJHK® hoods and housings size 6B-48B. Further additional solutions are available, e.g. suitable docking frames for drawer units. Individual customer requirements can be realized. Combining various transmission media in one single connector results in lower expenditures in installation time and production downtime. Space savings and cost savings are further benefits. The easy extension possibilities secure a future safe design.
FAQ:
1.What’s your material for inserts ?
A:In order to guarantee the quality of the products, we use the imported material SABIC 3412 for injection molding.
2.What about SABIC company?
SABIC is a Saudi diversified manufacturing company, active in petrochemicals, chemicals, industrial polymers, fertilizers, and metals. It is the largest public company in the Middle East and Saudi Arabia as listed in Tadawul. 70% of SABIC's shares are owned by Saudi Aramco.
3.Do you have any agent around word?
Yes ,We are honored to be favored by Korean and Italian (Northern) customers and have signed an agency agreement.
4.what’s your advantage compare with Harting、ILME、TE（SIBAS）?
Our HDC can replace Harting、ILME、TE（SIBAS）perfectly,most of clients who use those brand before,After the test ,they choose us.Also our price is lower than Harting 40-50%.
Hot Tags: 16 PIN heavy duty clamp insert replace han e, China, manufacturers, suppliers, factory
