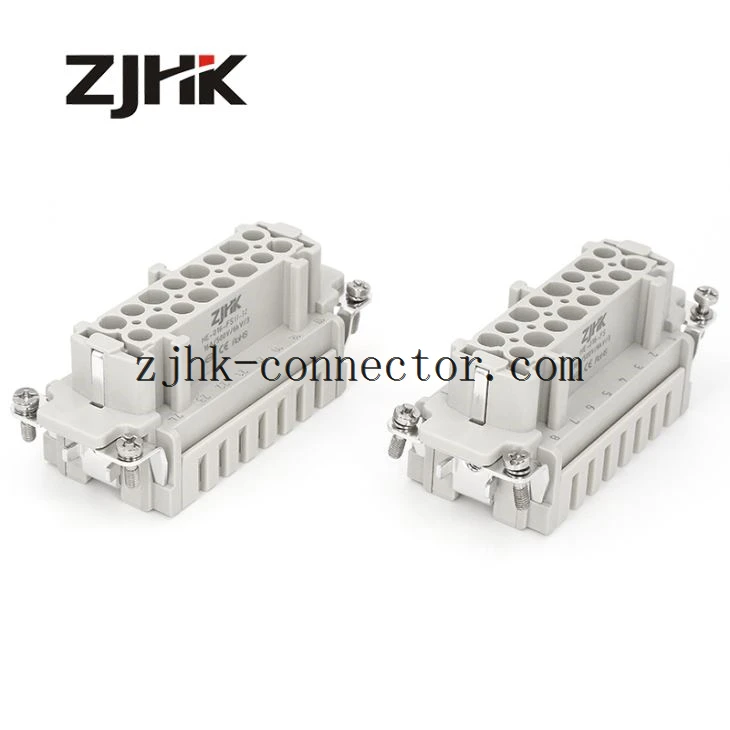

Termination method | Cage clamp inserts |
Gender | Male and Feamle |
Size | 32B |
Number of contacts | 32 |
PE contact | Yes |
Contact identification | 16...32 |
Details | You need two inserts for a complete assembly! |
Conductor cross-section | 0.14 ... 2.5 mm² |
Rated current | 16 A |
Rated voltage | 500V |
Rated impulse voltage | 6 kV |
Rated voltage acc. to CSA | 600 V |
Stripping length | 7 ... 9 mm |
Mating cycles | ≥ 500 |
Material (contacts) | Copper alloy |
Surface (contacts) | Silver plated |
China RoHS | 50 |
Packaging size | 1 |
Country of origin | China |
Design of drawing :

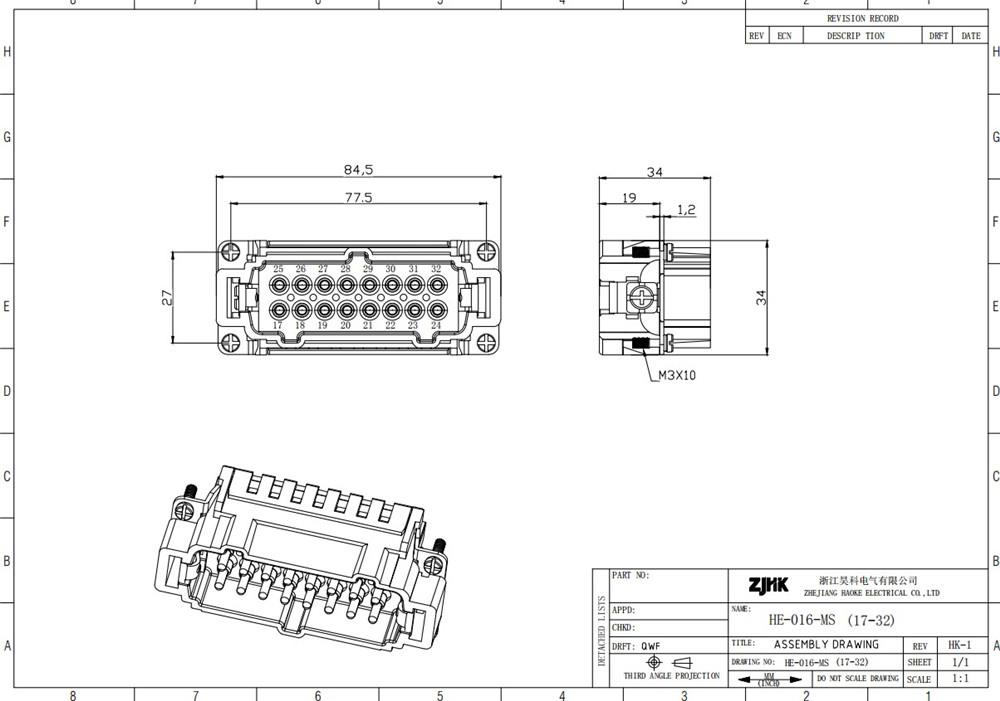

HE-016-MS(17-32)

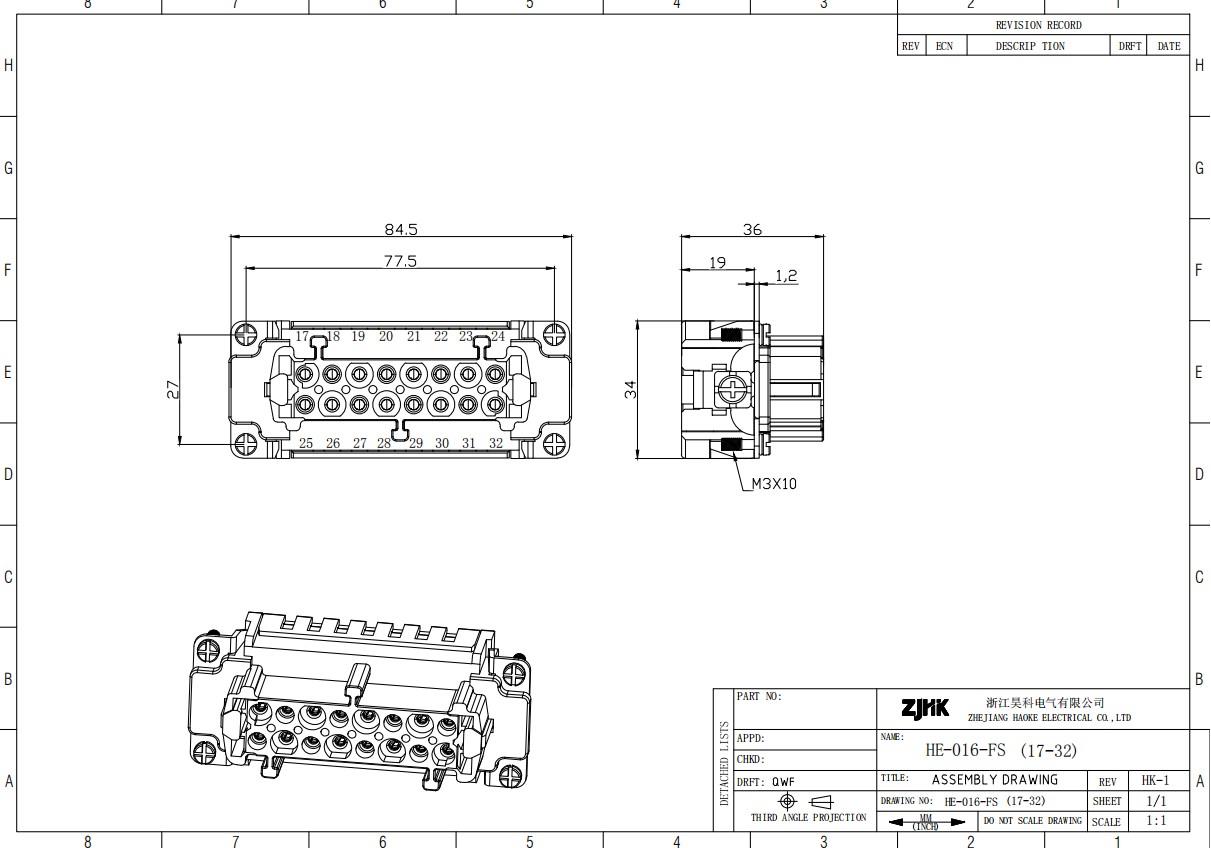

HE-016-FS(17-32)
Click here to check HE-016-MS(1-16) &HE-016-FS(1-16) (16 PIN heavy duty clamp insert replace Han E )
How to choose insert for my project?
A:When selecting heavy duty connector ,we need to choose as follow:
1) Rated voltage and current
2) Poles of connector
3) Choosing hood and housing type
4) Accessories (selecting cable gland )
Inserts explanation:

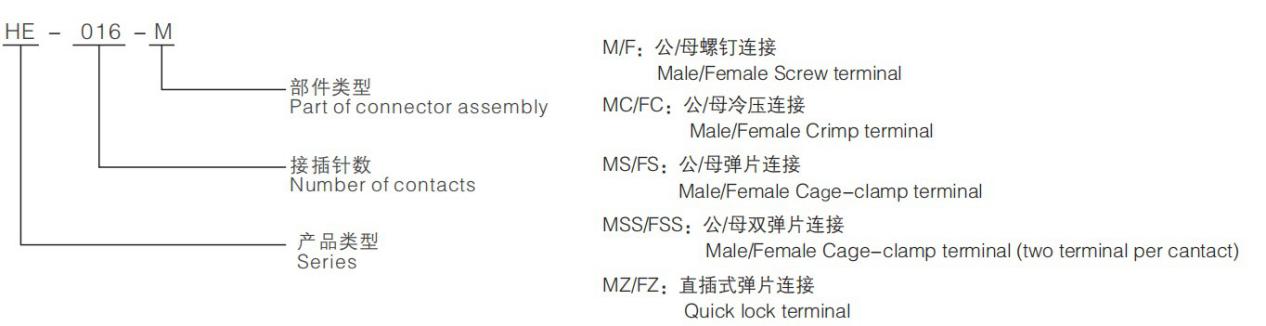

I. e:HE-016-Means male inserts of 16 poles in HE series.
Type of hoods and housings

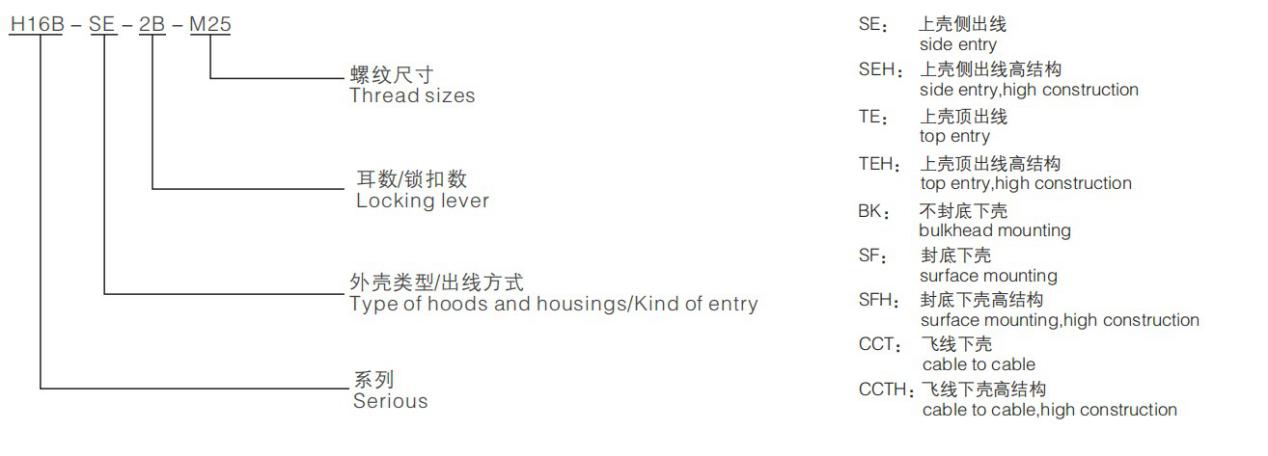

i. e:H16B-SE-2B-M25 means a side entry hood with M25 thread in H16B Series.
If you have any questions please feel free to contact us.
