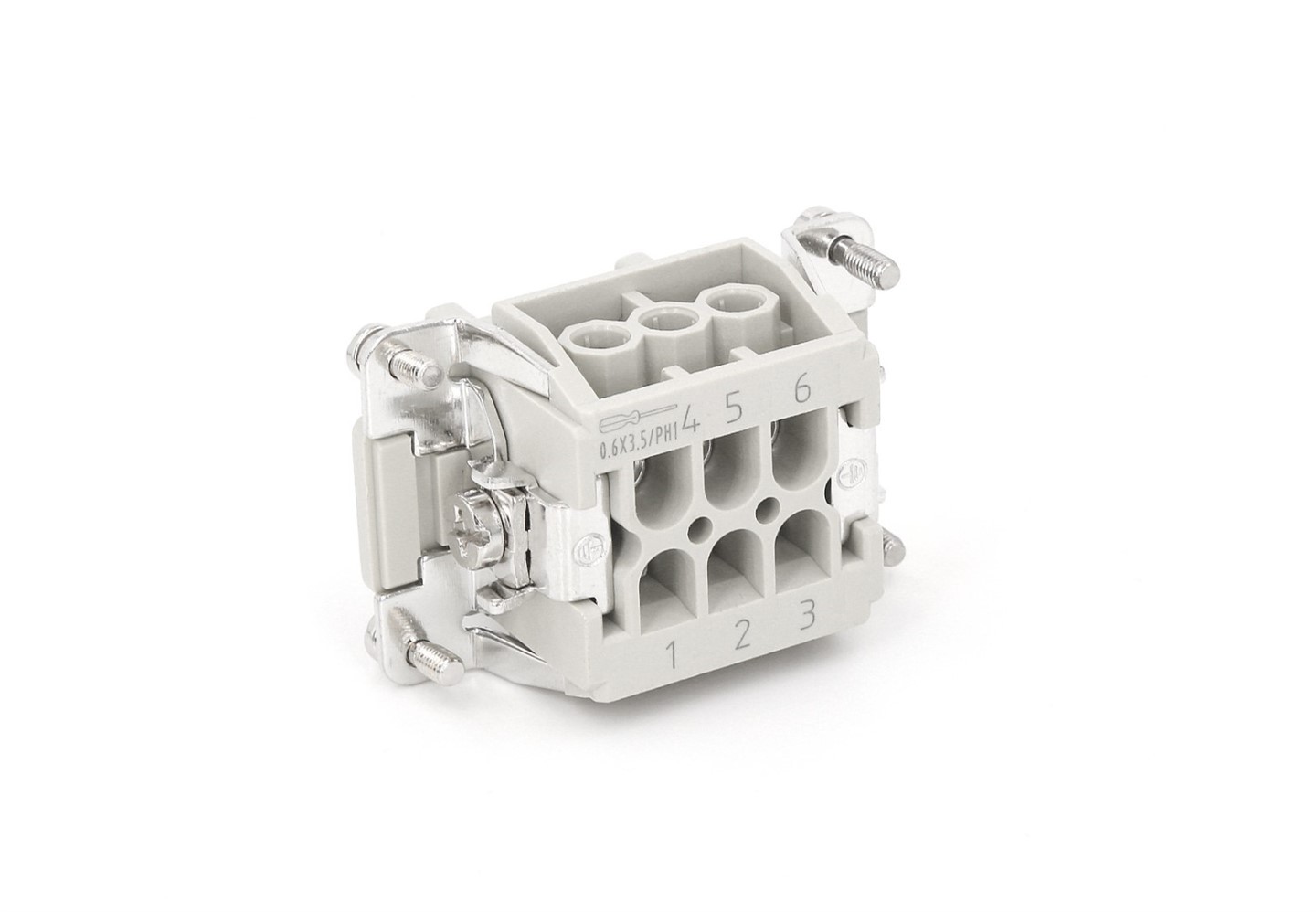

Products Description
The light gray plastic casing functions as insulation protection, ensures adaptability, and provides installation fixation, whereas the metal screws on the side are utilized for assembly and fastening purposes.
Its connection method is to lock the bottom inserted wire with the screw on the side of the ferrule, which is the most traditional connection method. Connect the cable at the bottom.
Product Parameter (specification)
Termination method
Screw Terminal
Gender
Female
Model
HE-006-F
Rated Current
16A
Rated Voltage
500V
Rated Impulse Voltage
6kV
Pollution Degree
Ⅲ
Rated Voltage Acc.to UL Csa
600V
Insulation Resistance
≥1010Ω
Material
Polycarbonate
Limiting Temperature
-40℃...+125℃
Flammability Acc.to UL94
V0
Mechanical Working Life-mating Cycles
≥500
Contacts
Copper Alloy
Contact Resistance
≤1mΩ
Wire Gauge
0.14-2.5mm²
AWG
26-14
Tightening Torque
0.5Nm
Product Material
We use the light grey plastic casing include insulation protection, compatibility guarantee and installation fixation. The metal screws on the side are used for the assembly and fastening of components.
Quick Lock VS Srew Terminal
Screw terminal connection doesn't require professional tools, only a screwdriver is needed for installation and are easy to operate during installation. It is necessary to first fix the base on the cabinet, then connect the wires to the core components, and finally fix the core components on the base.During installation, it is necessary to pay attention to the force of tightening the screws.In fact, it is difficult for people to control the tightening force of screw termination. Therefore, under the premise of a more abundant budget, we recommend quick lock terminal type more.
Applications

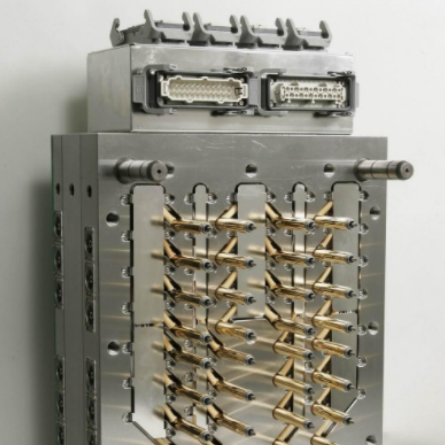

Haoke connectors offer a diverse product range, capable of satisfying the transmission of current, pneumatic signals, and electrical signals. They are widely applied in sectors such as energy, hot runner systems, machinery, and other related fields.
certifications
UL
CE
UKCA
EAC
REACH
RoHS
01
Company introduction
Zhejiang Haoke Electric Co., Ltd. is a private enterprise dedicated to the research, design, manufacturing, sales, and after-sales service of【heavy-duty connectors】.
02
Our team
We have professional technical teams, production teams and sales teams, providing one-stop services and solutions, all to win your trust.
03
Packing & Transportation
We select cardboard boxes and pallets for packaging according to the characteristics of the goods; Ocean transportation, air transportation, railway transportation, and road transportation are all supported.
FAQ
01.What's your advantage compare with Harting,ILME,TE(SIBAS)?
02.What's the delivery time?
03.How is the quality of your products?
04.If there is a product quality problem, how to solve it?
05.What harsh environments can your heavy-duty connectors adapt to?
06.What is the plug-in life of the product?
