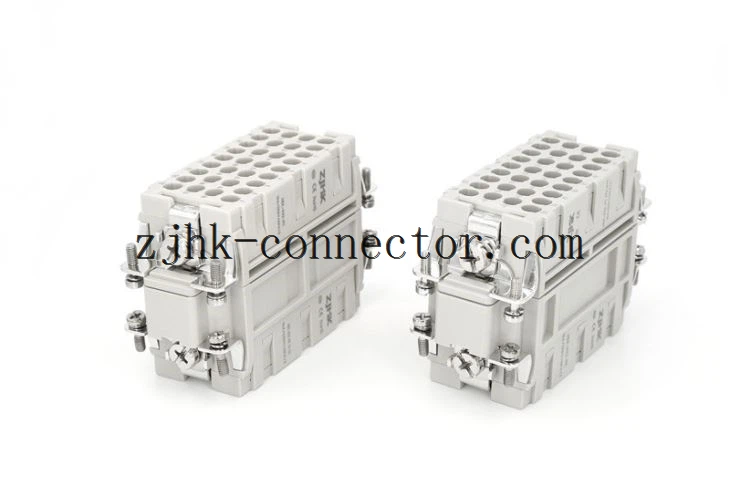

Current Carrying Capacity

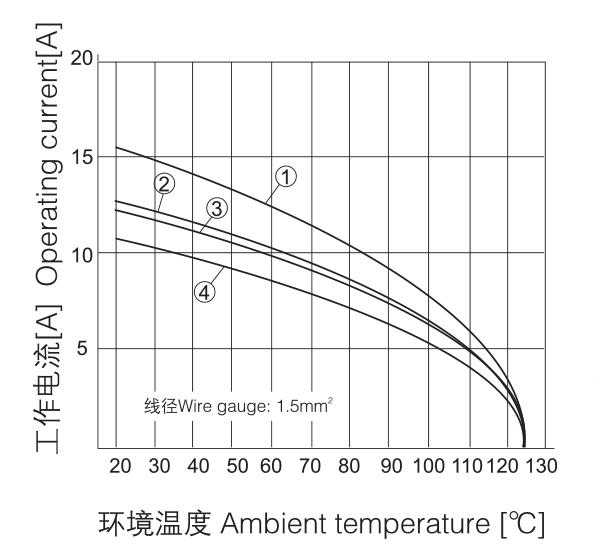

THEE current carrying is limited by maximum temperature of materials for insertsand contacts including termunals.
Measuring and testing techniques according to DIN EN 60512-5
①HEE-010
②HEE-018
③HEE-032
④HEE-046
①HEE-010
②HEE-018
③HEE-032
④HEE-046
①HEE-010
②HEE-018
③HEE-032
④HEE-046
Modified contact arrangement up to 1000V
The ZJHK® connector series HEE equipped with all contacts many be used for voltage up to 500V~pollution degree 3.A modified contact loading arragngement permits use up to 1000V~pollution degree also in pollution degree C.

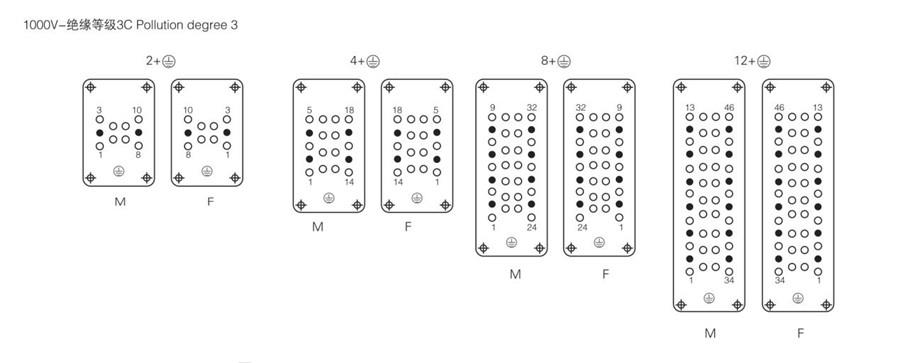

Contact arrangement view from termination side
600V
●Working contact M :Male insert
○Without contact F :Female insert
1000V
●Working contact M :Male insert
○Without contact F :Female insert
About ZJHK® Crimp contacts,we choose Copper Alloy with Hard-gold plated and Hard-silver Plated thickness ≤ 3 mΩ to achieve the best current contact and transmission.
