P.N | HVME-006-MC HVME-006-FC |
Series | HM Flexible and Combined Connector Crimp Terminal Insert |
Descriptions | Flexible Combination Heavy Duty Power Connector Insert, 6 Poles , 500V, 16A, Male,Female, Crimp Terminal, Protected Module. (Order Crimp Contacts Separately) |
Gender | Male,Female |
Mechanical Working Life | More than 500 |
Size | Used with Hinged Frame |
Working Temperature Range | -40⁰C … +125⁰C |
Termination Method | Crimp Terminal |
Number of Contacts | 6 |
Power Contact Rated Current | 16A |
Power Contact Rated Voltage Acc. to UL/CSA | 600V |
Rated Impulse Voltage | 8KV |
Contact Resistance | <= 1mΩ |
Insulation Resistance | >=1010Ω |
Pollution Degree | Ⅲ |
Wire Gauge | 0.14mm2 – 4mm2 (AWG26-12) |
Trademark | ZJHK |

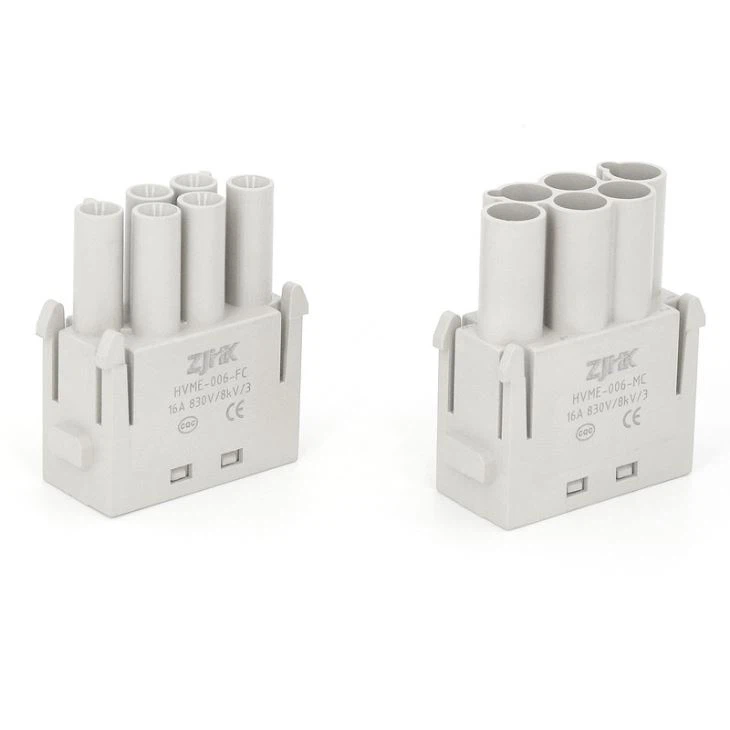

HVME Protected module, crimp male

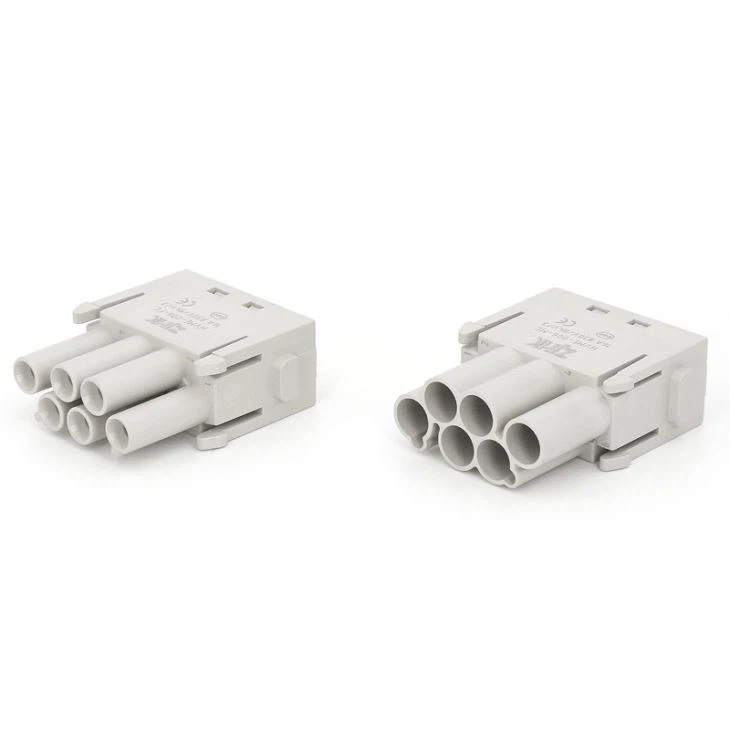

Details View

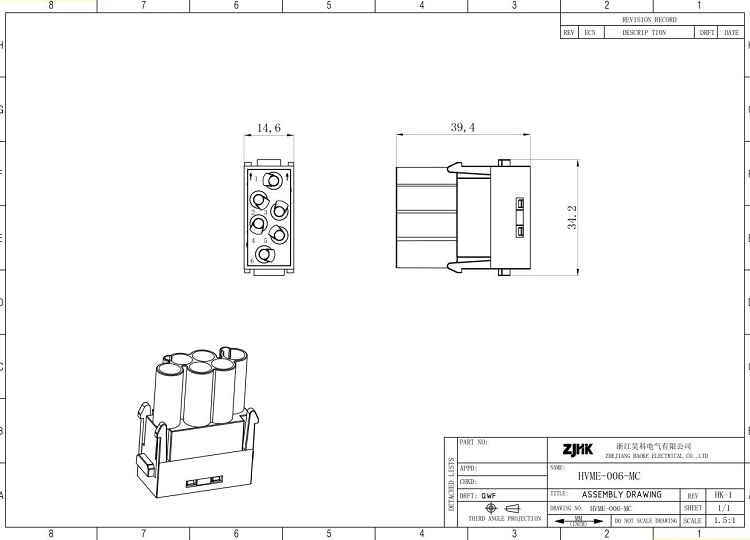

Assembly Drawing
