Product description
Part Number | HMK-003-MC&FC |
Series | HM Flexible and Combined Connector Crimp Terminal Insert |
Type of connector | HDC |
Connector | module |
Kind of connector | Male and Female |
Number of pins | 3 |
Mating Cycle (Mechanical Working Life) | >= 500 |
Working Temperature Minimum value | -40⁰C |
Working Temperature Maximum | +125⁰C |
Termination Method | Crimp Terminal |
Current A | 40 |
Voltage V | 400 - 690 |
Rated impulse withstand voltage KV | 6 |
Pollution degree | III |
IP degree of protection | IP20 without enclosure, IP65/IP66/IP68/IP69 with enclosure |
Characteristics according to EN 61984 | 40A 400/690V 6kV 3 |
Insulation resistance | ≥ 10 GΩ |
Contact resistance | ≤ 0,3 mΩ |
Characteristics according to EN 61984:
(40A 400/690V 6kV 3)
- footprint 1 module
- for maximum current load, see the insert load curve section
- for contact crimping instructions, please see the crimping tool section (40A contacts, CCSM and CCSF series)
The modular inserts must be installed in suitable frames which in turn are installed in traditional housings or COB panel support
Current Carrying Capacity
The current carrying is limited by maximum temperature of materials for inserts and contacts including terminals.
Measuring and testing techniques according to DINEN 60512-5
① 24 B hoods/housing with 6 modules, wire gague:6mm²
② 24 B hoods/housing with 6 modules, wire gague:4mm²

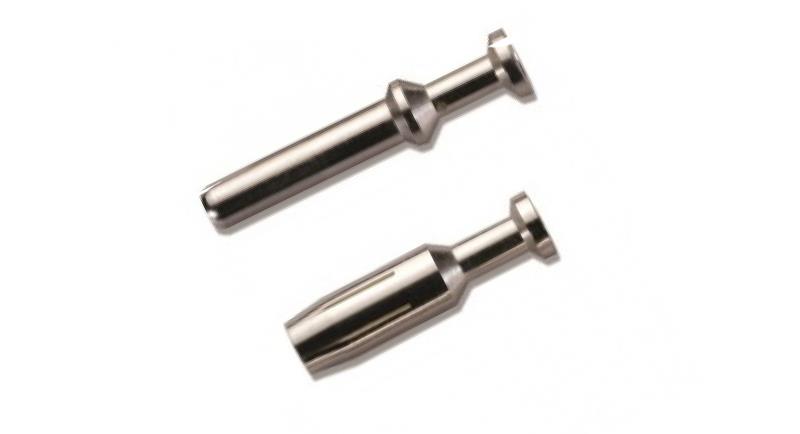

Contacts
CCSM&CCSF
Available Options
40A Crimp Contact Wire Gauge
Copper Alloy with Silver Plated Finish
1.5mm - AWG16- ø1.75 - Stripping length 9mm
2.5mm - AWG14- ø2.25 - Stripping length 9mm
4mm - AWG12- ø2.85 - Stripping length 9.6mm
6mm - AWG10- ø3.5 - Stripping length 9.6mm
10mm - AWG8- ø4.3 - Stripping length 15mm
Stripping length A = 15 mm for cables >=5 mm
Stripping length B = 18 mm for cables >=6.4 mm
Please Order Crimp Contacts Separately
