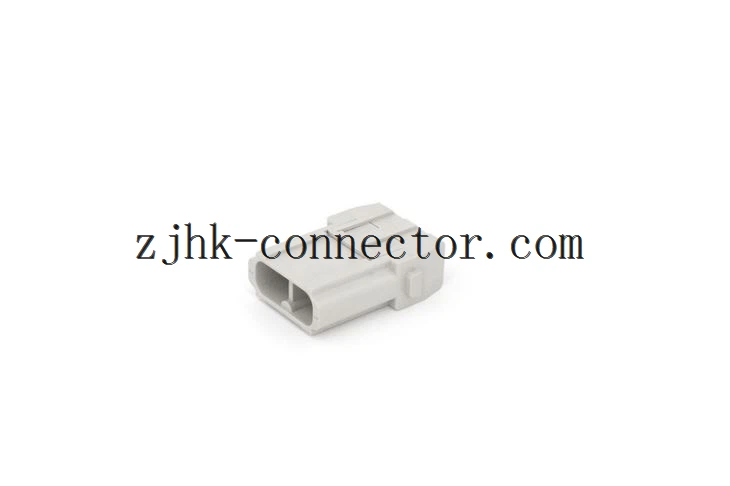

Crimp module insert
Order number：09140023002（Male）& 09140023102（Female）
SPECIFICATION
Manufacturer | ZJHK |
Type of connector | rectangular |
Connector | Module |
Kind of connector | Male and Female |
Connector series | HM 40A Flexible and Combined Connector Crimp Terminal Insert |
Descriptions | Flexible Combination Heavy Duty Power Connector Insert, 2 Poles , 1000V, 40A, Crimp Terminal. (Order Crimp Contacts Separately) |
Connector variant | w/o contacts |
Electrical mounting | crimped |
Power Contact Rated Current | 40A |
Power Contact Rated Voltage Acc. to EN61 984 | 1kV |
Mating Cycle (Mechanical Working Life) | >= 500 |
Size | Used with Hinged Frame |
Working Temperature Range | -40⁰C … +125⁰C |
Rated Impulse Voltage | 8KV |
Contact Resistance | <= 0.3mΩ |
Insulation Resistance | >=10^10Ω |
Pollution Degree | 3 |
Wire Gauge | AWG 16 - AWG8 (1.5mm² – 10mm² ) |
Tool | TL02-0G/TL02-3G Crimping Tool, TL06G Contact Removal Tool |
Material of Inserts | Polycarbonate |
Contacts | Hard-Silver Plated Copper Alloy |
Flammability Acc. to UL 94 | V0 |

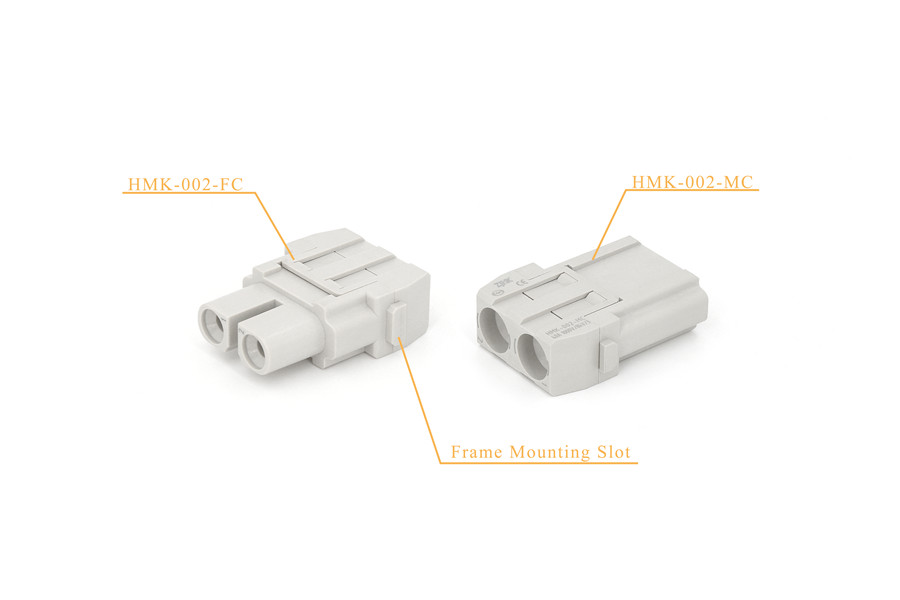

Picture view
The ZJHK-Modular® System can be put together as per each requirement from various basis modules. It can be used practically as proven standard contacts and housing
Highlights & Details
· Manufacturer type description: ZJHK® HM module
· Your order canbe ship with in 10 days after payment.
· The order usually only 7-10 days from door to door
Comments
Suitable crimp contacts must be ordered separately!
Complete product composition
Related Products
CCSM&CCSF
Available Options
40A Crimp Contact Wire Gauge
Copper Alloy with Silver Plated Finish
1.5mm - AWG16- ø1.75
2.5mm - AWG14- ø2.25
4mm - AWG12- ø2.85
6mm - AWG10- ø3.5
10mm - AWG8- ø4.3
