Products Description
HE-048-FC

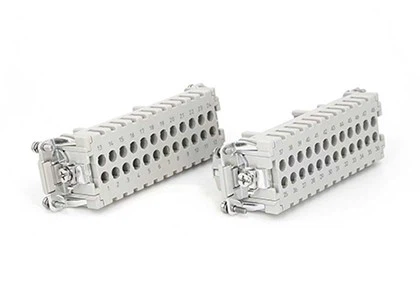

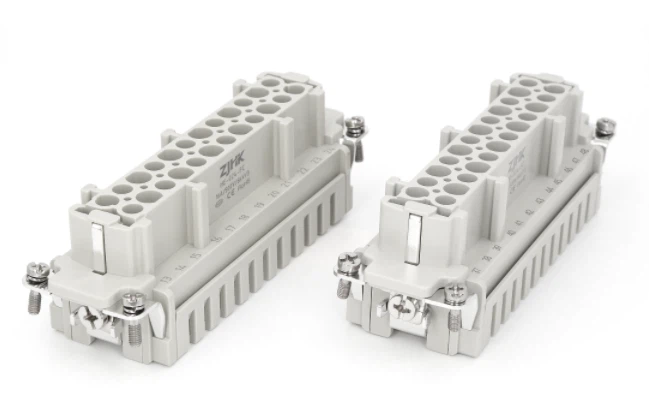

This is HE series inserts with 48 holes and with rated current of 16A and rated voltage of 500V.Industrial rectangular connectors are key components for power and signal transmission in industrial applications. Featuring a rectangular housing and a grid-like contact arrangement, they are suitable for a variety of applications, including automation and rail transit.
Product Parameter (specification)
Termination method
Crimping
Gender
Female
Model
HE-024-FC(1-24)
HE-024-FC(25-48)
Rated Current
16Ampere
Rated Voltage
500Voltage
Rated Impulse Voltage
6kV
Pollution Degree
Ⅲ
Rated Voltage Acc.to UL Csa
600V
Insulation Resistance
≥1010Ω
Material
polycarbonate
Limiting Temperature
-40℃...+125℃
Flammability Acc.to UL94
V0
Mechanical Working Life-mating Cycles
≥500
Contacts
Material
Copper Alloy
Surface
Hard-gold Plated
Hard-silver Plated
Pin Resistance
≤1mΩ
Crimping Connection
Wire Gauge
0.14-4.0mm²
AWG
26-12
Stripping Length
7.5mm
Products overview
why choose HDC
Compared to traditional connectors, they offer significant advantages: First, they offer high space efficiency and can be stacked, saving internal equipment space. Second, they feature a high contact density, supporting multi-channel transmission and adapting to complex connection requirements. Third, they are modular, allowing for flexible customization and reducing integration costs. Fourth, they feature mechanical coding to prevent mis-insertion and enhance operational safety.
Crimping Termination

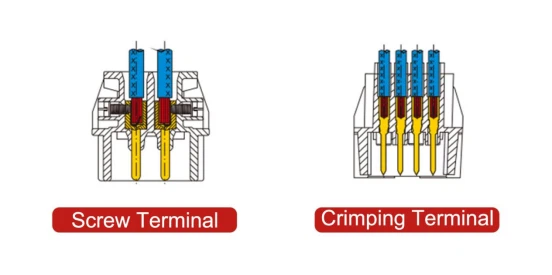

Heavy-duty connector cold-press connections use specialized tools to compress the terminals, creating a tight engagement with the conductor's metal core. Requiring no heating, this method is simple and efficient, enabling rapid batch connection.This mechanical compression method achieves stable contact, low contact resistance, and resistance to vibration and shock, making it suitable for heavy-duty industrial applications. It also prevents high-temperature damage to the conductor insulation, extending its service life and making it highly suitable for complex industrial environments.
Accessories
Crimping contacts
Material: Copper alloy with silver plated
Rated Current: 16A
Wire Gague: 0.14~4mm2
Gender: Male
Material: Copper alloy with silver plated
Rated Current: 16A
Wire Gague: 0.14~4mm2
Gender: Female
hoods and housings
Choose the plan that suits you best.
h48B-SE-2B
Position: Hood, side entry
Degree of protection:IP65
Tread: M32/M40/M50/PG29/PG36/PG42
H48B-TE-2B
Position: Hood, top entry
Degree of protection:IP65
Tread: M32/M40/M50/PG29/PG36/PG42
H48B-BK-1L
Position: Housing, bulkhead mounting
Degree of protection:IP65
Characterastic: one lever
H48B-SF-1L
Postion:Housing, surface mounting
Degree of protection:IP65
Characteristic: one lever
Application sceanarios

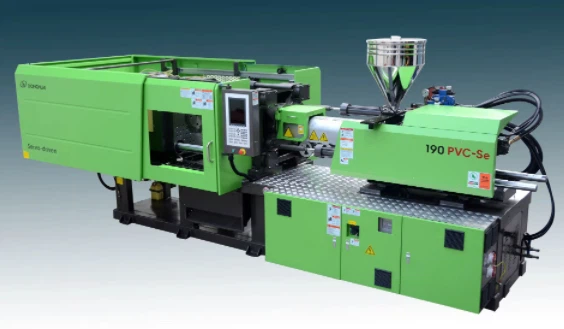

The drive motor is the power source for the various mechanical actions of the injection molding machine. When the heavy-duty connector is used to connect the drive motor, the connection structure adopts a double locking mechanism of a spiral bayonet and a retaining ring, forming a double guarantee of physical connection . During the operation of the injection molding machine, the vibration and impact generated by the drive motor will not affect the connection stability of the connector, effectively avoiding the risk of power outages caused by loose connections, ensuring that the drive motor can continuously and stably provide power for the injection molding machine's mold closing, injection and other actions, ensuring the continuity and accuracy of the injection molding process.

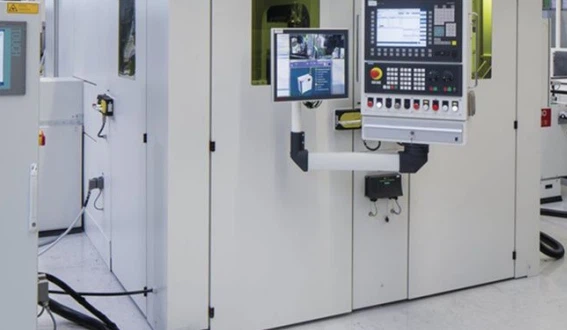

High-power components in laser machine tools, such as laser generators and servo motors, require stable, high-voltage, high-current power supplies. Heavy-duty connectors offer strong current-carrying capabilities, with rated currents ranging from a few amps to several hundred amps, meeting the power supply needs of components with varying power levels. Furthermore, the housing of heavy-duty connectors, constructed from high-strength engineering plastics or metal, offers excellent heat and aging resistance, effectively protecting internal conductive components and preventing safety incidents caused by overheating, short circuits, and other issues.

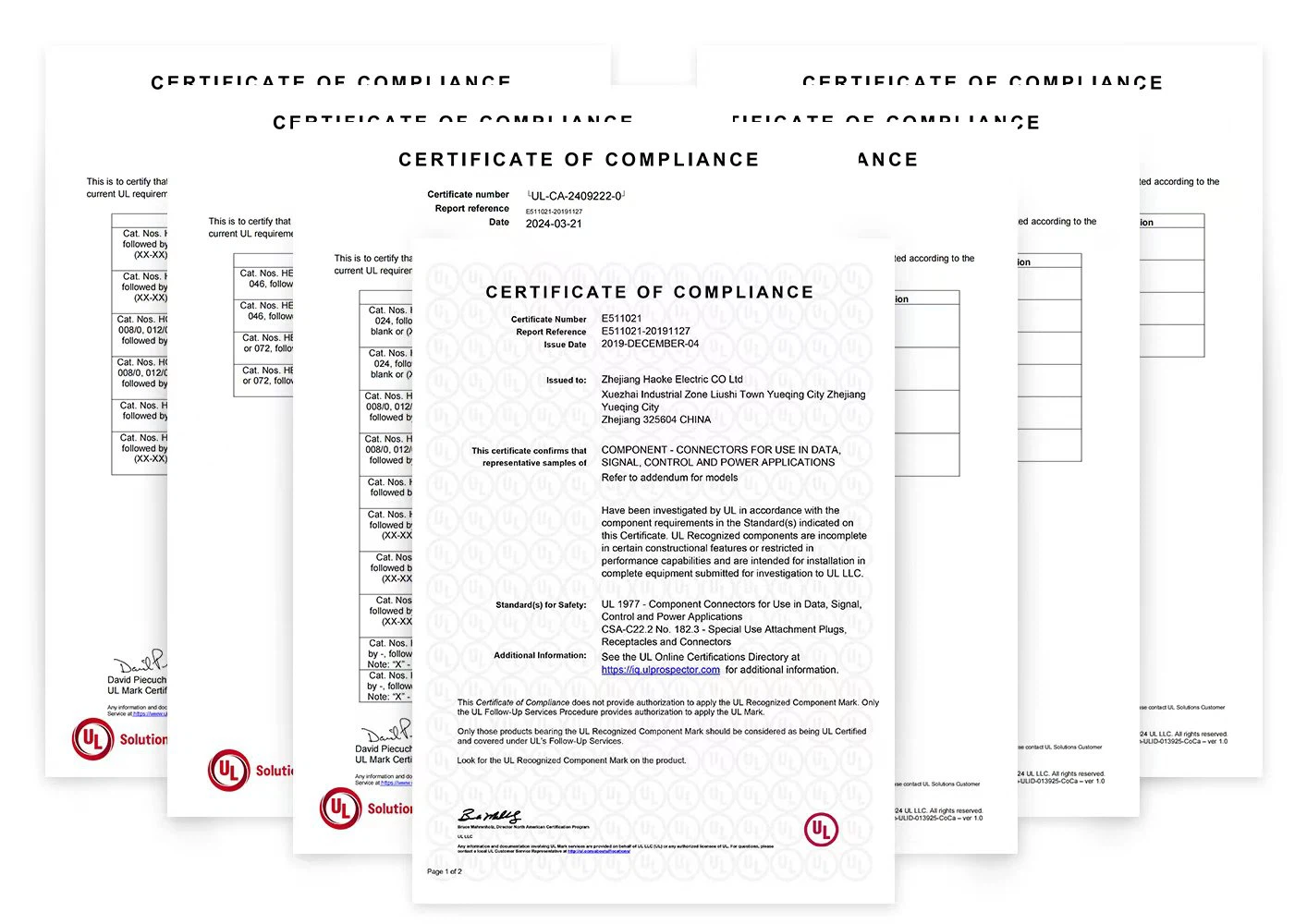

Our Certificate
