Description
Product Introduction
The ferrules in this series have gained extensive application across a wide range of fields. They are commonly found in industrial control systems, where reliable connections are crucial for the smooth operation of various equipment. Additionally, they play an important role in automation machinery, providing secure interfaces for the transmission of signals and power. They are also utilized in the field of electrical engineering, contributing to the efficient and safe distribution of electricity.
When it comes to cold pressing operations involving these ferrules, it is essential to place orders based on the specific wire gauge. This is because different wire gauges have varying diameters and current-carrying capacities, and using the appropriate cold pressing components that match the wire gauge ensures a firm and reliable connection. Such a practice not only guarantees the safety of the electrical system but also helps maintain the stable transmission of current, preventing issues such as poor contact or overheating that could arise from mismatched components.
Product Parameter (specification)
Termination method
Crimp Terminal
Gender
Female
Model
HE-024-FC
Rated Current
16A
Rated Voltage
500V
Rated Impulse Voltage
6kV
Pollution Degree
Ⅲ
Rated Voltage Acc.to UL Csa
600V
Insulation Resistance
≥1010Ω
Material
polycarbazole
Flammability Acc.to UL94
V0
Mechanical Working Life-mating Cycles
≥500
PIN
Material
Copper Alloy
Surface
Hard-gold Plated
Hard-silver Plated
Contact Resistance
≤1mΩ
Crimping Terminal
Wire Gauge
0.14-4.0mm²
AWG
26-12
Stripping Length
7.5mm
Working Temperature
ZJHK heavy duty connector can work steadily between -40℃ and +125℃.
Product Overview

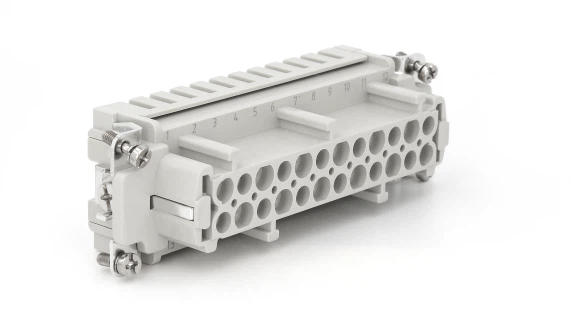

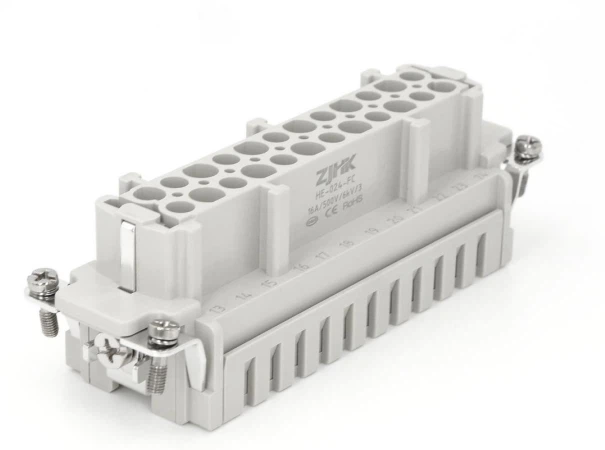

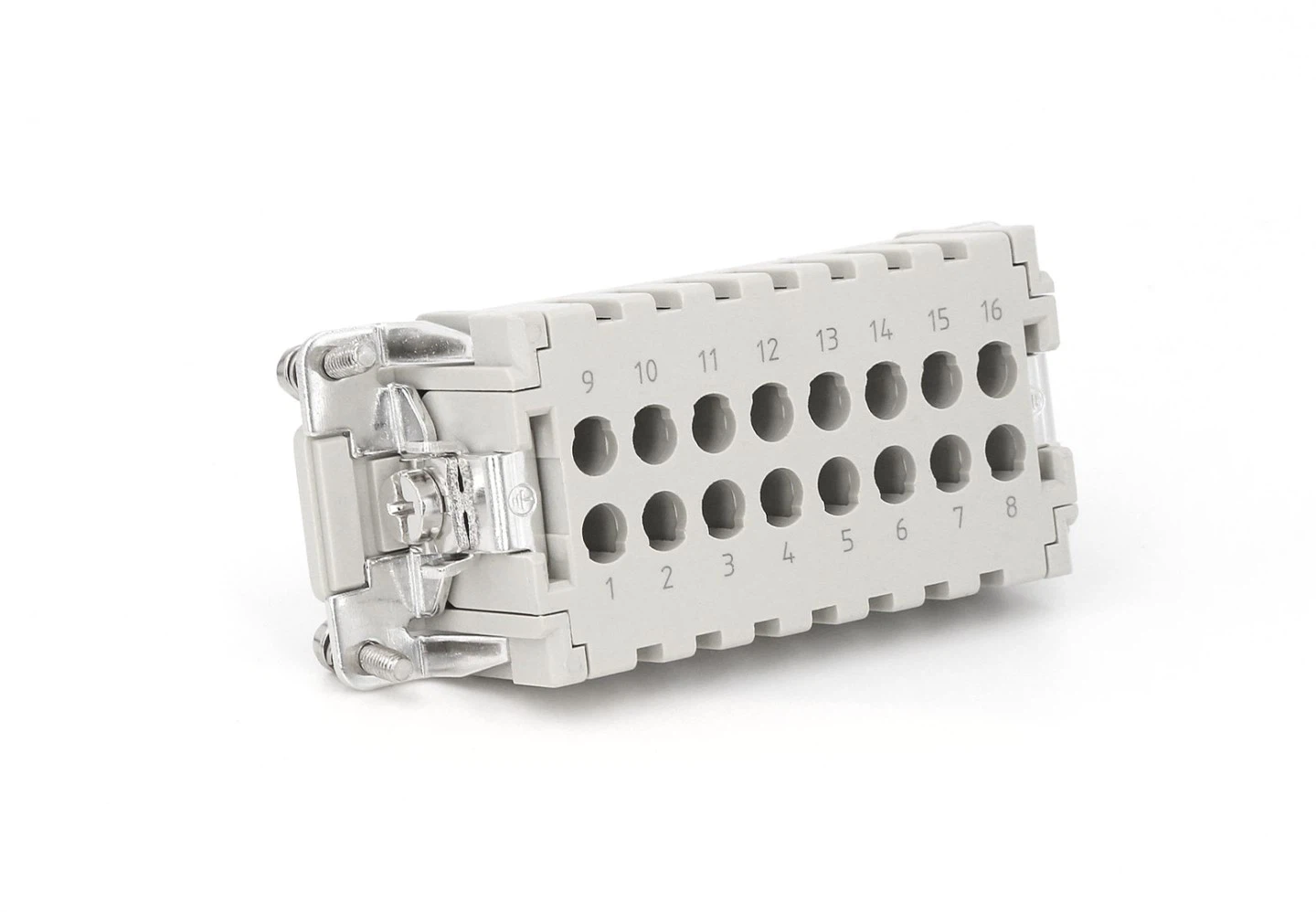

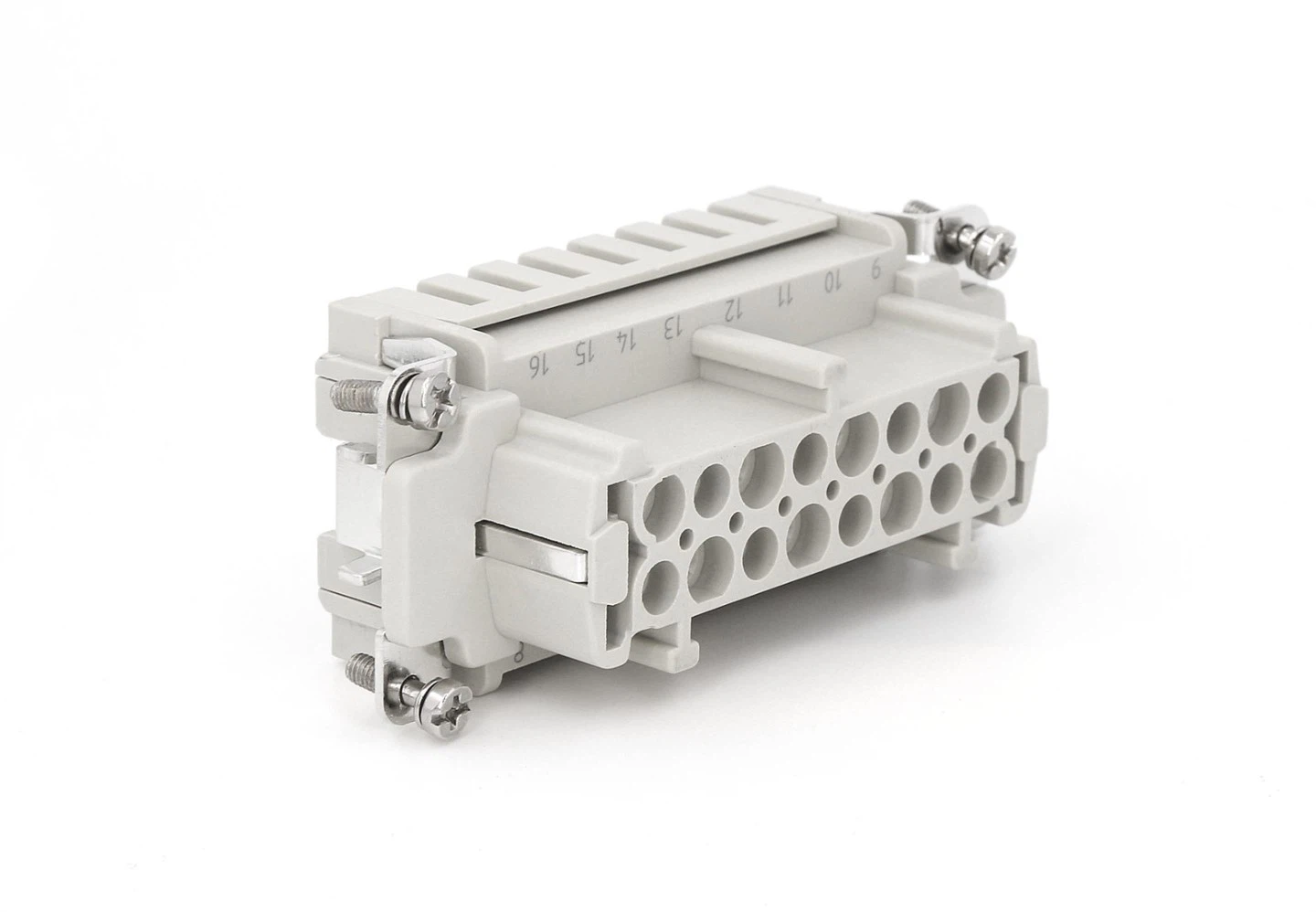

It is obvious that there are 24 holes in this insert. This is a female insert with light gray polycarbonate appearance. It can steadily work between -40 Celsius and 125 Celsius. This connector are specially designed for applications in extremely rough environment.

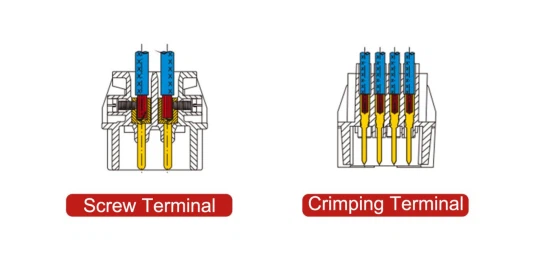

What's the difference betwwen screw and crimping terminal?
HE series inserts can be connected with four different method. They are screw terminal, crimp terminal, cage-clamp terminal and quick lock terminal. Screw terminal is easy to handle and it doesn't need special tools. Crimp terminal constantly contact resistance as a result of precisely repeated crimp connection quality.
Crimping Contacts
CESM
Material：Cooper Alloy
Surface：Silver plated
Gender：Male
Amp：16A
CESF
Material：Cooper Alloy
Surface：Silver plated
Gender：Female
Amp：16A
CEGF
Material：Cooper Alloy
Surface：Gold plated
Gender：Female
Amp：16A
CEGM
Material：Cooper Alloy
Surface：Gold plated
Gender：Male
Amp：16A
Application Scenarios
Rail transit field
Rail transit equipment has extremely high requirements for connection reliability and safety. Heavy-duty connectors are used for power transmission, signal control, and connection of electrical equipment inside the train. On high-speed trains, heavy-duty connectors connect the traction motor to the power supply system, and are responsible for signal transmission between the train control system and each carriage equipment, ensuring the safety and stability of train operation.
Power and Energy
In the power system, heavy-duty connectors are used in substations, distribution cabinets, and power generation equipment. For example, in wind farms, heavy-duty connectors are used to connect the electrical equipment inside the tower of wind turbines with external transmission lines. In the face of harsh natural environments such as strong winds and humidity, they can still ensure efficient transmission of electricity and reliable operation of equipment. In solar photovoltaic power stations, heavy-duty connectors connect photovoltaic panels with inverters, ensuring that direct current is smoothly converted into alternating current and incorporated into the power grid.
Medical field
In the medical field, surgical robots, rehabilitation robots, etc. have extremely high requirements for the reliability and safety of connectors. The application of heavy-duty connectors in medical robots needs to meet strict hygiene standards and electrical safety specifications. For example, when a surgical robot is performing precision surgery, the heavy-duty connector must ensure zero-delay transmission of the control signal so that the doctor's operation can be accurately transmitted to the robot's execution end. At the same time, its high protection performance can prevent liquid infiltration during surgery and ensure the safety of equipment and patients. In addition, medical robots need to be strictly disinfected after use, and the material and structural design of heavy-duty connectors can adapt to various disinfection methods, such as high-temperature and high-pressure disinfection, ultraviolet disinfection, etc. Figure 7 shows the application scenario of heavy-duty connectors in medical robots.
Certifications
UL
CE
UKCA
EAC
REACH
RoHS
How to contact us?
Our address
No.166, Huapu Road, Wengyang Industrial Park.Yueqing City, Zhejiang Province, China 325600
Phone Number&wechat
+86 18067786591
Website
Staffs
years experience
Exporting Countries
Good Feedback Rate
do you have any question?
What are the advantages of ferrule connections compared to heavy-duty connectors with screw connections and push-in connections?
The connection reliability is higher. The conductor and the terminal are firmly combined by crimping with special tools and are not easy to loosen. The screw connection is easy to loosen due to vibration, and the direct plug-in connection may have poor contact; The electrical performance is better, the contact area is large, the resistance is small, and the conductivity is more stable. The resistance of the screw connection may be unstable due to the degree of tightening, and the direct plug-in connection is affected by the matching accuracy;
It has better vibration resistance and can withstand vibration and impact. The screw connection is easy to loosen, and the direct plug-in connection may loosen and pull out;
It has a wider range of applications and is suitable for cables of various materials and cross-sections. The screw connection is difficult to connect special wires, and the direct plug-in connection has stricter requirements on wire specifications;
It is more environmentally friendly and energy-saving, and does not require electric welding and additional welding materials, reducing consumables and energy consumption. The screw connection may cause loss due to disassembly, and the welding type has material consumption and exhaust gas problems.
