Description
introduction

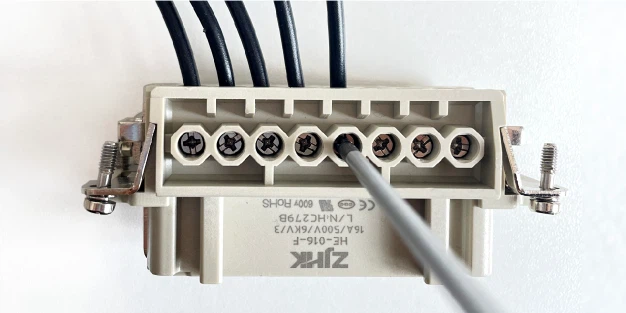

This is a 16-hole HE series female ferrule. The housing is made of polycarbonate and is off-white in color. It offers excellent insulation and waterproofing, making it an ideal choice for harsh operating environments. It is widely used in hot runners, construction machinery, and aerospace applications.
Product Parameter
Terminal method
Screwing
Gender
Female
Model
HE-016-F
Rated Current
16A
Rated Voltage
500 Voltage
Rated Impulse Voltage
6kV
Pollution Degree
Ⅲ
Rated Voltage Acc.to UL Csa
600V
Insulation Degree
≥1010Ω
Material
polycarb
Working Temperature
-40℃...+125℃
Flammability Acc.to UL94
V0
Life Cycles
≥500 time
Contacts
Material
Copper Alloy
Surface
Hard-gold Plated
Hard-silver Plated
Contact Resistance
≤1mΩ
Crimping Terminal
Wire Gauge
0.14-4.0mm²
AWG
26-12
Stripping Length
7.5mm
Product Material
We use polycarbonate as the material of inserts to ensure good insulation performance. Contacts are made of cooper alloy which can ensure good conductivity.
Working Temperature
It can be stably worked in the temperature between -40 degree celsius and 125 degree celsius.
Products overview
The conductors in the cable (usually bare or with crimp terminals) are secured to the connector's crimp terminals, which are then screwed onto a screw guide or bolt to create a secure connection. Compared to more complex connection methods, screw connections are relatively simple and easy to understand, making them easier to install and maintain. Heavy-duty connectors and their screw connections are designed to withstand harsh environments such as dust, moisture, and extreme temperatures, providing a reliable solution.
01
Stable connection
02
Low Cost
03
Easy Operation
04
SimpleTools

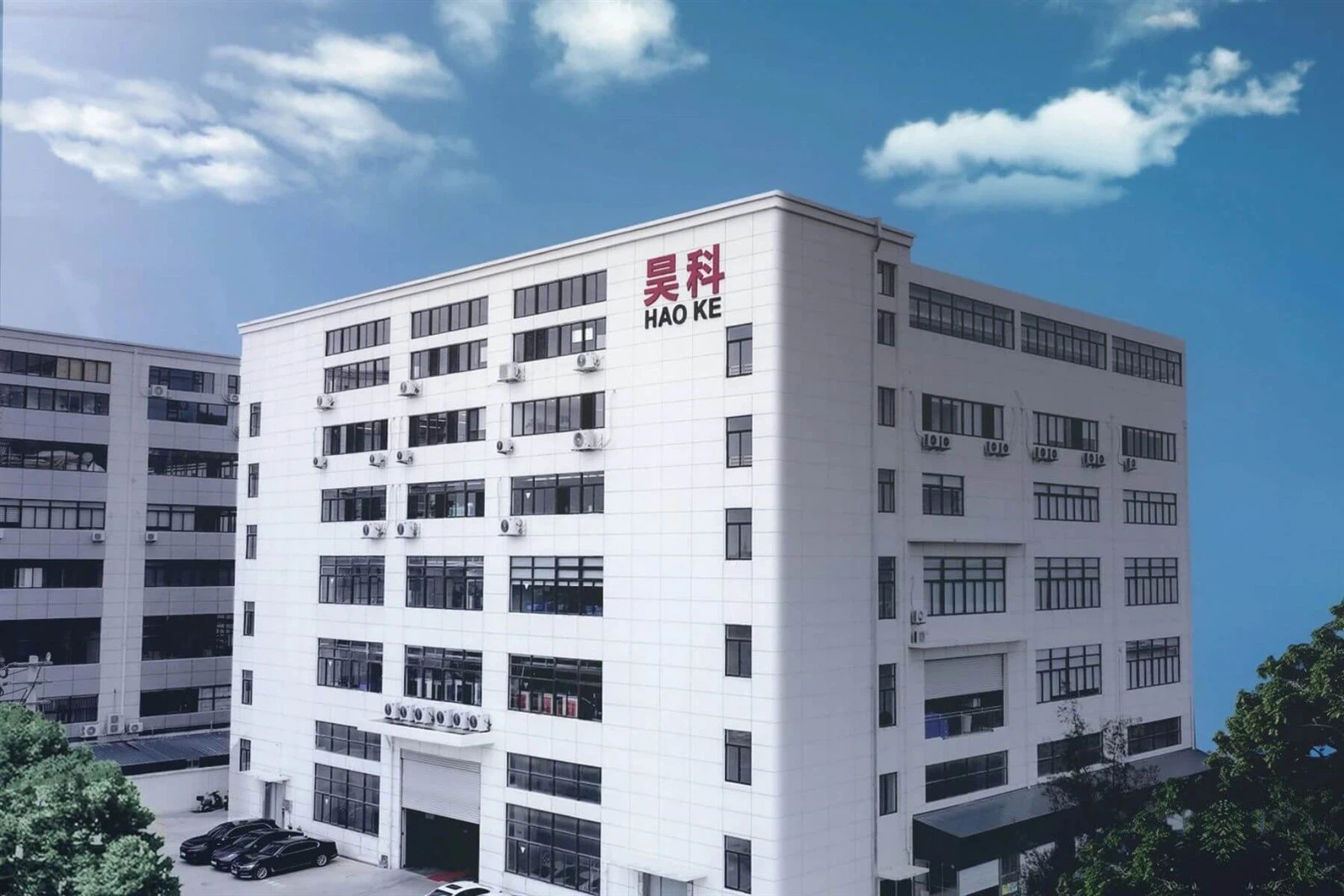

Our factory & quipment
Advanced, Professional
application Scenarios

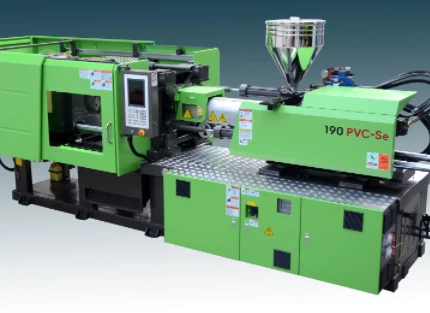

When the injection molding machine is working, the heating system needs to continuously and stably provide a large amount of heat to melt the plastic raw materials so that they can be injected into the mold for molding. This requires the power transmission components connected to it to be able to withstand large currents. At the same time, the drive motor is responsible for providing power for the injection molding machine's mold closing, injection and other actions, and its operation is also accompanied by large current fluctuations.

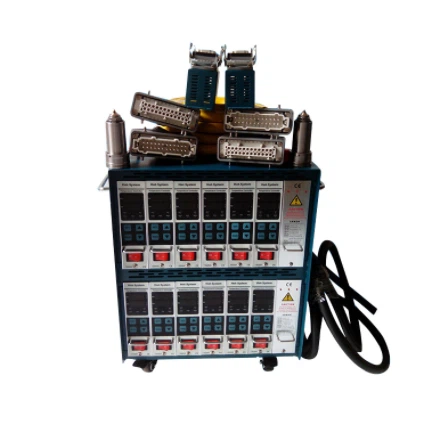

temperature controllers
Hot runner temperature controllers rely on temperature feedback from thermocouples or RTDs distributed across the nozzle and runner plate. These weak signals are highly susceptible to electromagnetic interference. The heavy-duty connector's metal shielding creates a 360-degree electromagnetic barrier, and combined with the internal twisted-pair design, it minimizes signal transmission errors to less than 0.5°C. In the injection molding of mobile phone cases, Bestex's heavy-duty connectors utilize gold-plated contacts to reduce contact resistance, increasing the temperature controller's response to hot runner nozzle temperature by 20%, effectively preventing product flash caused by temperature lag.
Certifications
UL
CE
UKCA
EAC
REACH
RoHS
We are always at your service when you need
Zhejiang Haoke Electric Co., Ltd. began building its mold-making team in 2012 and was officially established in 2014. The following year, the company obtained CQC/CE/RoHS certification, and in 2016, it passed ISO9001 management system certification. Through continuous effort, the company obtained UL certification in 2019. The company's comprehensive product range, including HA, HE, HEE, HD, and HSB series, is suitable for a wide range of applications, providing professional solutions for the connectivity needs of demanding industrial environments. Haoke Electric looks forward to collaborating with you on a path of mutual success.
