Products Description
Introduction

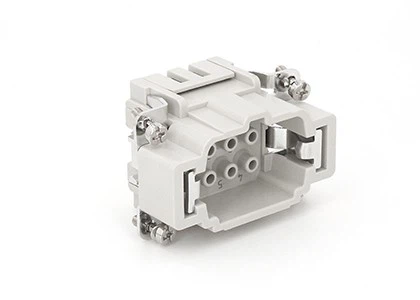

HE-006-MC
This connector has a rated current of 16A. It is cold-pressed and does not require heating, ensuring stable electrical performance. Moreover, it is firmly and reliably connected, with strong resistance to vibration and shock. It is an excellent choice for harsh industrial environments.
Parameter (specification)
Termination method
Crimp Terminal
Gender
Male
Model
HE-006-MC
Rated Current
16A
Rated Voltage
500V
Rated Impulse Voltage
6kV
Pollution Degree
Ⅲ
Rated Voltage Acc.to UL Csa
600V
Insulation Resistance
≥1010Ω
Material
Polycarbonate
Limiting Temperature
-40℃...+125℃
Flammability Acc.to UL94
V0
Mechanical Working Life-mating Cycles
≥500
Contacts
Material
Copper Alloy
Surface
Hard-gold Plated
Hard-silver Plated
Contact Resistance
≤1mΩ
Wire Gauge
0.14-4.0mm²
AWG
26-14
Stripping Length
7.5mm
Products Overview
TERMINAL METHOD
Crimping terminal connectors: The cold-pressed clamp applies pressure to tightly bond the contact piece with the wire, ensuring a firm and reliable connection. It has strong anti-vibration and anti-shock capabilities, significantly enhancing the service life of heavy-duty connectors and the reliability of the system.
Products accessories
Crimping Contacts
Hoods & Housings

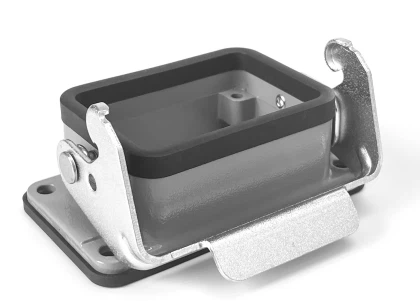

H6B-BK-1L
Degree of protection: IP65
Housing, bulkhead mounting
H6B-SF-1L
Degree of protection: IP65
Housing, surface mounting
h6B-SE-1L
Degree of protection: IP65
Hood, side entry
h6B-TE-1L
Degree of protection: IP65
Hood, top entry

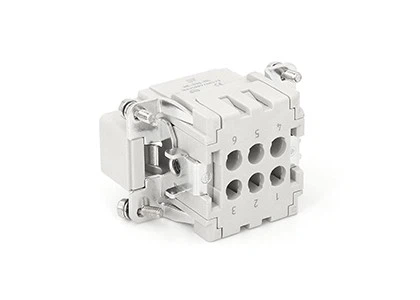

The light gray plastic casing functions as insulation protection, ensures adaptability, and provides installation fixation, whereas the metal screws on the side are utilized for assembly and fastening purposes.
Its connection method is to lock the bottom inserted wire with the screw on the side of the ferrule, which is the most traditional connection method. Connect the cable at the bottom.
application Scenarios
In the wave of global energy structure transformation towards green and low-carbon, the new energy industry is booming at an unprecedented speed. The technology in wind power, photovoltaics, energy storage, new energy vehicles and other sub-sectors continues to break through, and the installed capacity and market scale continue to expand. New energy equipment and systems are often in complex and harsh working environments, so they place extremely high demands on the reliability, stability and safety of electrical connections. With its excellent performance, heavy-duty connectors play a vital role in the field of new energy , becoming a key component to ensure the efficient operation of various new energy equipment, and providing solid connection support for the efficient use of green energy and sustainable development.
aviation field
Avionics equipment such as navigation systems, communications systems, and flight control systems are core components of aircraft. Heavy-duty connectors are used to connect these devices and ensure stable signal transmission. Satellite navigation systems require rapid and accurate transmission of large amounts of data. The high-speed transmission capabilities and high reliability of heavy-duty connectors ensure that navigation information reaches the aircraft's control system promptly and accurately, providing pilots with reliable navigation guidance. In communications systems, heavy-duty connectors ensure stable communication signals between the aircraft and ground control centers and other aircraft, ensuring smooth voice and data communications, which is crucial for flight safety and air traffic management.
