H2MEE-020-fC

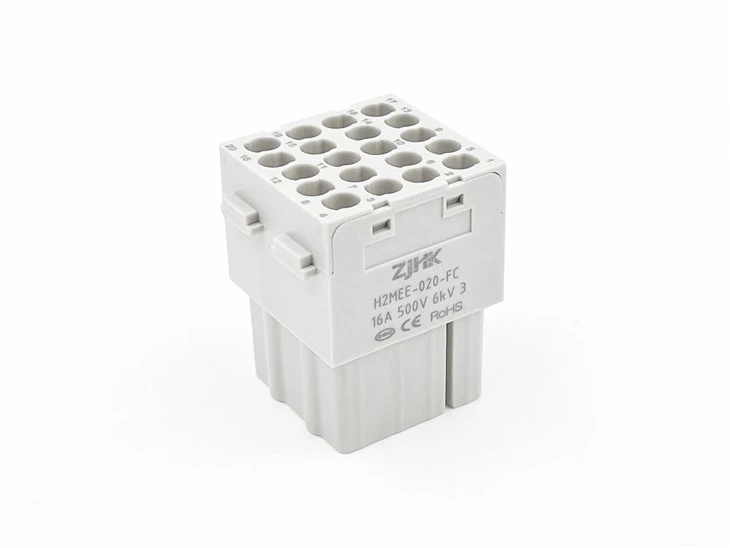

The illustration shows a 20-pin crimp terminal insert, which integrates a female crimp contacts inside and can be used in conjunction with the corresponding hoods to achieve synchronous connection of 20 signals. This connector can also be paired with 16A crimping pins (silver or gold plating available), which are fixed with a dedicated crimping tool to form a high-strength, vibration-resistant electrical interface, suitable for wires with cross-sectional areas ranging from 0.14 to 4 mm².
TECHNICAL CHARACTERISTICS
Specifications
DIN EN 60 664
DIN EN 61 984
Inserts
Number of contacts
20
Electrical Data Acc.to EN 61 984
Rated Current
16A
Rated Voltage
500V
Rated Impulse Voltage
6kV
Pollution Degree
3
Rated Voltage Acc. to UL/CSA
600V
Insulation Resistance
≥1010Ω
Material
Polycarbonate
Limiting Temperature
-40℃...+125℃
Flammability Acc.to UL94
V0
Mechanical Working Life-mating Cycles
≥500
Contacts
Material
Copper Alloy
Surface
Hard-silver/hard-gold Plated
Contact Resistance
≤1mΩ
Crimp Terminal
mm2
0.14-4mm2
AWG
26-12
CONSIDERATE SERVICE
Our products include a one-year warranty for comprehensive coverage against common operational faults. Furthermore, our professional after-sales team is readily available to address any concerns post-purchase, ensuring your consumer rights are fully protected.
DIFFERENT SIDES
at the bottom
The bottom side of the product provides the terminal interface for machine and wire connections. It accommodates a maximum of 20 wires and supports transmission capacities up to 16A and 500V.
insert interconnection
As illustrated, the connection is achieved in two steps: first, the male and female crimp contacts are mated, and then the male insert is assembled onto the male contacts to complete the 20-pin wire connection.
