Description
Technical Parameters
PRODUCTS DESCRIPTION

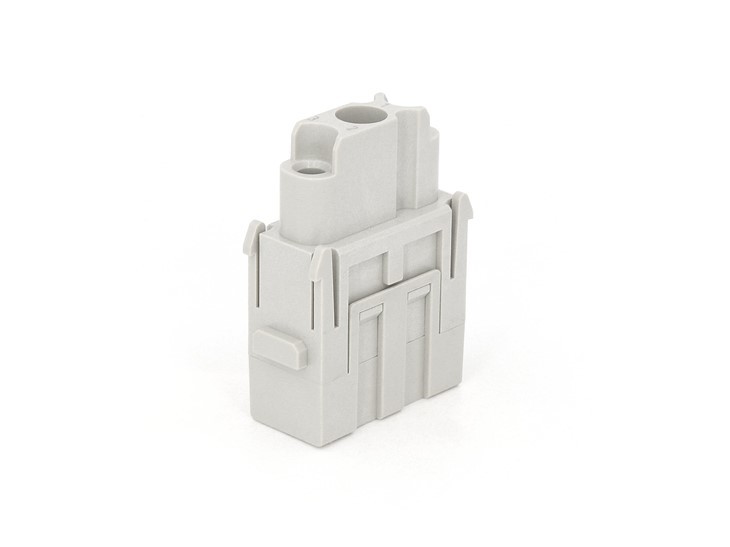

HMK-003-fC
Engineered for industrial connectivity, the HMK-003-FC series 3-pin modules facilitate secure machine-end wire connections using manually hydraulically crimped contacts. Designed for 1.5-10 mm² wires, they ensure signal integrity and stable power delivery. The core, made from imported polycarbonate and a robust copper alloy, offers high dielectric strength and corrosion resistance, resulting in superior vibration resistance and long-term durability.
TECHNICAL CHARACTERISTICS
Specifications
DIN EN 60 664
DIN EN 61 984
Inserts
Number of contacts
3
Electrical Data Acc.to EN 61 984
Rated Current
40A
Rated Voltage
500V
Rated Impulse Voltage
6kV
Pollution Degree
3
Rated Voltage Acc. to UL/CSA
600V
Rated Current Acc.to UL/CSA
32A
Insulation Resistance
≥1010Ω
Material
Polycarbonate
Limiting Temperature
-40℃...+125℃
Flammability Acc.to UL94
V0
Mechanical Working Life-mating Cycles
≥500
Contacts
Material
Copper Alloy
Surface
Hard-silver Plated
Contact Resistance
≤0.3mΩ
Crimp Terminal
mm2
1.5-10mm2
AWG
16-8
PROFESSIONAL TEST
HAOKE has advanced devices for heavy-duty connectors' production and test. These devices covered the whole life cycle from material performance to electrical safety, mechanical strength, and environmental adaptability, building a scientific defense line for product quality.
DIFFERENT SIDES
Integrated Die-Cast Core for Unshakeable Protection
This side view showcases our advanced integrated die-cast core, available in both marked and unmarked configurations. Precision-engineered to deliver exceptional stable protection, it ensures your machinery operates reliably, enhances durability, and maintains peak performance across diverse and demanding applications.
machine side
This crimp connection 3-pin insert is connected to the machine and electrical equipment through the wiring side and tightened with a manual hydraulic clamp. It can achieve the current transmission of 40A and a voltage of 500V.
COMPATIBLE COMPONENTS
CCSM & CCSF
The 40A silver-plated male and female pins are produced by our company's internal automated mechanical die-casting, with a 3μm silver plating layer on the outside, providing stable signal transmission function.
view more
Matching Products
On this 3-pin side, the male and female inserts interconnect via mating inserts, ensuring stable power and signal integrity by reliably transmitting both current and voltage. Designed for high-power applications, the manual hydraulic clamp connected insert , secured with the separared crimp pins, and rated up to 40A and 500V.
view more
24B frame
This in-house developed 16B frame houses six single-module chips, with two 2-pin modules integrated within. Its precision manufacturing involves over ten steps from die-casting to final shaping. This configuration is widely used in wind turbine pitch systems to reliably transmit various control signals.
view more
OUR FACTORY & QUIPMENT
DC Temperature Rise Test
This test monitors conductor temperature under load to determine safe current capacity. As current increases, resistive heating causes temperature rise, reducing ampacity. The evaluation considers conductor size, ambient conditions, and thermal properties to establish safe operating limits and prevent overheating in electrical systems.
warehouse
This image illustrates our complete, sophisticated warehousing system, the operational backbone of our company. Most products are supported by strategic inventory plans, ensuring stable supply chains and reliable services. We are committed to delivering consistent, uninterrupted support tailored to your business needs.
WIDELY APPLICATIONS
01
Marine Applications
In marine applications, heavy-duty connectors provide critical, high-reliability interconnections for power, signal, and data transmission. They are vital within propulsion systems, power generation, and deck machinery. Engineered to withstand harsh conditions like high current, extreme vibration, and corrosion, their robust sealing (e.g., IP68/IP69K) ensures operational integrity, safety, and efficiency for vessels.
02
wind energy
Heavy-duty connectors are vital in wind energy for their robustness and reliability. They withstand harsh conditions like salt spray, humidity, and vibration in both onshore and offshore turbines. With high IP ratings and corrosion-resistant materials, they ensure stable power and signal transmission. Their modular design allows flexible integration in pitch systems and control cabinets, simplifying installation and maintenance. This reduces downtime and enhances overall operational efficiency in wind power applications.
03
Transportation Railway
In rail transit, heavy-duty connectors deliver an "all-in-one connection solution" for critical systems like traction power and signaling. Designed to withstand extreme temperatures (-40℃ to +125℃), they meet IP68 and EN 61373 standards for harsh environments. Integrated smart monitoring and color-coding enable predictive maintenance and minimize downtime.
CERTIFICATIONS
UL
EAC
CE
UKCA
RoHS
ABOUT HAOKE ELECTRIC
The Expert in Customized Connectivity Solutions
Zhejiang Haoke Electric Co., Ltd. specializes in the design and manufacture of premium heavy-duty industrial connectors. By combining synergistic R&D with state-of-the-art automated production, we deliver exceptional flexibility through our HA, HE, HD, and HSB series product lines, offering thousands of customizable configurations. All our products are fully certified to UL, CQC, CE, UKCA, and EAC international standards, guaranteeing global compliance, reliability, and resilience from the ground up for the most demanding industrial environments.
Empowering Global Industrial Innovation & Efficiency
We provide durable connectivity products and technical support for pivotal industries, including rail transit, industrial automation, and heavy equipment. As a trusted partner, our solutions are specified by numerous Fortune Global 500 companies across Europe and America, integral to their global projects and innovative products. Zhejiang Haoke Electric is dedicated to pushing the boundaries of industrial interconnection through precision engineering, helping global clients enhance operational efficiency and achieve sustained innovation.
FREQUENTLY ASKED QUESTIONS
Is your company fully automated?
+
-
Yes,Most of our production is fully automated.
What transportation methods do you have?
+
-
Small orders will be dispatched by DHL, UPS, TNT, Fedex, Aramex.
If I want some regular products, do you have any stock in the warehouse?
+
-
Most models are in stock, and the order quantity is unlimited. Also welcome small orders.
How to order?
+
-
Please email us your purchase order and we will send you a quotation and a proforma invoice.
