H2MK-001-F
TECHNICAL CHARACTERISTICS
| Specifications |
DIN EN 60 664
|
Specifications |
DIN EN 61 984
|
| Inserts | Number of contacts |
1
|
|
| Electrical data Acc.to EN 61 984 | Rated Current |
200A
|
|
| Rated Voltage |
1000V
|
Rated Impulse Voltage | 8kV |
| Pollution Degree | 3 | Rated Voltage Acc.to UI CSA | 600V |
| Insulation Resistance | ≥1010Ω | Material |
Polycarbonate |
| Limiting Temperature | -40℃...+125℃ | Flammability Acc.to UL94 | V0 |
| Mechanical Working Life-mating Cycles | ≥500 | Contacts | |
| Material | Copper Alloy | Surface |
Hard-silver Plated
|
| Contact Resistance | 0.2mΩ | To IEC 60 228 Class 5 | |
|
AXIAL SCREW TERMINAL mm2 |
25-70mm2 |
AWG |
2-0 |
|
HEXAGONAL STRIPPING LENGTH |
SW 5
16mm
|
TIGHTENING TORQUE mm2 NM |
25 35 50 70 8 8 9 10 |
DIVERSE PERSPECTIVES
The wire is connected from the top and can accommodate a rated current of 200A and a rated voltage of 1000V.
The bottom of the male plug-in is connected to the female plug-in through copper pins to achieve the function of current and signal transmission.
The accompanying male and female inserts are inserted into the standardized frame for use.
MATCHING PRODUCTS
HF6B-NLA
The HF6B series frame can accommodate two modular plug-in positions, which are paired with the HF6B-NUA to distinguish male and female inserts, meaning that a single 2-pin module can be installed.

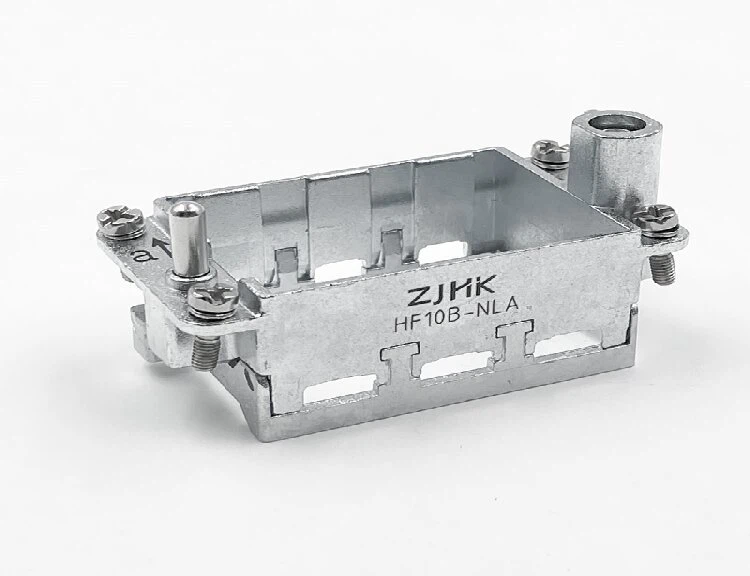

HF10B-NLA
The HF10B series frame can accommodate three modular plug-in positions, that is, a single 2-pin module plus one single-pin module can be installed.
HF16B-NLA
The HF16B series frame can accommodate four modular ferment-based positions, that is two 2-pin modules can be installed.
HF24B-NLA
The HF24B series frame is the one in this series that can accommodate the largest number of cores, capable of simultaneously accommodating six single-pin modules and suitable for all 24B hoods&housings.
