HMK70-002-M

HMK70-002 is a type of HM series plug and a special current module that can achieve a current transmission of 70 amperes. They can respectively accommodate wire cross-sectional areas of 6-16mm² and 14-22mm ². It is connected by axial bolts and reinforced with an hexagonal driver. This 2-pin male plug can be matched with the corresponding female plug. It can achieve the transmission of a large voltage of 1000V.

TECHNICAL CHARACTERISTICS

Specifications	DIN EN 60 664	Specifications	DIN EN 61 984
Inserts		Number of contacts	1
Electrical data Acc.to EN 61 984		Rated Current	70A
Rated Voltage	1000V	Rated Impulse Voltage	8kV
Pollution Degree	3	Rated Voltage Acc.to UI CSA	600V
Insulation Resistance	≥10¹⁰Ω	Material	Polycarbonate
Limiting Temperature	-40℃...+125℃	Flammability Acc.to UL94	V0
Mechanical Working Life-mating Cycles	≥500	Contacts
Material	Copper Alloy	Surface	Hard-silver Plated
Contact Resistance	0.5mΩ	To IEC 60 228 Class 5
AXIAL SCREW TERMINAL mm²	6-22mm²	AWG	8-4
HEXAGONAL	SW 2.5	TIGHTENING TORQUE mm² NM	6 10 16 22 2 3 4 5

DIVERSIFIED PERSPECTIVE

machine side

This axial connection 2-pin insert is connected to the machine and electrical equipment through the wiring side and tightened with a hexagonal driver. It can achieve a large current of 70A and a transmission of 1000V.

insert side

This 2-pin side is connected to each other through the male and female insert, and the current and voltage are transmitted through the internal male and female mating ferrule, ensuring stable signal and current transmission.

MATCHING PRODUCTS

HF6B-NLA

The HF6B series frame can accommodate two modular plug-in positions, which are paired with the HF6B-NUA to distinguish male and female inserts, meaning that a single 2-pin module can be installed.

HF10B-NLA

The HF10B series frame can accommodate three modular plug-in positions, that is, a single 2-pin module plus one single-pin module can be installed.

HF16B-NLA

The HF16B series frame can accommodate four modular ferment-based positions, that is two 2-pin modules can be installed.

HF24B-NLA

The HF24B series frame is the one in this series that can accommodate the largest number of cores, capable of simultaneously accommodating six single-pin modules and suitable for all 24B hoods&housings.

ASSEMBLED PRODUCT

with hoods

As shown in the picture, it is the appearance of the product after assembly. The insert is connected to the frame inside and tightened with the internal screws. The outside is protected by an aluminum alloy hood.

with a frame

The picture shows two 2-pin modules assembled in a 16B frame. Our products are widely used in the pitch system of wind power generation and can achieve the transmission of various signals.

wind industry

Wind power equipment often faces challenges such as high salt spray, high humidity, and extreme temperatures. HAOKE connectors employ cast aluminum alloy and also provide highly corrosion-resistant metal hoods, meeting the anti-corrosion requirements for offshore wind power (salt spray test ≥48 hours). With an overall protection rating of IP65/IP68, they ensure long-term stable operation. The unique sealing design and anti-vibration structure guarantee reliable power and signal transmission, catering to the diverse needs of both onshore and offshore wind power applications.

>

Learn more about wind power >>

injection molding machines

As injection molding machines become more compact, the internal space of the equipment becomes increasingly limited. This compact heavy-duty connector design can fully match the compact wiring scenario of the injection molding machine, achieving efficient power and signal transmission in a limited space, meeting the space utilization requirements of the injection molding machine and promoting the development of injection molding machines in a more compact and efficient direction.

>

Learn more about hot runner industry >>

Energy Dispersive X-ray Fluorescence Spectrometer

DC Temperature Rise Test

temperature test bed

warehouse

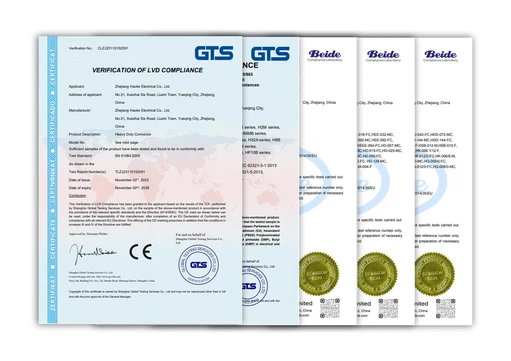

UL CERTIFICATIONS
