H2MK-002-f

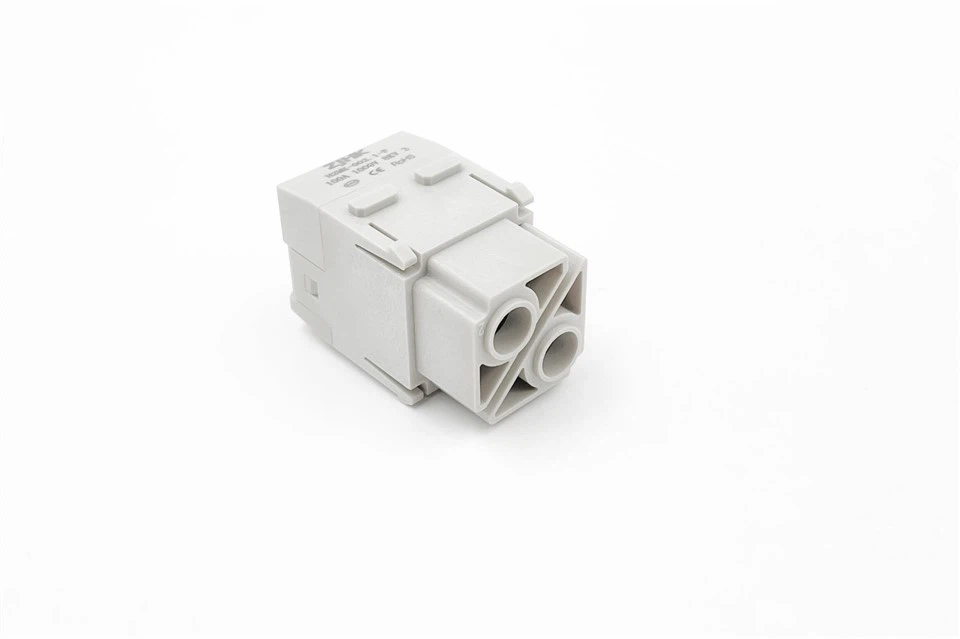

H2MK-002-F is a 2-pin axial crimp module insert of the HM series, which is connected to each other by axial crimping with bolts and can maintain stability in harsh environments. It can be used with the male inserts of this series. The operation and connection are carried out using an hexagonal driver.The operation method is simple and convenient, and it can achieve strong stability. It is an effective way to realize current transmission in special environments.
TECHNICAL CHARACTERISTICS
| Specifications |
DIN EN 60 664
|
Specifications |
DIN EN 61 984
|
| Inserts | Number of contacts |
2
|
|
| Electrical data Acc.to EN 61 984 | Rated Current |
100A
|
|
| Rated Voltage |
1000V
|
Rated Impulse Voltage | 8kV |
| Pollution Degree | 3 | Rated Voltage Acc.to UI CSA | 600V |
| Insulation Resistance | ≥1010Ω | Material |
Polycarbonate |
| Limiting Temperature | -40℃...+125℃ | Flammability Acc.to UL94 | V0 |
| Mechanical Working Life-mating Cycles | ≥500 | Contacts | |
| Material | Copper Alloy | Surface |
Hard-silver Plated
|
| Contact Resistance | 0.3mΩ | To IEC 60 228 Class 5 | |
|
AXIAL SCREW TERMINAL mm2 |
10-38mm2 |
AWG |
6-2 |
|
HEXAGONAL DIRVER STRIPPING LENGTH |
SW 4
13mm
|
TIGHTENING TORQUE mm2 NM |
10 16 25 35 6 6 7 8 |
DIFFERENT PERSPECTIVES
device connecting
This axial connected 2-pin insert is connected to the machine and electrical equipment through this side, and large current transmission is achieved by tightening with screws.
insert interconnect
One side of the crimping pin of this insert is connected to the matching female crimping pins, and the current and signal transmission are achieved through the internal silver-plated pins.
MATCHING FRAME
HF6B-NLA
HF10B-NLA
HF16B-NLA
HF24B-NLA
APPLICATIONS
wind energy
Wind power equipment operates under harsh conditions including high salt spray, humidity, and extreme temperatures. To address these challenges, HAOKE connectors utilize cast aluminum alloy construction and highly corrosion-resistant metal hoods. They meet stringent offshore anti-corrosion standards, withstanding salt spray tests for ≥48 hours. With a protection rating of IP65/IP68, a unique sealing design, and an anti-vibration structure, these connectors ensure long-term, stable operation. They provide reliable power and signal transmission, catering to the diverse needs of both onshore and offshore wind farm applications.
Construction Machinery
Heavy duty connectors are vital for the reliable operation of construction machinery like excavators and cranes in harsh environments. They ensure stable power and signal transmission for critical functions, from an excavator's precise hydraulic control to a crane's complex lifting movements. With features like high vibration resistance and IP68 protection, these connectors safeguard connections against dust, moisture, oil, and constant shock. This reliability is indispensable for the safety, efficiency, and durability of equipment operating under extreme conditions.
PROFESSIONAL EQUIPMENT & WAREHOUSE
DC Temperature Rise Test: Ensuring Connector Reliability
The DC Temperature Rise Test is a critical validation method for assessing the electrical performance and safety of heavy-duty connectors. It measures the temperature increase in a connector under maximum rated DC current, simulating real-world operational stress. A low temperature rise indicates high conductivity, robust contact design, and efficient power transmission with minimal energy loss. For heavy-duty applications in construction machinery, renewable energy, and industrial automation, this test is indispensable. It certifies that connectors can handle high currents without overheating, thereby ensuring long-term operational stability, preventing failures, and guaranteeing safety in demanding environments.
