PRODUCTS DESCRIPTION
H2MEE-020-MC

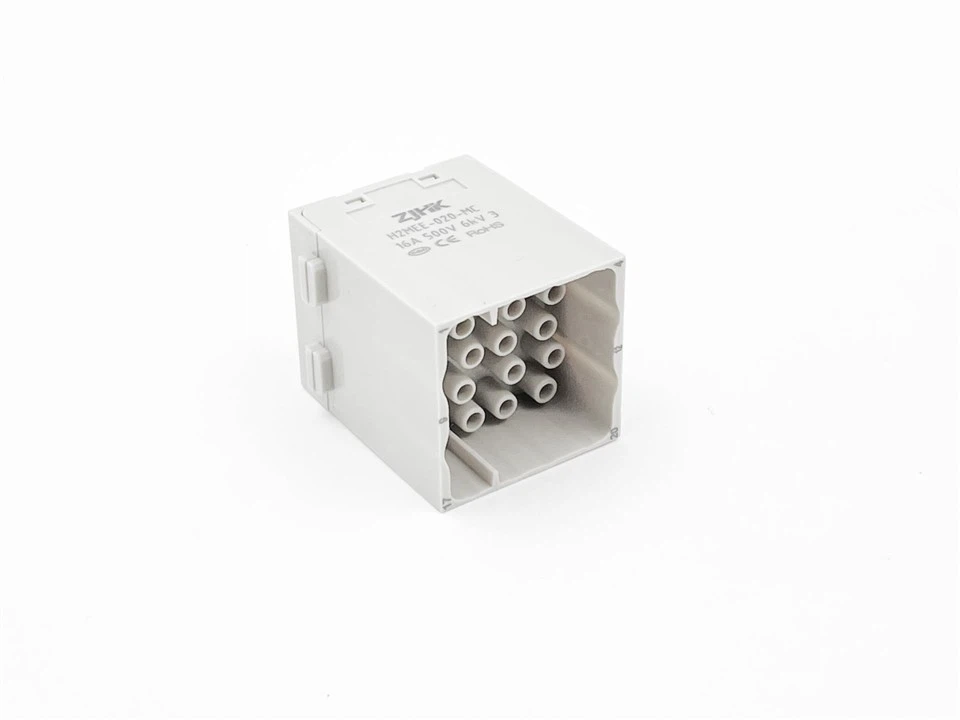

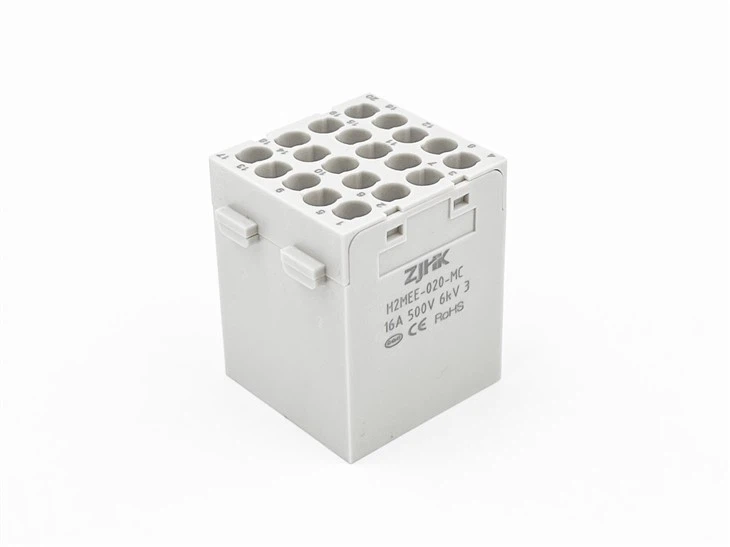

The illustration shows a 20-core cold-pressed connector, which integrates a male cold-pressed pin inside and can be used in conjunction with the corresponding ferrules to achieve synchronous connection of 20 signals. This connector can also be paired with 16A crimping pins (silver or gold plating available), which are fixed with a dedicated crimping tool to form a high-strength, vibration-resistant electrical interface, suitable for wires with cross-sectional areas ranging from 0.14 to 4 mm².
TECHNICAL CHARACTERISTICS
Specifications
DIN EN 60 664
DIN EN 61 984
Inserts
Number of contacts
8
Electrical Data Acc.to EN 61 984
Rated Current
16A
Rated Voltage
500V
Rated Impulse Voltage
6kV
Pollution Degree
3
Rated Voltage Acc. to UL/CSA
600V
Insulation Resistance
≥1010Ω
Material
Polycarbonate
Limiting Temperature
-40℃...+125℃
Flammability Acc.to UL94
V0
Mechanical Working Life-mating Cycles
≥500
Contacts
Material
Copper Alloy
Surface
Hard-silver/hard-gold Plated
Contact Resistance
≤1mΩ
Crimp Terminal
mm2
0.14-4mm2
AWG
26-12
CONSIDERATE SERVICE
Our products include a one-year warranty for comprehensive coverage against common operational faults. Furthermore, our professional after-sales team is readily available to address any concerns post-purchase, ensuring your consumer rights are fully protected.
MULTIPLE PERSPECTIVE
at the bottom
This is the side at the bottom of the product where the machine and wires are connected. It can be connected to 8 wires to achieve a transmission of 16A and 500V.
insert interconnection
As shown in the figure, the male and female crimp contacts are connected to each other, and the male insert is connected to the male crimp contacts to achieve a 20-pin wire connection.
