Product quick Details
Han EE 16B with 32 contacts + earth

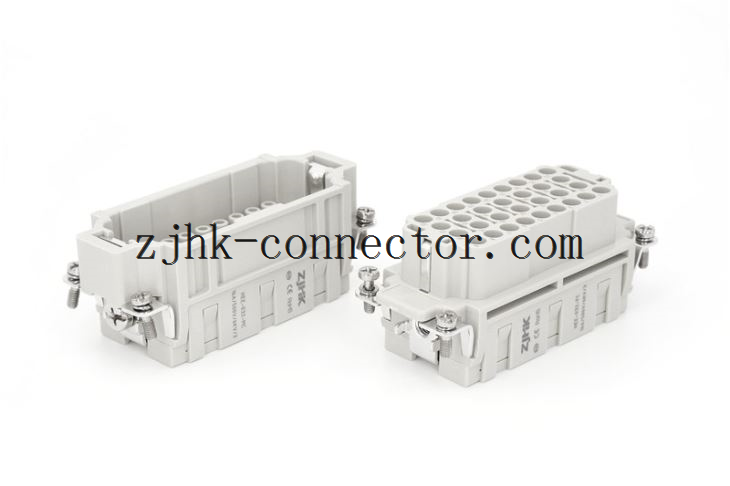

Han EE male and female inserts for receiving crimping contacts: 32 contacts + PE
Crimp contacts ordered separately.
ZJHK® EE 16A Crimp Series
These ZJHK® HEE inserts are rated at 16A. They are intended for use with hoods and housings contained within ranges 5, 6, 7, & 8. These hood and housing ranges are associated to a specific ZJHK 'Size' number identifier. See the 'compatibility' table for details of this relationship, and stock numbers of hoods and housings that are typical of each range.
Technical data
Content | 1 pc(s) |
Manufacturer part # | 09320463001 & 09320463101 |
Product type | Pin inset |
Connector series | HEE |
Number of pins | 32 |
Type of pin configuration | 32+PE |
Case | size H16B |
Electrical mounting | Crimp terminal |
Current rating | 16A |
Rated voltage | 500V |
Insulation resistance | ≥1010Ω |
Contact plating | Silver plated |
Operating temperature | -40...125°C |
Flammability rating | UL94V-0 |
Insulator material | polycarbonate |
Mechanical durability | 500cycles |
Contact material | copper alloy |
Wire size | 26AWG...12AWG |
Wire cross section | 0.14...4.0mm2 |
Recommended stripping length | 7.5mm |
Inserts in self-extinguishing
thermoplastic material reinforced with glass fibres, UL approved, with a limit working temperature from -40°C to +125°C.
For some series, inserts in PPS (polyphenylene sulphide) may be
requested for special uses with temperatures of up to 180°C.
