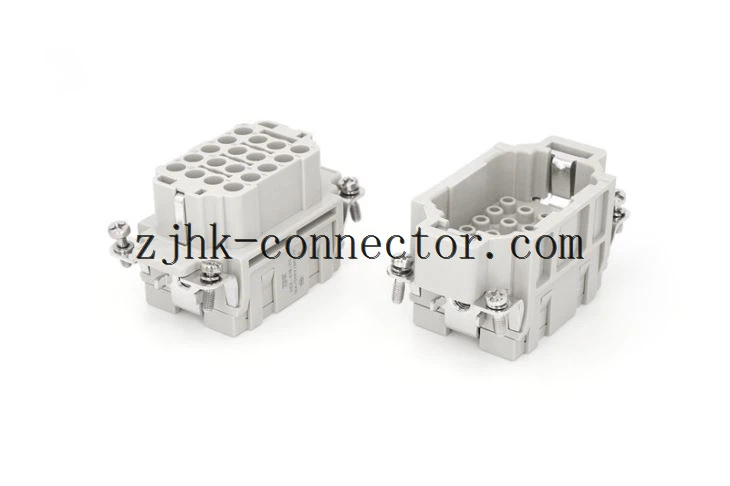

Picture View
Technical Characteristics
Type of connector | HDC |
Specifications | DIN EN60 664/ DIN EN61 984 |
Number of Contactors | 18+PE |
Case | 10B |
Electrical mounting | crimped |
Rated Voltage acc. to DIN EN 61 984 | 500V |
Rated Voltage acc. to UL/CSA | 600V |
Rated Current | 16A |
Rated Impulse Voltage | 6KV |
Insulation Resistance | >1010 Ω |
Material | Polycarbonate |
Operating Temperature | 40°C…+125°C |
Flammability acc. to UL 94 | V0 |
Mechanical Working Life (Mating Cycles) | >500 |
Contacts Material | Copper Alloy |
Contacts Surface | Standard Hard-Silver Plated, Optional Hard-Gold Plated |
Contacts Resistance | <3mΩ |
Spring Terminal Wire Gauge | AWG26-12 / 0.14 - 4.0mm2 |
Stripping Length | 7-9mm |
Manufacturer | ZJHK |
Order Crimp Contacts Separately
Acceptable wire cross section area:
·0.37mm2
·0.5mm2
·0.75mm2
·1.0mm2
·1.5mm2
·2.5mm2
·3.0mm2
·4.0mm2
Warning ：
These connectors should not be mated or unmated under electrical load. Connectors of the same or different types arranged in a line should be polarised to prevent the possibility of wrong connection.
