ZJHK E series 48 poles +E 16A - 500V Terminal
Manufacturer | Haoke |
Type of connector | rectangular |
Kind of connector | Male and Female |
Connector series | HE |
Number of pins | 48 |
Type of pin configuration | 48+PE |
Case | size 48B |
Electrical mounting | screw terminal |
Current rating | 16A |
Rated voltage | 500V |
Mechanical durability | 500cycles |
Flammability rating | UL94V-0 |
Contact plating | silver plated |
Plating thickness | 3µm |
Contact material | copper alloy |
Operating temperature | -40...125°C |
Engineering PN | ZJHK HE 32 Pos. M&F Insert Screw |
Insert mounting | 77,5x27mm |
Wire cross section | 0.14...2.5mm2 |
Certification | UL, CSA, CCC, CE，Rohs certified |

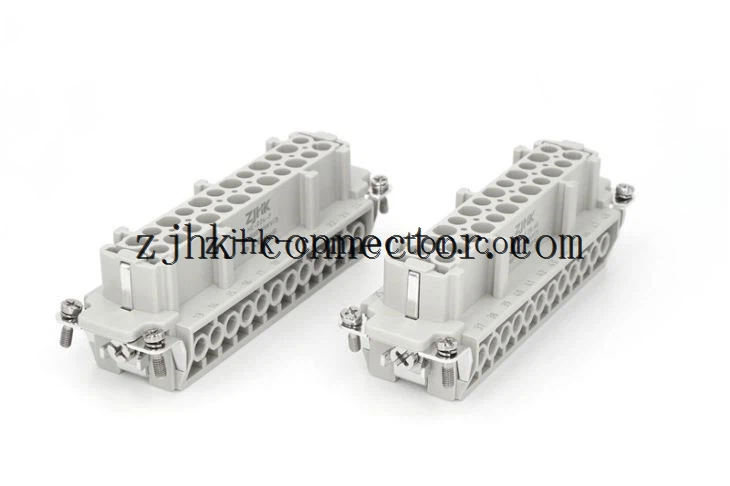

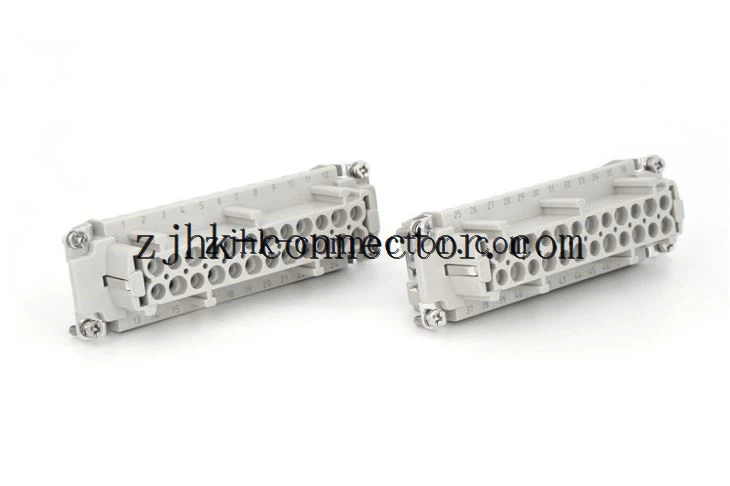

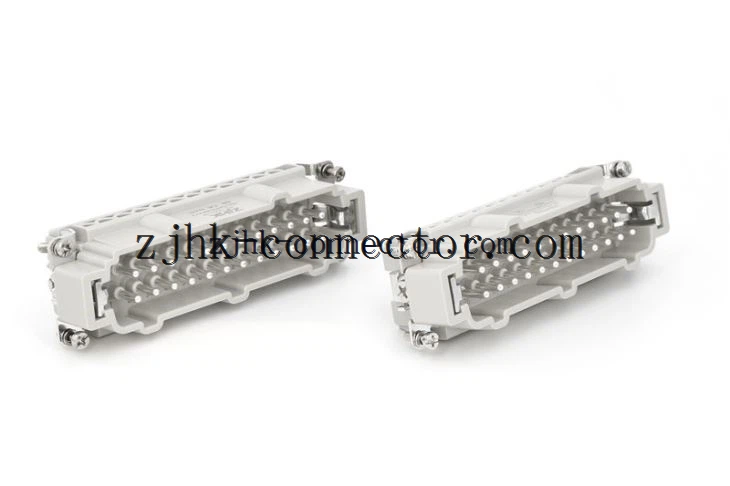

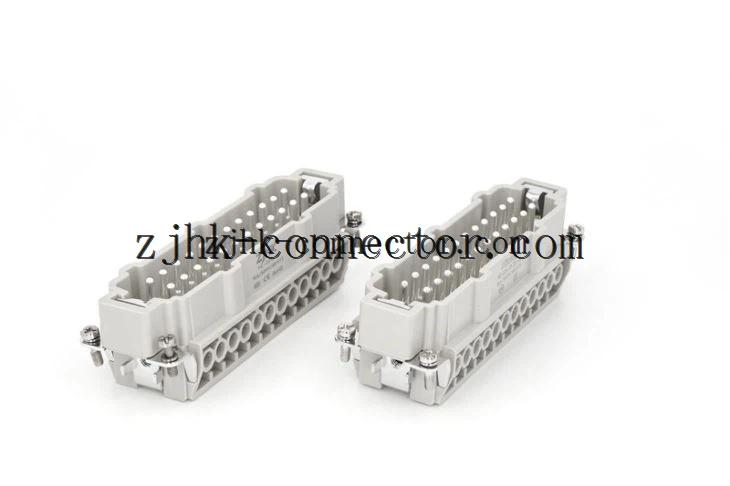

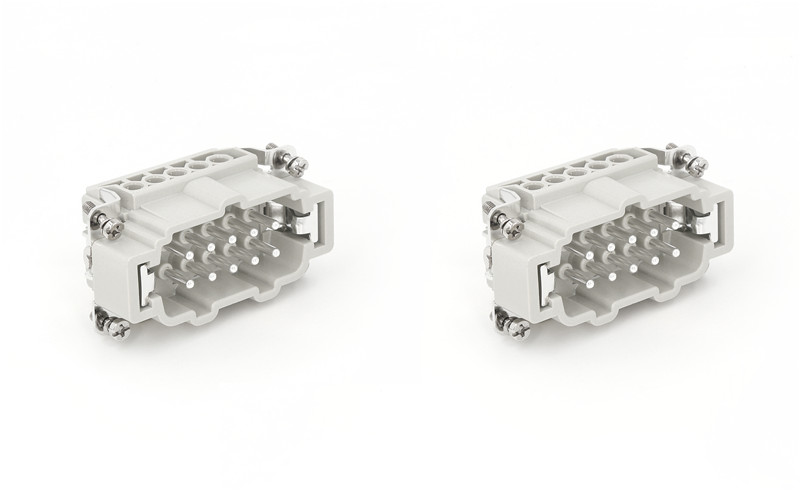

Picture of inserts（Male and Female）
Drawing
Product Application Information
ZJHK industrial connectors are suitable for all applications that require a safe and removable electrical connection in protected electrical areas.
ZJHK HE® 16A Screw Series
These HE® inserts are rated at 16A. They are intended for use with hoods and housings. All these hoods and housing ranges are associated to a specific ZJHK ’Size’ number identifier.
For more information on this relationship, please contact our personnel and and stock numbers of hoods and housings that are typical of each range.
Our professional team is looking forward to hearing from you.
FAQ:
1.Q:You said your connector can replace Harting ,but what’s your advantage?
A:Our produce is all follow Germany Standard (material of PC、contacts（Pin）and size) ，the delivery is short than Hartig.
About the delivery usually will within 10days. Also our price is lower than Harting 40-50%.
So most of clients who use those brand before,After the test ,they choose us.
2.Q:What’s your material for inserts ?
A:In order to guarantee the quality of the products, we use the imported material SABIC 3412 for injection molding.
3.Q:Do you have any agent around word?
A:Yes ,We are honored to be favored by Korean and Italian (Northern) customers and have signed an agency agreement.
4.Q：Can i choose your connector to replace other brand ? Such as ILME、TE?
A:Of curse! Our coneector can replace TE、ILME、Weidmuller etc.
