Product Features
For fast coding with plastic profile
PE connection using tension sleeve technology
Key commercial data
package_quantity | 1 |
Connection method | Screw connection |
Tightening torque | 0.5 Nm |
Pollution degree | 3 |
Surge voltage category | III |
Number of positions | 24+PE |
Insertion/withdrawal cycles | ≥ 500 |
Design | H24B |
Conductor cross section | 0.14 mm² ... 2.5 mm² |
Connection cross section AWG | 26 ... 14 |
Stripping length of the individual wire | 7 mm |
Connection | Connectors may only be actuated when there is no load/voltage. |
Ambient temperature (operation) | -40 °C ... 125 °C (including heating up of contacts) |
Inflammability class according to UL 94 | V0 |
Contact material | Copper alloy |
Contact surface material | Siliver plated |
Electrical characteristics | |
Rated voltage (III/3) | 500 V |
Rated surge voltage | 6 kV |
Rated current | 16 A |

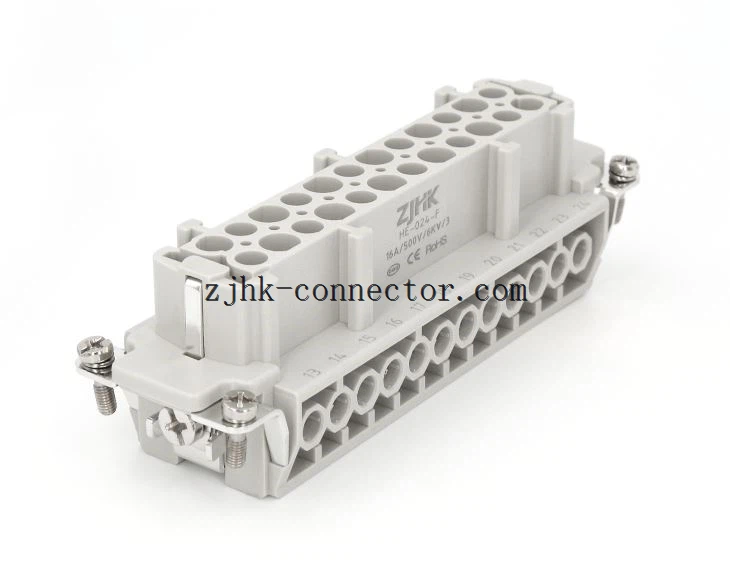

ZJHK® HE 09330242601 & 09330242701 ZJHK 24 + PE Screws
Heavy industrial connectors for the toughest requirements in automotive, machine and plant engineering.
ZJHK® HE 024 Pin Commonly used for various mechanical equipment connections. For example: robots, equipment automation, cranes, control cabinets, hot runners, hot runner control cabinets, wiring harnesses, etc.
In combination with ZJHK® metal casing, sealing and locking mechanism protect the connection from external influences such as mechanical shocks,foreign bodies,humidity,dusty,water or other fluids such as cleaning and cooling agent,oils,etc.
The following table shows the different degrees of protection:
FAQ:
1. Q: Are you manufactory or trade company?
A: We are the manufactory in Wenzhou,Zhejiang Province,China.
2. Q:What’s your material for inserts ?
A: In order to guarantee the quality of the products, we use the imported material SABIC 3412 for injection molding.
3. Q: Do you have any agent around word?
A: Yes ,We are honored to be favored by Korean and Italian (Northern) customers and have signed an agency agreement.
4. Q: what’s your advantage compare with Harting、ILME、TE（SIBAS）?
A: Our HDC can replace Harting、ILME、TE（SIBAS）perfectly,most of clients who use those brand before,After the test ,they choose us.Also our price is lower than Harting 40-50%.
5. Q: Can we use your HDC Male part match Harting Female part ? Or Female part match Male part.
A: Of curse we can match harting perfectly.
