Features:
TYPE：HMD-012-MC/HMD-012-FC
Part number:
09140123001(Male)
09140123101(Female)
• 12 Pin Pcrimp contacts
• Modules are polarised
• Use crimp tool stock with locator stock
• Extraction tool is stock n
• Mating cycles ≥ 500
• Heavy duty power connector
Specifications
Accessory Type | Module |
Gender | Male and Female |
Current Rating | 10A |
Voltage Rating | 250 V |
Number of Contacts | 12 |
Range | HM |
Series | ZJHK H-Modular |
Number of Rows | 2 |
Termination method | Crimp termination |
Details | Please order crimp contacts separately. |
Conductor cross-section | 0.14 ... 2.5 mm² |
Rated current | 10 A |
Rated voltage | 250 V |
Rated impulse voltage | 4 kV |
Pollution degree | 3 |
Limiting temperature | -40 ... +125 °C |
Mating cycles with other HMC components | ≥ 10,000 |
Material (insert) | Polycarbonate (PC) |
Country of origin | China |

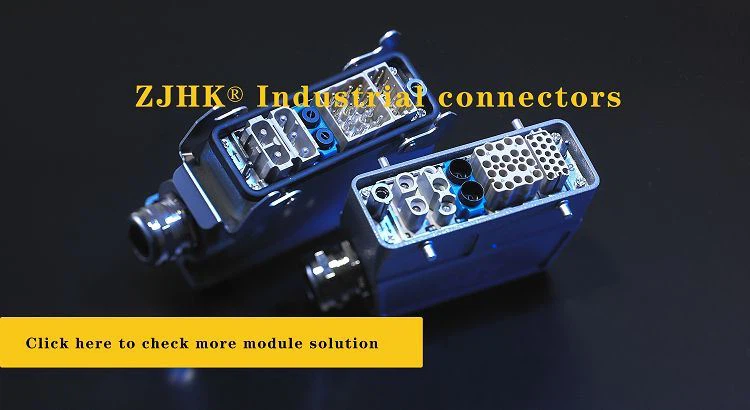

The H-Modular series is a system consisting of insert modules and frames into which the insert modules fit. These in turn may be fitted to standard ZJHK housings. The system allows a variety of insert configurations within the one connector assembly. The ZJHK H-Modular system is designed to meet specific requirements of individual customers and offers flexibility when considering connections for signal, power & pneumatic lines when a solution is required with one connector Apart from the quality of the crimp connector, the right choice of the assembly tool is the basic element of a reliable connection. HAOKE offers appropriate crimping tools for different levels of automation for all connectors.
FAQ:
1.Q:Free Sample.
A:we provide small products to check quality for you, just you pay the express fees.
2.Q:What’s your material for inserts ?
A:In order to guarantee the quality of the products, we use the imported material SABIC 3412 for injection molding.
3.Q:Do you have any agent around word?
A:Yes ,We are honored to be favored by Korean and Italian (Northern) customers and have signed an agency agreement.
4.Q:Can we use your HDC Male part match Harting Female part ? Or Female part match Male part.
A:Of curse we can match harting perfectly.
5.Q:I were use Harting brand before,can i tell you their order number to help me match ?
A:Of course you can help you.Actually , in order to facilitate the use of harting's customers, we have set the order number to be the same as HARTING, so that customers can match and replace.
