40 A module, Crimp termination, Male, Contacts: 2, Conductor cross-section: 1.5 ... 10 mm², Rated current: 40 A, Polycarbonate (PC), RAL 7032 (pebble grey)
Part number:
09 14 002 3002 / 09140023102
Category | Modules |
Series | ZJHK-Modular |
Type of module | 40 A module |
Termination method | Crimp termination |
Gender | Male and Female |
Number of contacts | 2 |
Details | Please order crimp contacts separately. |
Conductor cross-section | 1.5 ... 10 mm² |
Rated current | 40 A |
Rated voltage | 1000V |
Rated impulse voltage | 8 kV |
Pollution degree | 3 |
Insulation resistance | >1010 Ω |
Limiting temperature | -40 ... +125 °C |
Mating cycles | ≥ 500 |
Packaging size | 5 |
Country of origin | China |
Tool | TL02-0G/TL02-3G Crimping Tool, TL06G Contact Removal Tool |
Material of Inserts | Polycarbonate |
Date of drawing
The ZJHK-Modular® System can be put together as per each requirement from various basis modules. It can be used practically as proven standard contacts and housing
Highlights & Details
· Manufacturer type description: ZJHK® HM module
· Your order canbe ship with in 10 days after payment.
· The order usually only 7-10 days from door to door
Comments
Suitable crimp contacts must be ordered separately!
Complete product composition
Related Products

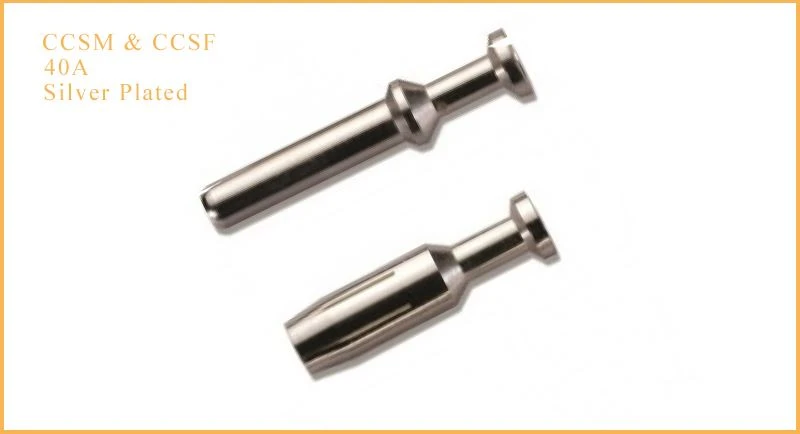

CCSM&CCSF
Available Options
40A Crimp Contact Wire Gauge
Copper Alloy with Silver Plated Finish
1.5mm - AWG16- ø1.75
2.5mm - AWG14- ø2.25
4mm - AWG12- ø2.85
6mm - AWG10- ø3.5
10mm - AWG8- ø4.3
Heavy duty connector makes an effective electrical and mechnical connection for various industrial application. Compared to traditional industrial connectors, the heavy duty connectors provide a IP65 protection against harsh environment and save 30~50% labour cost in installation and mantaince.
Therefore, it is widely used in mechinery, electrical control, railway transportation, automation, robotics, wind energy and engery distribution.
RFQ：
1.Q:Are you manufactory or trade company?
A:We are the manufactory in Wenzhou,Zhejiang Province,China.
2.Can we use your HDC Male part match Harting Female part ? Or Female part match Male part.
Of curse we can match harting perfectly.
3.what’s your advantage compare with Harting、ILME、TE（SIBAS）?
Our HDC can replace Harting、ILME、TE（SIBAS）perfectly,most of clients who use those brand before,After the test ,they choose us.Also our price is lower than Harting 40-50%.
4.Q:Do you have a catalogue? Can you send me the catalogue to have a check of all your products?
A:Yes, We have product catalogue. Please contact us on line or send an Email to sending the catalogue.(Our catalogue is very large,so we usually send it by Pcloud or Wetransfer)
5.Q:Can I get a sample before the order because I really don't how is your heavy duty connector quality?
A:Of course!We also think sample order is the best way to build the trust.
6.Q:I were use Harting brand before,can i tell you their order number to help me match ?
A:Of course you can help you.Actually , in order to facilitate the use of harting's customers, we have set the order number to be the same as HARTING, so that customers can match and replace.
