HA-010-M

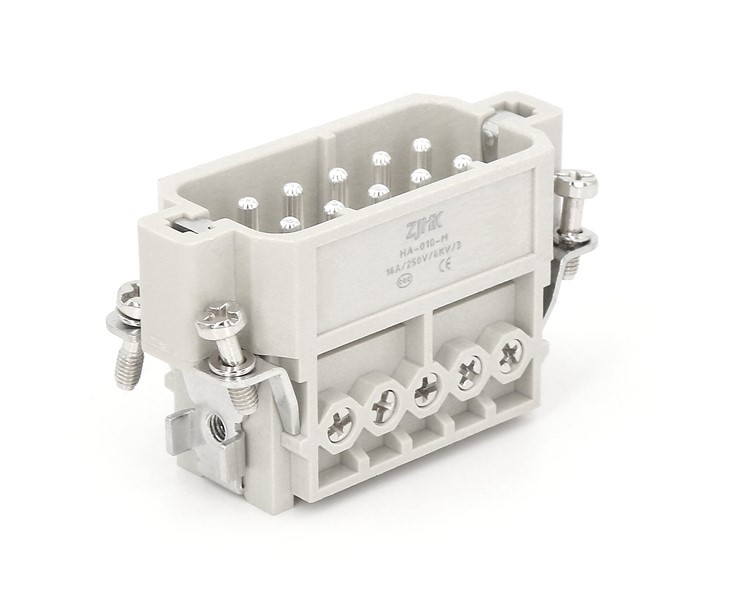

The HA-010 series hoods feature a compact design, with 10 wires closely arranged and side-mounted grounding. As shown in the left picture, the 10 silver-plated pins inside this series of products are used for conducting electricity.
We offer unbranded and label-free options to ensure compatibility with most major connector brands. This space-saving solution significantly enhances space utilization while ensuring the stable operation of the equipment.
technical specification
Specifications
DIN EN 60 664/DIN EN 61 984
Number of contacts
10
Rated Current
16A
Rated Voltage
250V
Rated Impulse Voltage
4kV
Pollution Degree
3
Pollution Degree2 Also
16A 230/400V 4kV 2
Rated Voltage Acc.to UL Csa
600V
Insulation Resistance
≥1010Ω
Material
Polycarbonate
Limiting Temperature
-40℃...+125℃
Flammability Acc.to UL94
V0
Mechanical Working Life-mating Cycles
≥500
Contacts
Material
Copper Alloy
Surface
Hard-silver/Hard-gold Plated
Contact Resistance
≤1mΩ
Screw Terminal
Wire Gauge
1.0-2.5mm²
AWG
18-14
Tightening Torque
0.5Nm
productive process
Our precision inserts are manufactured through a fully automated production system, featuring a streamlined three-stage assembly process: (1) Core Pin Insertion - utilizing high-precision robotic positioning to install conductive pins with ±0.01mm accuracy; (2) Wire Connection Assembly - employing a dual-row screw matrix for secure electrical connections;(3) Housing Encapsulation - implementing torque-controlled fastening to structurally bond components. This automated process ensures consistent quality and precision in every unit produced.
widely applications
As a key player in heavy duty connectors, HAOKE ELECTRIC delivers reliable solutions for wind power, industrial automation, construction machinery, and robotics. Our connectors ensure stable performance in extreme conditions-high temperatures, vibration, dust, and moisture-enhancing efficiency in wind turbines, hot runner molds, heavy equipment, and automated systems.
With industry-standard configurations, we support high-current and precision signal transmission, helping clients improve reliability while reducing lifecycle costs across critical applications.
CURRENT CARRYING CAPACITY
The right table shows the variation of the operating current of HA-010 with the ambient temperature
OPERATING CURRENT
The right image illustrates the current rating specifications of our HA-010-M series. When compared with comparable models, the HA-010-M exhibits more conservative current ratings under equivalent operating conditions.
MULTIPLE PERSPECTIVES OF HA-010-M SERIES
Professional testing equipment
Our facility is equipped with comprehensive testing equipment that meets international standards. We have specialized tools including smoke testers, programmable climate chambers, UV resistance testers, and insertion/extraction force testers. For example, we perform 24-hour salt spray tests on standard iron components to verify their durability in humid conditions.
Comprehensive testing equipment meets international standards.
24-hour salt spray tests verify iron durability.
EDXRF detects heavy metals for environmental compliance.
Load tests establish safe conductor ampacity limits.
Energy Dispersive X-ray Fluorescence Spectrometer
EDXRF Spectrometer is widely used for environmental protection testing, material analysis of plastic components, and measurement of copper/rust content. In environmental applications, it enables rapid and accurate detection of heavy metals (e.g., lead, cadmium, mercury) in soil, water, and air pollutants, ensuring effective environmental monitoring and compliance with safety regulations.
DC Temperature Rise Test
This test monitors conductor temperature under load to determine safe current capacity. As current increases, resistive heating causes temperature rise, reducing ampacity. The evaluation considers conductor size, ambient conditions, and thermal properties to establish safe operating limits and prevent overheating in electrical systems.
