HA-016-M

The HA-016 series features a space-saving design with 16 tightly arranged contacts and side-mounted grounding. As shown in the left illustration, these connectors utilize silver-plated pins for optimal conductivity.

Available in unbranded versions for broad compatibility, this compact solution maximizes space efficiency without compromising operational reliability.

technical specification

Specifications

DIN EN 60 664/DIN EN 61 984

Number of contacts

Rated Current

16A

Rated Voltage

250V

Rated Impulse Voltage

4kV

Pollution Degree

Pollution Degree2 Also

16A 230/400V 4kV 2

Rated Voltage Acc.to UL Csa

600V

Insulation Resistance

≥10¹⁰Ω

Material

Polycarbonate

Limiting Temperature

-40℃...+125℃

Flammability Acc.to UL94

Mechanical Working Life-mating Cycles

≥500

Contacts

Material

Copper Alloy

Surface

Hard-silver/Hard-gold Plated

Contact Resistance

≤1mΩ

Screw Terminal

Wire Gauge

1.0-2.5mm²

AWG

18-14

Tightening Torque

0.5Nm

APPLICATION FIELDS

Our products are extensively utilized in a variety of industrial applications, including precision hot runners, automated robots, and heavy-duty construction machinery. Thanks to the highly compact design of the HA series chips, efficient current and signal transmission can be achieved within a significantly reduced space, enhancing performance while optimizing system integration.

ADVANTAGES OF OUR PRODUCTS

Our products are manufactured in compliance with industry-standard specifications, and we also specialize in customized solutions tailored to meet specific requirements. They are designed to be compatible with a wide range of leading brands in the market, including Harting, ILME, TE Connectivity, and others. Additionally, our products have obtained internationally recognized certifications such as UL, EAC, UKCA, RoHS, and ISO 9001, ensuring superior quality and global compliance.

CURRENT CARRYING CAPACITY

The right table shows the variation of the operating current of HA-016 with the ambient temperature

OPERATING CURRENT

The right image illustrates the current rating specifications of our HA-016-M series. When compared with comparable models, the HA-016-M exhibits more conservative current ratings under equivalent operating conditions.

A COMPREHENSIVE PERSPECTIVE OF PRODUCTS

the material of plastic part

PC from SABIC delivers robust, heat-resistant (125°C) and flame-retardant (UL94 V-0) connector inserts for demanding industrial applications.

convenient wiring method

16-pin screw-terminal insert, wired from the bottom, allowing a wiring gauge of 1-2.5 square millimeters.

top view

Looking down from the top, the entire product image can be observed, which is generally light gray

one set of the connector

Cowers Commercial Cleaning Robot Landing Case:China Mobile Software Park

TESTING EQUIPMENT

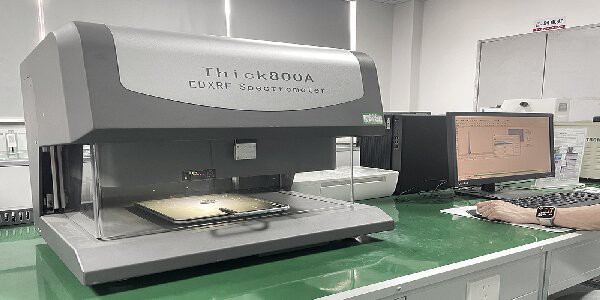

Energy Dispersive X-ray Fluorescence Spectrometer

EDXRF: Instant Multi-Element Detection with Lab-Grade Precision

The EDXRF spectrometer is a high-performance analytical instrument widely employed in environmental monitoring and industrial quality control. Its three primary applications include:

Environmental Protection: Rapid detection of hazardous heavy metals (Pb, Cd, Hg) in soil, water, and airborne particulate matter to ensure compliance with environmental regulations

Material Analysis: Precise compositional testing of plastic components and other materials

Industrial Testing: Accurate quantification of copper content and corrosion products in industrial materials

This non-destructive testing technology delivers rapid, reliable results, providing critical support for environmental assessment and material characterization.

Temperature Rise Test

High-Precision DC Temperature Rise Test: Methods and Applications

This comprehensive evaluation determines a conductor's safe current capacity by analyzing temperature rise under load while accounting for conductor properties (size, material, thermal characteristics), environmental conditions (ambient temperature, airflow), and operational parameters (current magnitude/duration).

The product undergoes rigorous validation including thermal cycling (-40°C to +125°C), corrosion resistance (salt spray/humidity), mechanical stress (vibration/impact), and dielectric performance testing to ensure reliable operation in harsh environments and compliance with IEC 60512 & MIL-STD-810 standards, ultimately preventing overheating failures while delivering scientifically validated ampacity ratings for critical electrical applications.

APPLICATION SCENARIOS

Our products are widely used in various industries, such as hot runner,transportation,textile machinery,wind power.

Molding machine

hot runner industry

The heavy-duty connector, designed for high reliability, supports hot runner molds and extrusion equipment (16/24-pin standard), excelling in high-temperature, high-current applications.

The carriage

railway transportation

It offers plug-and-play modules for power, control, and other subsystems, plus highly reliable connections for traction and signal systems, meeting extreme environment demands.

Printing machinery

textile machinery

Heavy-duty connectors ensure reliable power/signal transmission in textile/printing industries, featuring high-current capacity, IP68 protection, and vibration resistance for reduced downtime in harsh environments.

Rotor blade

wind power generation

HAOKE ELECTRIC provides high-performance heavy-duty connectors for wind power, enhancing reliability and reducing lifecycle costs in clean energy systems.

MULTI-ENVIRONMENT CAPABLE

The application in the cabinet

Modular series for signal transmission

High-protection-grade connectors suitable for harsh environments

ABOUT HAOKE ELECTRIC

HAOKE ELECTRIC Co., Ltd. is a professional maker of high-quality connectors, focused on creating reliable and innovative products. We have a skilled research team and modern factories, offering custom electrical connection solutions for different industries.

Following the principle of "putting customers first and growing together," we work with top global companies and have international certifications like UL, CQC, CE, UKCA, and EAC. Our products are sold worldwide, especially in Europe and America.

HAOKE ELECTRIC – Providing smart connection technology for a variety of industries.

130+

active members

83+

export countries

20+

Annually exhibitions

13+

years experience

authorized certification

UL CERTIFICATION

VERIFICATION OF LVD COMPLIANCE

CE AND UKCA

FAQS

How to order?

Please email us your purchase order and we will send you a quotation and a proforma invoice.

Does it support hybrid transmission (power + signal + data)?

Sure, we have a framework structure and can carry out modular design.

What is the maximum supported wire diameter and cross-sectional area?

The maximum supported wire diameter can reach 44mm,we have PG48,M63.

Does it support hot plugging?

Yes, we can provide levers made of plastic to avoid high temperature.
