Quick referrence：

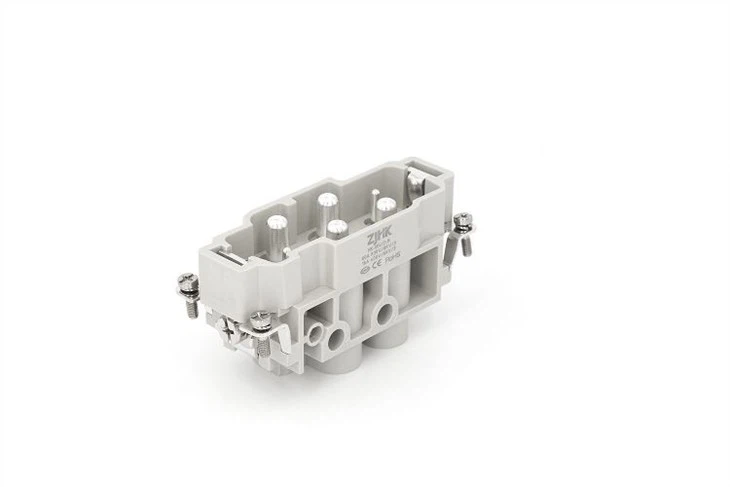

Inserts, Screw termination, Male/Female, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: 80 A, Size: 16 B, Contacts: 4, + 2 additional signal contacts, Conductor cross-section: 1.5 ... 16 mm², 0.5 ... 2.5 mm² Signal, Copper alloy, Silver plated
Category | Inserts |
Series | ZJHK-HK COMBINATION |
Identification | HK 4/2 (Male/Female) |
Termination method | Screw termination |
Gender | Male/Female |
Size | 16B |
Number of contacts | 4 |
Additional contacts | + 2 additional signal contacts |
PE contact | Yes |
Conductor cross-section(Power) | 1.5 ... 16 mm² |
Conductor cross-section(Signal) | 0.5 ... 2.5 mm² |
Rated current(Power) | 80Amp |
Rated voltage(Power) | 830 V |
Rated impulse voltage(Power) | 8 kV |
Rated current (signal) | 16 A |
Rated voltage (signal) | 400 V |
Rated impulse voltage (signal) | 6 kV |
Pollution degree | 3 |
Insulation resistance | >1010 Ω |
Contact resistance | ≤ 0.3 mΩ |
Contact resistance, signal area | ≤ 1 mΩ |
Stripping length(Power) | 14 mm |
Stripping length(signal) | 7.5 mm Signal |
Limiting temperature | -40 ... +125 °C |
Mating cycles | ≥ 500 |

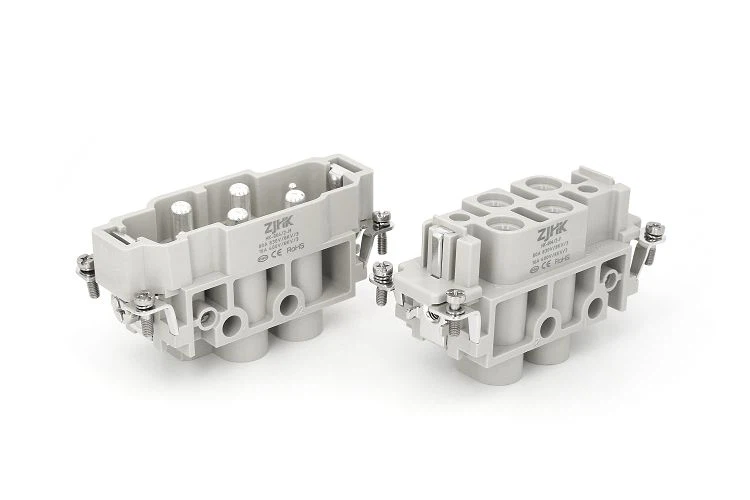

ZJHK-Com® Signal & Power (Crimp and Screw)
These ZJHK-Com® inserts are available in current ratings from 10A to 100A. They are intended for use typically with hoods and housings;
Both the female and male inserts are finger safe and can be used in many diverse applications.
The combination of very compact size and the finger protection of the female and male contacts make the new insert a viable alternative to circular IEC EN60309 connectors for many applications.
