Introduction
The 8Pin modular quick lock heavy-duty connector is designed for efficient and flexible industrial wiring applications. Featuring a compact modular structure, it supports stable power and signal transmission while helping reduce installation space. The quick lock connection method allows fast wiring without complicated tools, making installation and maintenance more convenient in automation equipment and control systems.
technical Parameters
Modular Inserts
Contacts Number
8
Rated Current
16A
Rated Voltage
400V
Material
PC, Cooper Alloy
Color
Grey
Connector Method
Quick Lock
Gender
Female/Male
Limiting Temperature
-40...+125℃
Flammablity UL 94
V0
Degree of Protection
IP65
Part Number
Male
09140085001
Female
09140085101
Product Overview
This connector is suitable for applications that require reliable connections and frequent assembly or maintenance. The modular design also provides better flexibility for different industrial requirements. With a rated current of 16A and 500V capability, it can be widely used in machinery, production lines, electrical cabinets, and other industrial environments where stable and efficient connections are needed.
Complied Hoods and Housings

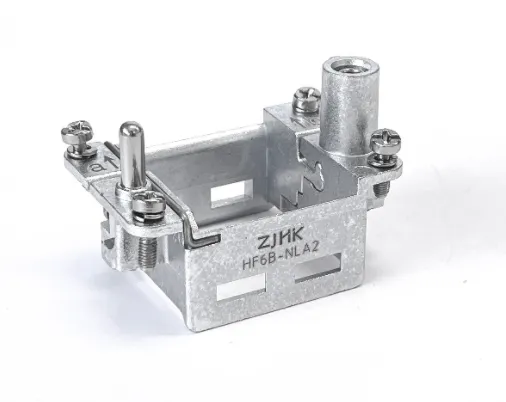

This Frame Used for 2 Moduls
Material: Zinc Die-cast
This Frame Used for 2 Moduls
Material: Zinc Die-cast
H6B-SE-2B
Size: 6B
Cable Entry: Side Entry
Bolts Number: 2
Material: Aluminium Die cast
H6B-BK-1L
Size: 6B
Cable Entry: Bulkhead Mounting
Lever: Single
Material: Aluminium Die cast
Application Scenarios
Modular heavy-duty connectors are gradually becoming an important development direction for electrical connections in rail transit. Their flexibility and integration capabilities not only improve system design efficiency but also facilitate later maintenance. As rail transit systems continue to upgrade, the performance requirements for connectors will become increasingly stringent, and manufacturing companies like Zhejiang Haoke are continuously providing the industry with more stable and practical connection solutions.
Aviation Field
Heavy-duty connectors are fully adaptable to the harsh environments of aviation, including extreme temperatures, high humidity, strong vibration and shock, and high altitudes and low air pressure . Their housings achieve an IP68 rating, effectively protecting against dust and water, ensuring operation in damp and dusty environments. The materials and structure prevent the connector from softening or deforming in high-temperature environments, and from brittleness or cracking in low-temperature environments. Their vibration-resistant design ensures a stable connection despite the complex vibrations of an aircraft, ensuring unimpeded signal and power transmission.
PACKAGING & TRANSPORTATION
ZJHK has relatively standardized packaging and shipping procedures, focusing primarily on protecting products and ensuring delivery efficiency. Products undergo inspection before shipment to ensure they are in good condition before entering the packaging stage. Generally, each product is individually packaged and labeled for easy identification of model and quantity, then packed together in boxes to minimize the risk of damage or mixing during transportation.
Regarding shipping, the company supports multiple transportation methods, allowing customers to choose international express (such as FedEx and UPS) or dedicated channels such as sea freight and air freight according to their needs. For regular orders, shipment can generally be arranged within one week after order confirmation. For frequently used models that are in stock, the shipping speed will be even faster. Overall, Haoke focuses on doing the basics well, with a clear process from packaging to shipping, ensuring product safety and making it as hassle-free as possible for customers receiving their goods.

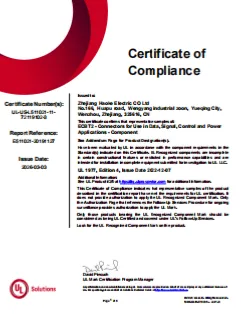

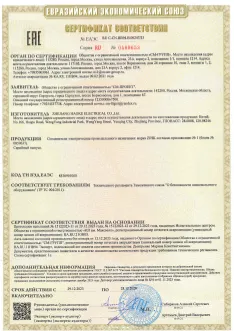

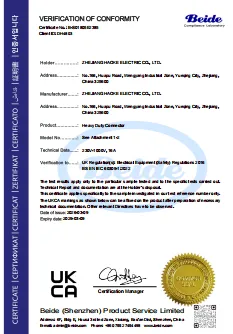

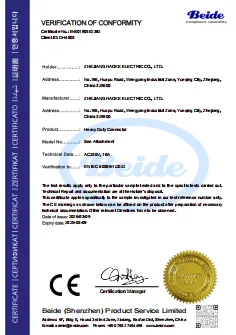

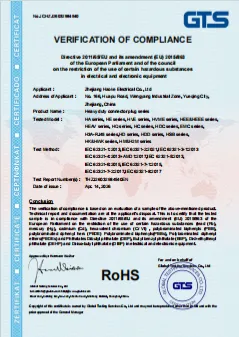

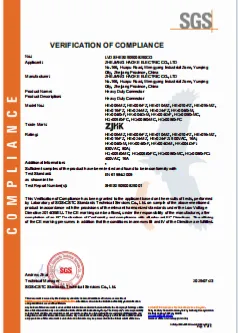

Certifications
CE
UKCA
EAC
SGS
RoHS
UL
