PRODUCTS DESCRIPTION

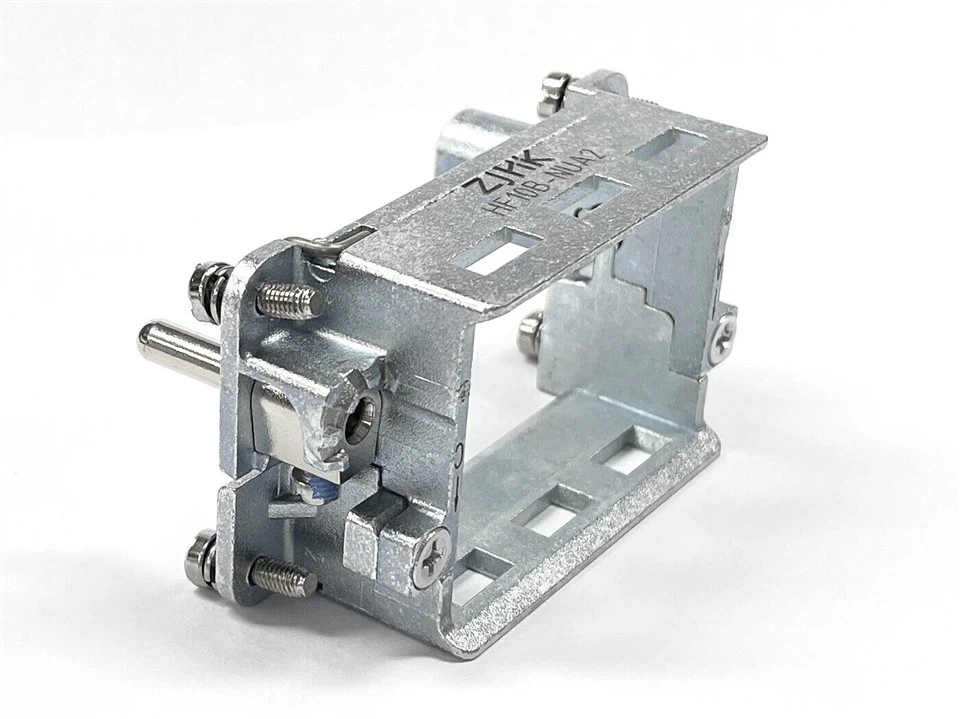

HF10B-NUA2
The HF10B series accepts any trio of single-module inserts or a mix of 2-way and 1-way blocks, giving engineers freedom to build mixed-power, mixed-signal arrays in one frame. Oversized upper-case and lower-case laser marks sit directly above each cavity-an instant, fool-proof gender check that eliminates polarity errors at first glance. Built on the same mounting grid and keying system as Harting's Han-Modular® line, the HF10B delivers benchmark interoperability without the benchmark price, cutting total connector cost by up to 30 % while preserving vibration-proof reliability and 500-mating-cycle durability.
MULTIPLE PERSPECTIVES
Side View Identification
As illustrated in the side-view diagram, each socket location is marked with a corresponding lowercase letter to distinctly identify the male and female pin positions. This visual guide enables precise orientation during assembly, ensuring correct polarity and reliable electrical connections per the designated interface layout.
Bottom screw fixation and quick assembly
As shown in the product detail view, the mounting screws are intentionally located at the base of the frame structure to provide clear visual and physical access during installation. To establish a secure electrical connection, firmly tighten the contact pins using these screws-a simplified and reliable fastening process. This bottom-positioned screw design enhances compatibility and enables seamless integration with equipment from leading industry brands.
ITERATION OF THE PRODUCTS
1st generation upercase frame
The first-generation frame adopts an integral die-cast upper and lower structure, combined with seamless end connections, achieving outstanding stability. The assembly process is simple: Just loosen the side screws, insert the required module chips and then re-tighten them. This design is widely compatible with mainstream brand interfaces and clearly distinguishes the polarity of male and female plugs through a prominent "U" -shaped logo.
The upgraded structure
The image shows the upgraded second-generation frame, which features a more user-friendly connection design. Its dual-side detachable structure allows for easy module placement and secure fastening with screws. Unlike the first generation, this left-right separation design effectively prevents the insert from dislodging during installation or removal. As a result, the second-generation frame has become the preferred choice for most customers, significantly enhancing work efficiency and operational convenience.
WAREHOUSE
At the heart of our operations lies a vertically integrated business model, incorporating both a dedicated warehouse and an in-house manufacturing plant for heavy-duty connectors. By maintaining extensive component inventories and leveraging profound production expertise, we efficiently deliver both standard and fully customized connector designs. This synergy of ready availability and flexible production not only enables the creation of tailored solutions but also reinforces a resilient and highly responsive supply chain, ensuring reliability and rapid adaptation to client requirements.
SKYRAY INSTRUMENT
Skyray Instrument is a recognized leader in the heavy-duty connector industry. We deliver high-performance, reliable connectivity solutions for challenging applications-including industrial automation, rail transit, and energy equipment. Through advanced engineering and strict quality control, our products are built to perform reliably even under extreme conditions. Every solution is designed to enhance system safety, operational efficiency, and long-term durability.
