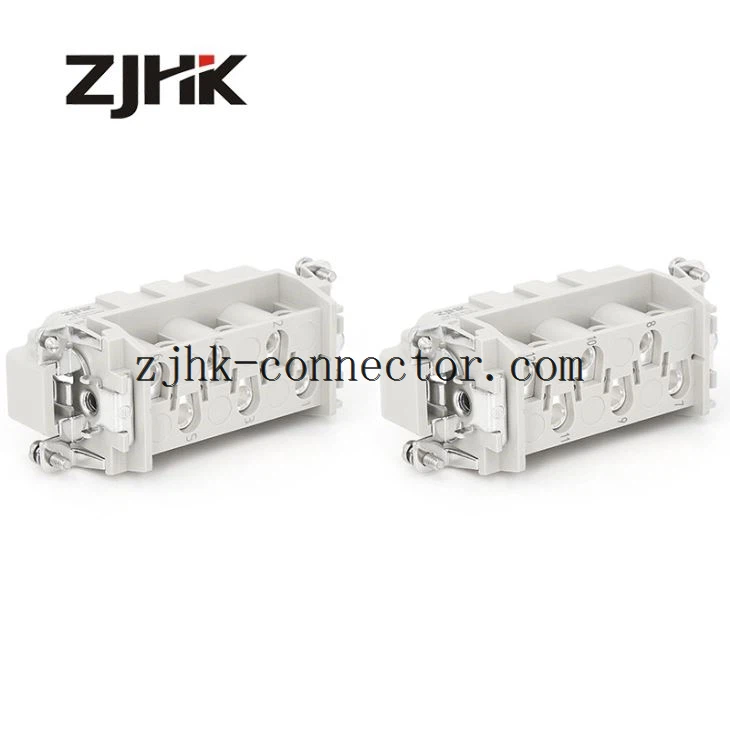

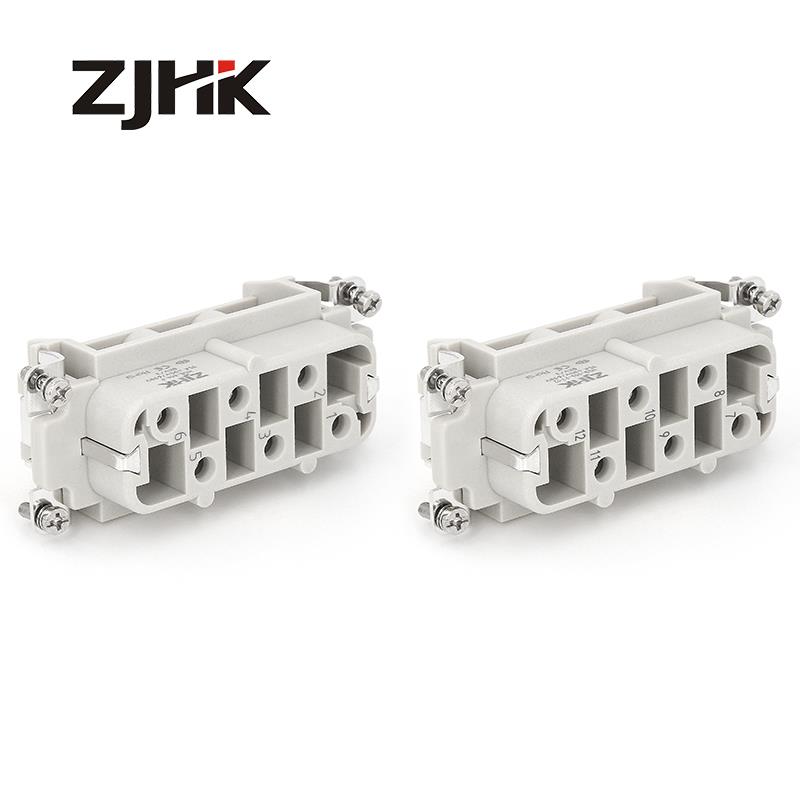

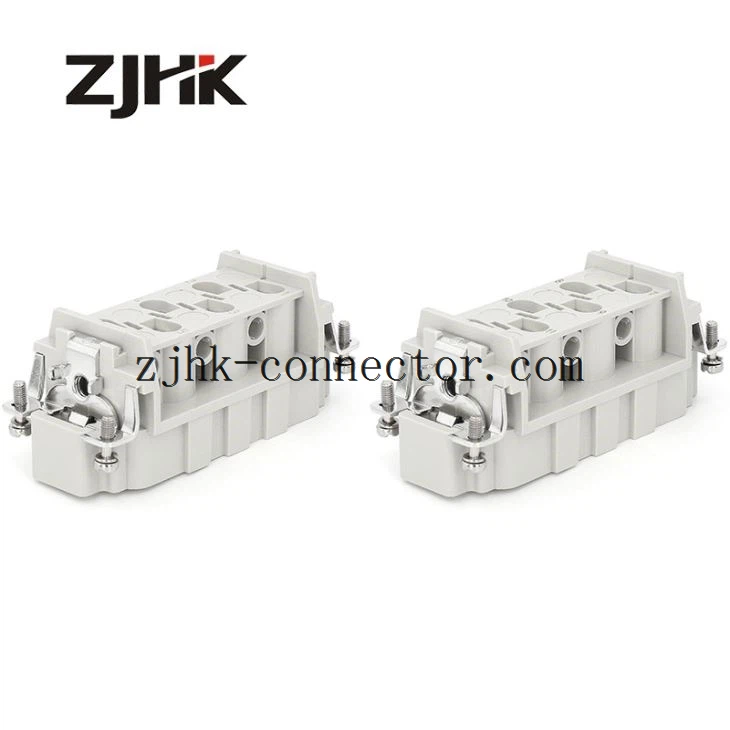

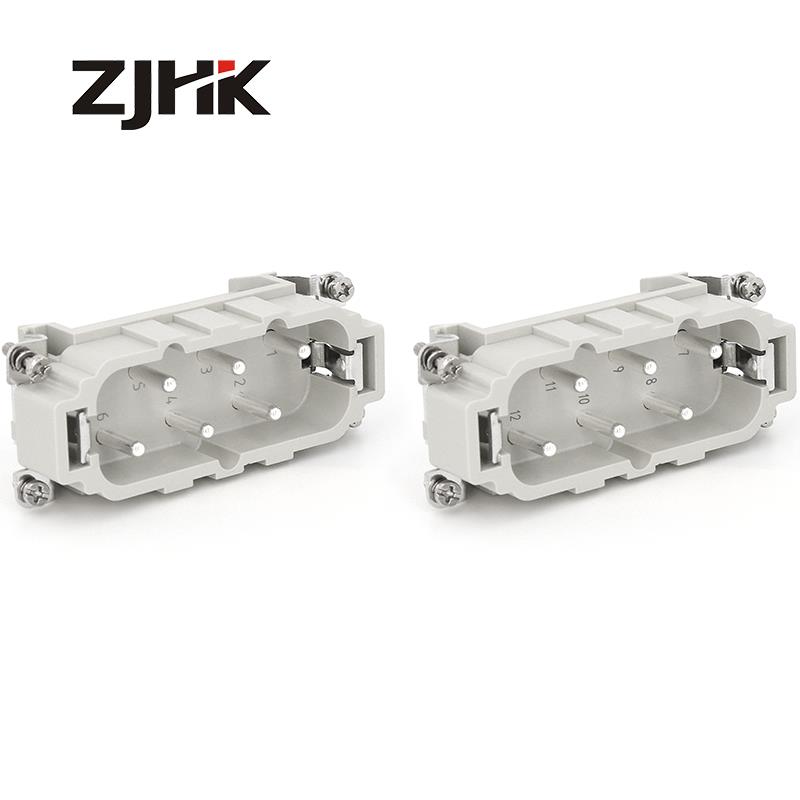

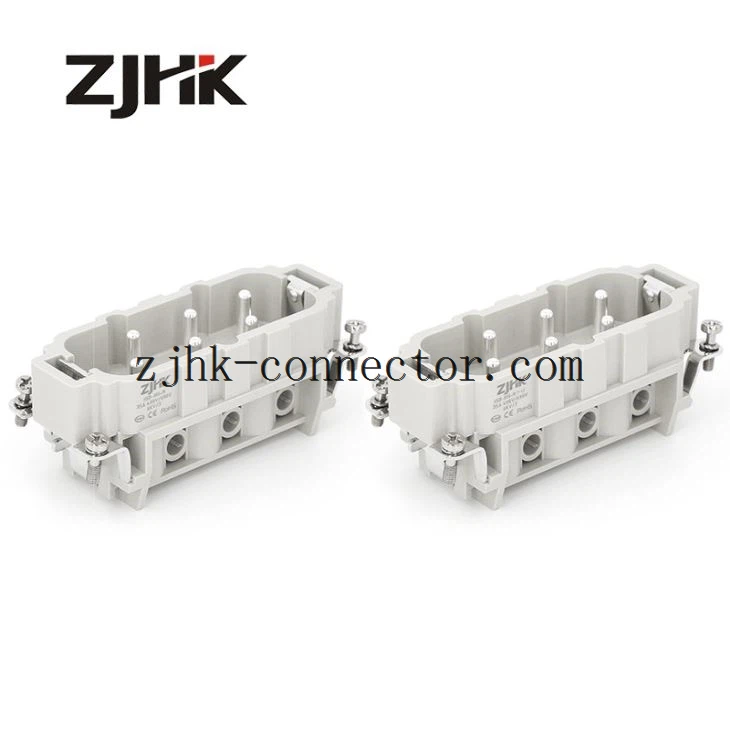

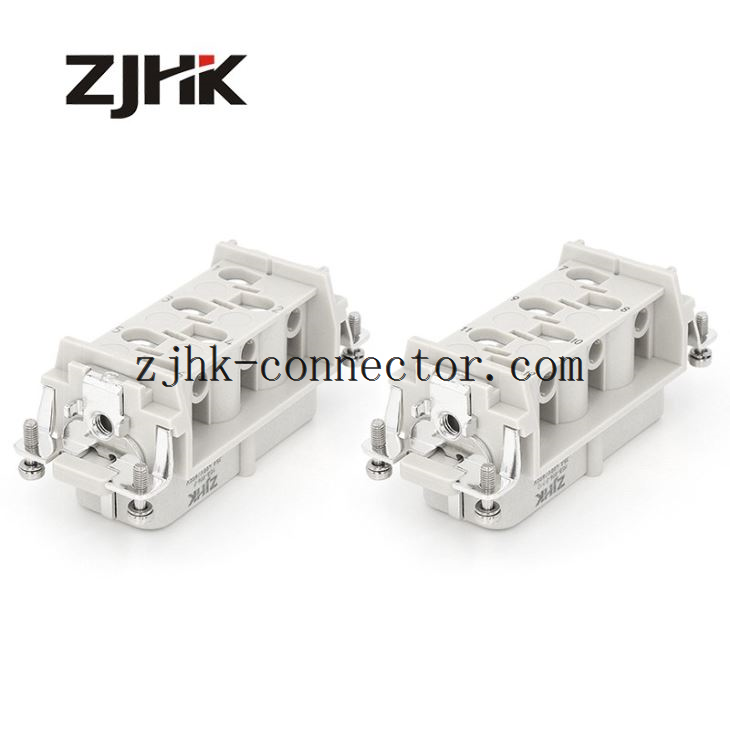

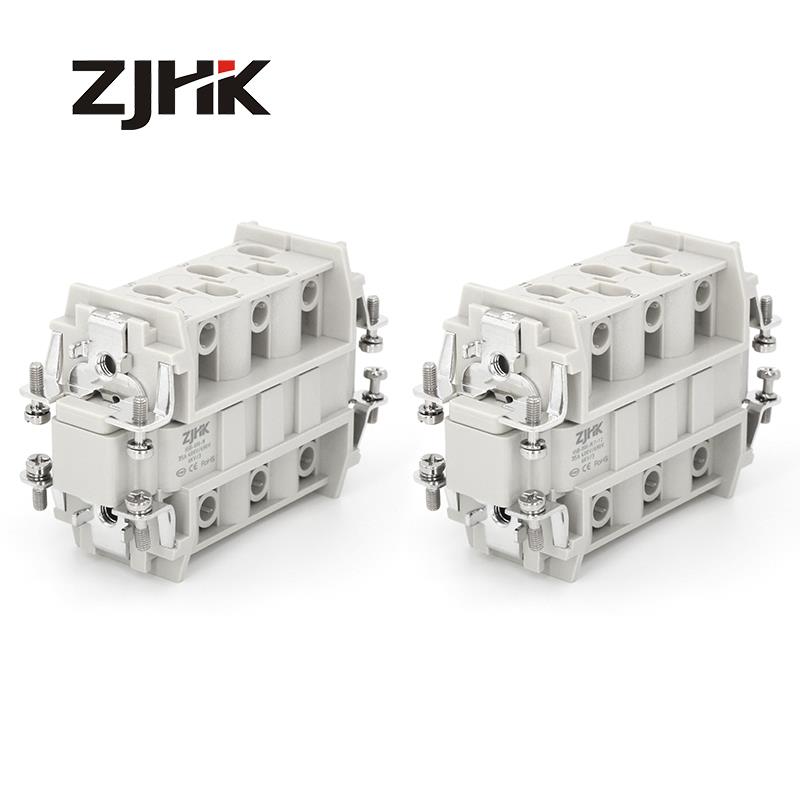

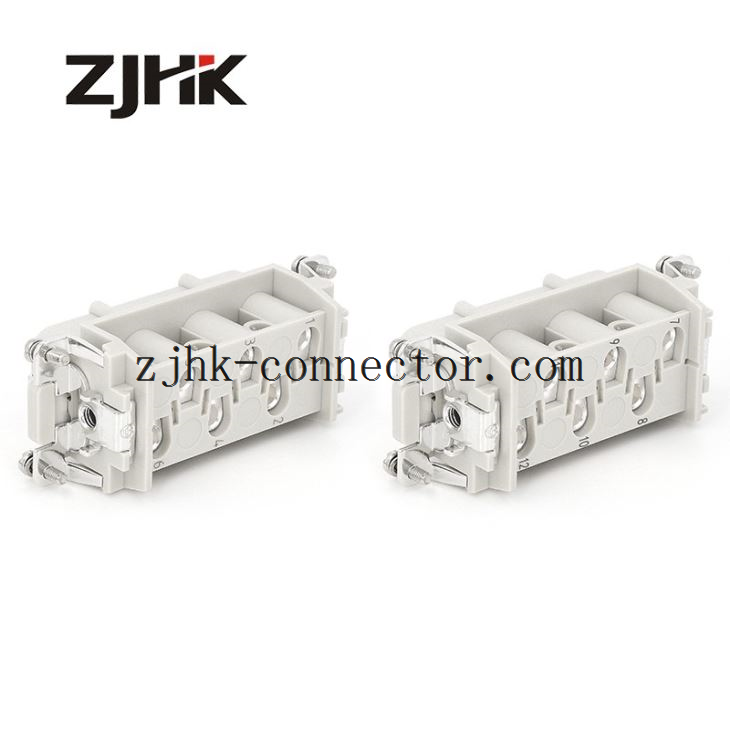

HSB High Current Insert, 12(6x2) + PE, 35A, 690/400V, Male&Female,Screw Terminal
· Product Code: HSB-012-M and HSB-012-F
· Availability: 3000pcs In Stock
Item | Data |
Inserts | Matching H32B Hoods&Housings |
Test standard | DIN EN61 984 / UL1977 |
PIN | 12P+PE |
Rated voltage | 500[V] |
Rated current | 35 [A] |
pollution degree | 3 |
Rated impulse voltage | 6 [KV] |
Insulation resistance | ≥1010Ω |
UL/CSARated current | 600 [V] |
Material | Polycarbonate |
Inflammability class(UL94) | V-0 |
Ambient temperature | -40~+125 [℃] |
Mechanical working life(mating cycles) | ≥500 |
Contacts |
|
Material | Copper alloy |
Surface of contacts | Silver plated |
Contact resistance | ≤1mΩ |
Terminal version | Screw terminal |
Rated torque | 1.2 [N·m] |
Rated connection capacity(solid/stranded) | 6mm² (AWG10) |
Screw | M4, (Steel，Ni plated ) |
Wire connecting | |
Recommended stripping length 7.5mm; | |
For solid wire, stripping wire to the appointed length, then tightening with rated torque. | |
For stranded wire: stripping wire to the appointed length, mating with corresponding type of ferrule, then tightening with rated torque. | |
Tightening process should be steady, can’t use explosive force. | |
More details
Field of application
Haoke Heavy Duty Connector with rich product series are used wherever there is a need for a secure, simple and time -saving assembly of machinery and facilities.
We skilled in the fields of energy and data transmission are able to contribute a great deal more and play a closely integrative role in the value creation process!
Our claim:The relentless pursuit of perfection!

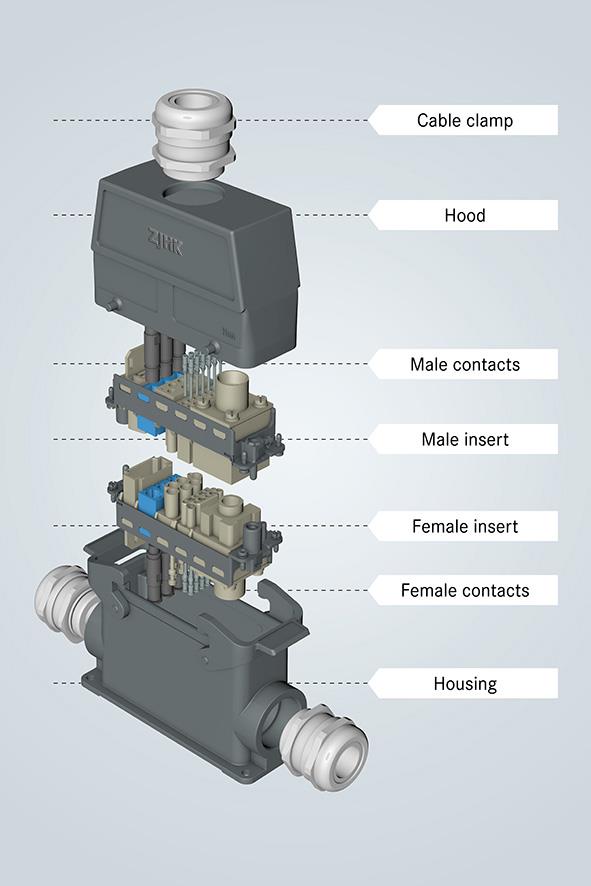

Main Components
